Parts from Asus

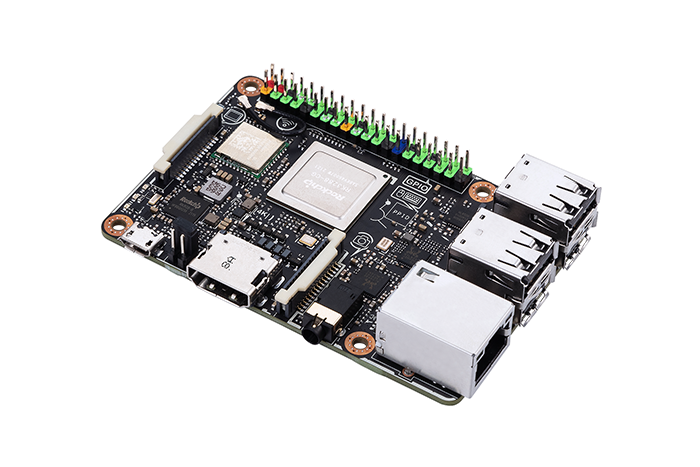

ARM-based SBC with enhanced and better compatibility Performance The Tinker Board S R2.0 series boasts a modern and robust quad-core ARM-based processor, the Rockchip RK3288-CG.W, which delivers superior performance compared to other widely used single-board computer (SBC) boards. Moreover, the board is equipped with an ARM-based Mali-T764 GPU and fixed-function processors, which enable a broad spectrum of applications, including high-fidelity media playback, gaming, computer vision, gesture recognition, image stabilization and processing, computational photography, and many others. HD Audio Quality The Tinker Board S R2.0 series comes with an HD codec that facilitates audio of up to 24-bit/192kHz. Furthermore, the board's integrated audio jack supports both audio output and microphone input, eliminating the need for an extension module. The audio jack is designed to detect plug-ins automatically, thus enabling seamless switching of audio output to a speaker or headset upon connection. Standard Interface for IoT Connectivity The Tinker Board S R2.0 series provides standard maker connectivity options, such as a 40-pin GPIO interface that facilitates interfacing with various inputs. The board is also equipped with a DSI MIPI connection for displays and touchscreens, as well as a secondary CSI MIPI connection that enables connection to compatible cameras, allowing for computer vision and other applications. Moreover, the Tinker Board S R2.0 series includes Gbit LAN for seamless Internet and network connectivity. A dedicated bus resource ensures consistent Ethernet performance. The board's integrated Wi-Fi and Bluetooth controller are shielded with a metal cover to minimize interference and enhance radio performance. The inclusion of an integrated IPEX antenna header enables hassle-free antenna replacement or upgrades. In addition, the Tinker Board S R2.0 series features a full-size HDMI output, along with four USB 2.0 ports that allow for extensive peripheral and accessory connectivity. Technical Specifications CPU - Rockchip Quad-Core RK3288-CG.W processor Memory - 2GB Dual Channel DDR3 Graphic - Integrated Graphics Processor ARM Mali-T764 GPU Storage - 16GB eMMC Micro SD(TF) card slot LAN - RTL GB LAN Wireless Data Network - 802.11 b/g/n, Bluetooth V4.2 + EDR Audio - RTL ALC4030U CODEC USB Ports - 4 x USB 2.0 Internal I/O Ports - 1x40-pin headers: - Up to 28 x GPIO pins - up to 2 x SPI bus - up to 2 x I2C bus - up to 4 x UART - up to 2 x PWM - up to 1 x PCM/I2S - 2 x 5V power pins - 2 x 3.3V power pins - 8 x ground pins 1x2-pin contact pin: - 1 x PWM - 1 x S/PDIF 1x15-pin MIPI DSI 1x15-pin MIPI CSI Accessories - Passive heatsink, User manual Form Factor - 3.37 inch x 2.125 (8.55 cm x 5.4 cm) Weight - 55g Environment - Operation temperature: 0℃ ~ 60℃, Non operation temperature: -40℃ ~ 85℃, Non operation humidity: 0% ~ 85% (Non condensing) OS Support - Debian 10 / Android 11

Datasheet
