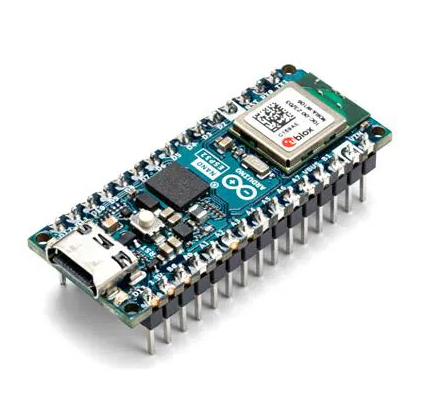

ABX00083

Arduino

Part Number: ABX00083

Inventory

Distributor SKU Stock Cost
DigiKey 1050-ABX00083-ND 162 $21.00 Buy
Mouser Electronics 782-ABX00083 934 $20.90 Buy
AVNET Express ABX00083 $19.54 Buy
Newark ABX00083 4 $20.44 Buy
element14 APAC ABX00083 24 * $20.52 Buy
Farnell ABX00083 5 * $20.36 Buy
Description

DEVELOPMENT BOARD, 32BIT, XTENSA LX7;

Key Features:

  • Tiny footprint: Designed with the well-known Nano form factor in mind, this board's compact size makes it perfect for embedding in standalone projects.
  • Wi-Fi and Bluetooth: Harness the power of the ESP32-S3 microcontroller, well-known in the IoT realm, with full Arduino support for wireless and Bluetooth connectivity.
  • Arduino and MicroPython support: Seamlessly switch between Arduino and MicroPython programming with a few simple steps. Arduino even offer an introductory course for those new to the MicroPython world.
  • Arduino IoT Cloud compatible: Quickly and easily create IoT projects with just a few lines of code. Our setup takes care of security, allowing you to monitor and control your project from anywhere using the Arduino IoT Cloud app. (Available starting August 2023)
  • HID support: Emulate human interface devices, such as keyboards or mice, over USB, opening up new possibilities for interacting with your computer.

Tech Specs:

Board Name Arduino® Nano ESP32 with headers
SKU ABX00083
Microcontroller u-blox® NORA-W106 (ESP32-S3)
USB connector USB-C®
Pins Built-in LED Pin 13
Built-in RGB LED pins 14-16
Digital I/O Pins 14
Analog input pins 8
PWM pins 5
External interrupts All digital pins
Connectivity Wi-Fi® u-blox® NORA-W106 (ESP32-S3)
Bluetooth® u-blox® NORA-W106 (ESP32-S3)
Communication UART 2x
I2C 1x, A4 (SDA), A5 (SCL)
SPI D11 (COPI), D12 (CIPO), D13 (SCK). Use any GPIO for Chip Select (CS)
Power I/O Voltage 3.3 V
Input voltage (nominal) 6-21 V
Source Current per I/O Pin 40 mA
Sink Current per I/O Pin 28 mA
Clock speed Processor up to 240 MHz
Memory ROM 384 kB
SRAM 512 kB
External Flash 128 Mbit (16 MB)
Dimensions Width 18 mm
Length 45 mm
