MAX14916AFM+

Analog Devices Inc.

Part Number: MAX14916AFM+

Inventory

Distributor SKU Stock Cost
Mouser Electronics 700-MAX14916AFM+ 911 $10.99 Buy
element14 APAC MAX14916AFM+ 1655 * $11.66 Buy
AVNET Express MAX14916AFM+ $5.97 Buy
Win Source MAX14916AFM+ 10 Buy
Newark MAX14916AFM+ 2224 $8.21 Buy
Farnell MAX14916AFM+ 1655 * $11.15 Buy
Analog Devices Inc MAX14916AFM+ $5.65 Buy
Description

Power Switch ICs - Power Distribution Industrial Octal High Side Driver with Diagnostics

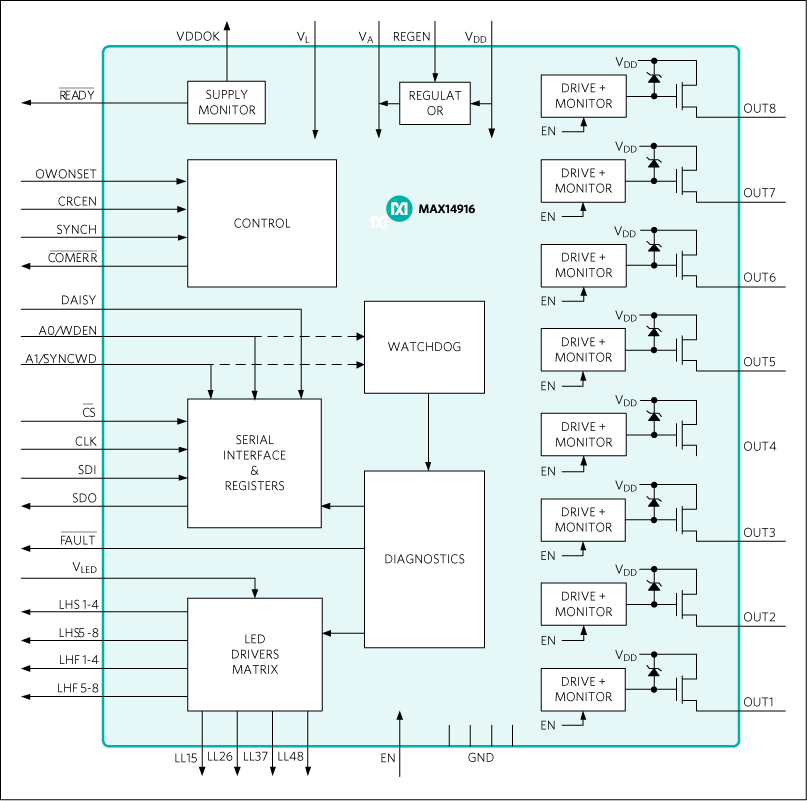

MAX14916/MAX14916A Switches

Features:

  • MAX14916 current limit: 1.1 A (min) or 1.38 A (typ)
  • MAX14916A current limit: 1.5 A (min) or 2 A (typ)
  • Robustness and smart diagnostics
    • 65 V absolute maximum supply range
    • Internal clamps for fast inductive load demagnetization
    • CRC error checking on the SPI
    • Watchdog timer
    • Open-wire detection with switches both in ON and OFF states
    • Undervoltage detection with UVLO
    • Loss of VDD or GND protection
    • Thermal shutdown protection
    • Integrated ±1 kV/42 Ω IEC61000-4-5 surge protection
    • -40°C to +125°C operating ambient temperature
  • Reduces power and heat dissipation
    • 250 mΩ (max) on-resistance at TA = +125°C
    • 2 mA (typ) supply current
    • Accurate output current limiting
  • Flexibility
    • Addressable SPI reduces isolation cost
    • SYNCH input for simultaneous update of switches
    • LED driver matrix for 16 LEDs, powered by 24 V, 5 V, or 3.3 V
    • Flexible logic voltage interface from 2.5 V to 5.5 V
  • Compact 6 mm x 6 mm QFN package

Applications:

  • Industrial digital outputs
  • PLC systems
