Description

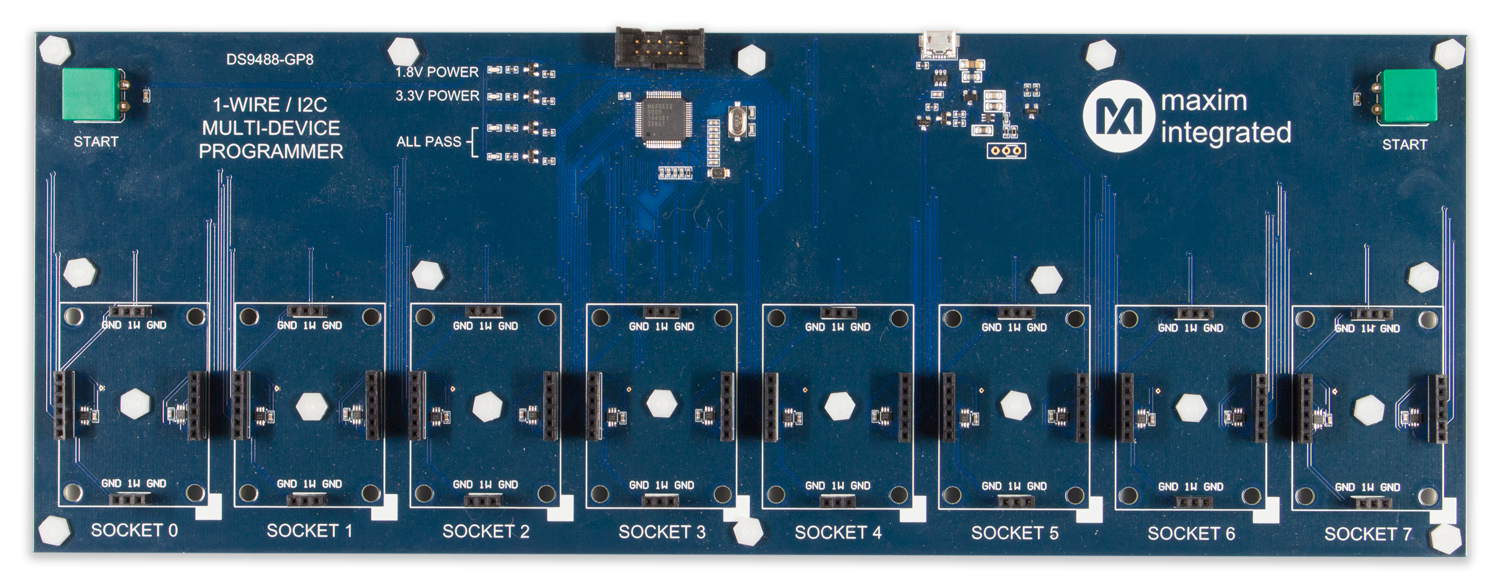

DS9488-GP8 DescriptionThe DS9488-GP8 multi-device programmer for 1-Wire® and I2C devices simultaneously programs up to 8 devices that use the 1-Wire or I2C bus programming interface. A variety of DS9122 series socket adapters, sold separately, allows the DS9488-GP8 programmer to support multiple IC types. Software plugins for every supported device are quickly and easily installed.Configuration settings allow access to device-specific features such as memory protection, read/write permissions, authentication, etc. These can be store as a configuration profile and automatically loaded in subsequent programming sessions.A USB interface connects the programmer to any computer. A convenient Windows® application allows for easyoperation of the programmer.Available socket adapters allow the DS9488-GP8 to program a variety of Maxim devices. The Ordering Information lists the socket adapters and the devices they support.DS9488-GP8 FeaturesPrograms Up to 8 Devices in a Single SessionMultiple Devices Supported by One ProgrammerSocket Adapters Available for Most DevicesEasily Add Support for New DevicesIntuitive Windows Application Reduces Learning TimeStandard USB Interface Connects to Any ComputerNotes:The DS9488-GP8 requires DS9122 socket adapters that are sold separatelyDS9488-GP8 software component for supported Secure Authenticator devices is available under NDADS9122 DescriptionThe DS9122 socket adapters are used in conjunction with the DS9488-GP8 to program a subset of Maxim's 1-Wire® and I2C Secure Authenticator devices simultaneously.The socket adapters employ ESD-sensitive components and LED status indicators to identify pass/fail status of individual devices. Depending on the device(s) to be programmed, a specific DS9122 adapter part number is required.Additional descriptions are detailed in the data sheet.DS9122 FeaturesEnable Programming of Up to 8 Devices In a Single Session Status LEDs Provide Immediate Pass/Fail ConfirmationDS9122P: Dual 6-pin TSOC Socket Adapter for DS2431P, DS28E15P, DS28E22P, DS28E25PDS9122Q: 6-pin TDFN Socket Adapter for DS2431Q, DS28E15Q, DS28E22Q, DS28E25Q
