The MAX9918/MAX9919/MAX9920 are single-supply, high-accuracy current-sense amplifiers with a high input common-mode range that extends from -20V to +75V. These amplifiers are well suited for current monitoring of inductive loads such as motors and solenoids, where common-mode voltages can become negative due to inductive kickback, reverse-battery conditions, or transient events.The MAX9918/MAX9920 feature adjustable gain set by an external resistive-divider network. The MAX9919 features fixed gains of 45V/V (MAX9919F) and 90V/V (MAX9919N). The MAX9918/MAX9919/MAX9920 operate as unidirectional amplifiers when VREFIN = GND and as bidirectional amplifiers when VREFIN = VCC/2. The MAX9920 attenuates the input signal by a factor of 4 at the input level-shifting stage allowing the device to sense voltages up to 200mV (unidirectional operation) or ±100mV (bidirectional operation).The MAX9918/MAX9919/MAX9920 operate with a single 5V supply voltage, are fully specified over the -40°C to +125°C automotive temperature range, and are available in an 8-pin SOIC package.ApplicationsAutomotiveCurrent Monitoring of Inductive LoadsH-Bridge Motor Current SensingHigh- and Low-Side Precision Current SensingPrecision High-Voltage Current MonitoringSolenoid Current SensingSuper-Capacitor Charge/Discharge Monitoring

The MAX9918/MAX9919/MAX9920 are single-supply, high-accuracy current-sense amplifiers with a high input common-mode range that extends from -20V to +75V. These amplifiers are well suited for current monitoring of inductive loads such as motors and solenoids, where common-mode voltages can become negative due to inductive kickback, reverse-battery conditions, or transient events.The MAX9918/MAX9920 feature adjustable gain set by an external resistive-divider network. The MAX9919 features fixed gains of 45V/V (MAX9919F) and 90V/V (MAX9919N). The MAX9918/MAX9919/MAX9920 operate as unidirectional amplifiers when VREFIN = GND and as bidirectional amplifiers when VREFIN = VCC/2. The MAX9920 attenuates the input signal by a factor of 4 at the input level-shifting stage allowing the device to sense voltages up to 200mV (unidirectional operation) or ±100mV (bidirectional operation).The MAX9918/MAX9919/MAX9920 operate with a single 5V supply voltage, are fully specified over the -40°C to +125°C automotive temperature range, and are available in an 8-pin SOIC package.ApplicationsAutomotiveCurrent Monitoring of Inductive LoadsH-Bridge Motor Current SensingHigh- and Low-Side Precision Current SensingPrecision High-Voltage Current MonitoringSolenoid Current SensingSuper-Capacitor Charge/Discharge Monitoring

The MAX9918/MAX9919/MAX9920 are single-supply, high-accuracy current-sense amplifiers with a high input common-mode range that extends from -20V to +75V. These amplifiers are well suited for current monitoring of inductive loads such as motors and solenoids, where common-mode voltages can become negative due to inductive kickback, reverse-battery conditions, or transient events.The MAX9918/MAX9920 feature adjustable gain set by an external resistive-divider network. The MAX9919 features fixed gains of 45V/V (MAX9919F) and 90V/V (MAX9919N). The MAX9918/MAX9919/MAX9920 operate as unidirectional amplifiers when VREFIN = GND and as bidirectional amplifiers when VREFIN = VCC/2. The MAX9920 attenuates the input signal by a factor of 4 at the input level-shifting stage allowing the device to sense voltages up to 200mV (unidirectional operation) or ±100mV (bidirectional operation).The MAX9918/MAX9919/MAX9920 operate with a single 5V supply voltage, are fully specified over the -40°C to +125°C automotive temperature range, and are available in an 8-pin SOIC package.ApplicationsAutomotiveCurrent Monitoring of Inductive LoadsH-Bridge Motor Current SensingHigh- and Low-Side Precision Current SensingPrecision High-Voltage Current MonitoringSolenoid Current SensingSuper-Capacitor Charge/Discharge Monitoring

The MAX9922/MAX9923 ultra-precision, high-side current-sense amplifiers feature ultra-low offset voltage (VOS) of 25µV (max) and laser-trimmed gain accuracy better than 0.5%. The combination of low VOS and high-gain accuracy allows precise current measurements even at very small sense voltages.The MAX9922/MAX9923 are capable of both unidirectional and bidirectional operation. For unidirectional operation, connect REF to GND. For bidirectional operation, connect REF to VDD/2.The MAX9922 has adjustable gain set with two external resistors. The MAX9923T/MAX9923H/MAX9923F use an internal laser-trimmed resistor for fixed gain of 25V/V, 100V/V, and 250V/V, respectively. The devices operate from a +2.85V to +5.5V single supply, independent of the input common-mode voltage, and draw only 700µA operating supply current and less than 1µA in shutdown.The +1.9V to +28V current-sense input common-mode voltage range makes the MAX9922/MAX9923 ideal for current monitoring in applications where high accuracy, large common-mode measurement range, and minimum full-scale VSENSE voltage is critical.The MAX9922/MAX9923 use a spread-spectrum autozeroing technique that constantly measures and cancels the input offset voltage, eliminating drift over time and temperature, and the effect of 1/f noise. This, in conjunction with the indirect current-feedback technique, achieves less than 25µV (max) offset voltage.The MAX9922/MAX9923 are available in a small 10-pin µMAX® package and are specified over the -40°C to +85°C extended temperature range.ApplicationsHandheld Li+ Battery Current MonitoringNotebook/Desktop Power ManagementPrecision Current Sources

The MAX9934 high-precision, low-voltage, high-side current-sense amplifier is ideal for both bidirectional (charge/discharge) and unidirectional current measurements in battery-powered portable and laptop devices. Input offset voltage (VOS) is a low 10µV (max) at +25°C across the -0.1V to 5.5V input common-mode voltage range, and is independent of VCC. Its precision input specification allows the use of very small sense-voltages (typically ±10mV full-scale) for minimally invasive current sensing.The output of the MAX9934 is a current proportional to input VSENSE and is available in either 25µA/mV or 5µA/mV gain options (GM) with gain accuracy better than 0.25% (max) at +25°C. A chip select (CS) allows multiplexing of several MAX9934 current outputs to a single microcontroller ADC channel (see the Typical Operating Circuit). CS is compatible with 1.8V and 3.3V logic systems.The MAX9934 is designed to operate from a 2.5V to 3.6V VCC supply, and draws just 120µA (typ) quiescent current. When powered down (VCC = 0V), RS+ and RS- draw less than 0.1nA (typ) leakage current to reduce battery load. The MAX9934 is robust and protected from input faults of up to ±6V input differential voltage between RS+ and RS-.The MAX9934 is specified for operation over the -40°C to +125°C temperature range and is available in 8-pin µMAX® or a 6-bump UCSP™ (1mm x 1.5mm x 0.6mm), making it ideal for space-sensitive applications.ApplicationsMP3 PlayersNotebook PCs and Ultra-Mobile PCsPDAs and SmartphonesPortable Current MonitoringSensor Instrumentation Amplifiers

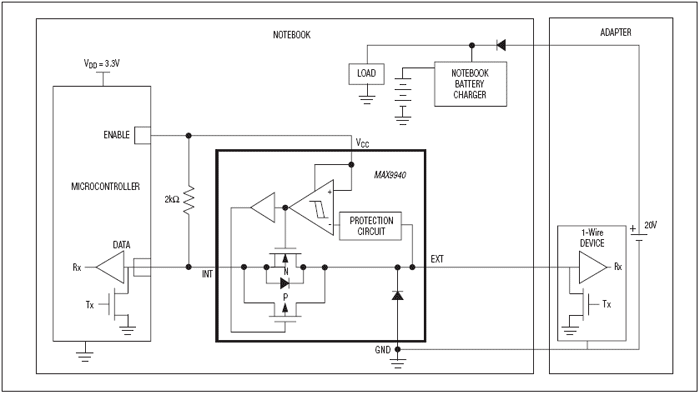

The MAX9940 signal-line overvoltage protector for low-voltagedigital communication ports provides protectionagainst high-voltage faults and ESD strikes. TheMAX9940 is especially useful for sensitive communicationprotocols such as Maxim 1-Wire® that cannotafford standard means of fault protection, such as largeseries resistors or large line capacitances.The MAX9940 operates from a single supply voltage of+2.2V to +5.5V and consumes only 13µA of quiescentsupply current. The EXT port is protected up to 28V.The device features a reaction time of 60ns for fastaction during fault conditions and operates over the-40°C to +125°C automotive temperature range.ApplicationsIndustrial EquipmentNotebook ComputersPortable Devices

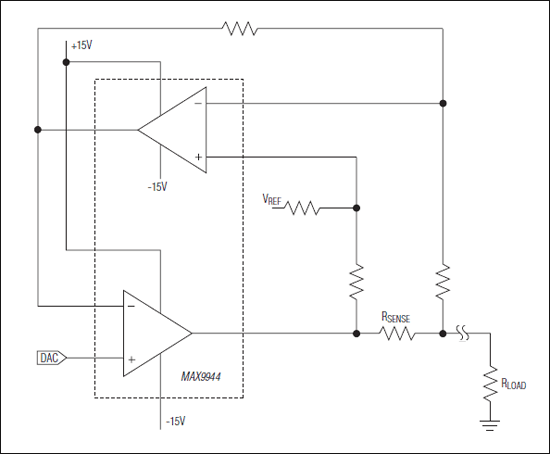

The MAX9943/MAX9944 is a family of high-voltage amplifiers that offers precision, low drift, and low power consumption. The MAX9943 (single) and MAX9944 (dual) op amps offer 2.4MHz of gain-bandwidth product with only 550µA of supply current per amplifier.The MAX9943/MAX9944 family has a wide power supply range operating from ±3V to ±19V dual supplies or a 6V to 38V single supply. The MAX9943/MAX9944 are ideal for sensor signal conditioning, high-performance industrial instrumentation and loop-powered systems (e.g., 4mA–20mA transmitters).The MAX9943 is offered in a space-saving 6-pin TDFN or 8-pin µMAX® package. The MAX9944 is offered in an 8-pin SO or an 8-pin TDFN package. These devices are specified over the -40°C to +125°C automotive temperature range.ApplicationsAmplifiersAutomatic Test Equipment (ATE)Displays: Industrial, Front Panel, and InstrumentationHigh-Performance ADC/DAC Input/OutputHigh-Voltage ATEIndustrial InstrumentationIndustrial: Process Measurement and ControlLoop-Powered SystemsPanel MetersPower MetersProgrammable Logic Controllers (PLCs)Sensor Interfaces

The MAX9943/MAX9944 is a family of high-voltage amplifiers that offers precision, low drift, and low power consumption. The MAX9943 (single) and MAX9944 (dual) op amps offer 2.4MHz of gain-bandwidth product with only 550µA of supply current per amplifier.The MAX9943/MAX9944 family has a wide power supply range operating from ±3V to ±19V dual supplies or a 6V to 38V single supply. The MAX9943/MAX9944 are ideal for sensor signal conditioning, high-performance industrial instrumentation and loop-powered systems (e.g., 4mA–20mA transmitters).The MAX9943 is offered in a space-saving 6-pin TDFN or 8-pin µMAX® package. The MAX9944 is offered in an 8-pin SO or an 8-pin TDFN package. These devices are specified over the -40°C to +125°C automotive temperature range.ApplicationsAmplifiersAutomatic Test Equipment (ATE)Displays: Industrial, Front Panel, and InstrumentationHigh-Performance ADC/DAC Input/OutputHigh-Voltage ATEIndustrial InstrumentationIndustrial: Process Measurement and ControlLoop-Powered SystemsPanel MetersPower MetersProgrammable Logic Controllers (PLCs)Sensor Interfaces

The MAX9943/MAX9944 is a family of high-voltage amplifiers that offers precision, low drift, and low power consumption. The MAX9943 (single) and MAX9944 (dual) op amps offer 2.4MHz of gain-bandwidth product with only 550µA of supply current per amplifier.The MAX9943/MAX9944 family has a wide power supply range operating from ±3V to ±19V dual supplies or a 6V to 38V single supply. The MAX9943/MAX9944 are ideal for sensor signal conditioning, high-performance industrial instrumentation and loop-powered systems (e.g., 4mA–20mA transmitters).The MAX9943 is offered in a space-saving 6-pin TDFN or 8-pin µMAX® package. The MAX9944 is offered in an 8-pin SO or an 8-pin TDFN package. These devices are specified over the -40°C to +125°C automotive temperature range.ApplicationsAmplifiersAutomatic Test Equipment (ATE)Displays: Industrial, Front Panel, and InstrumentationHigh-Performance ADC/DAC Input/OutputHigh-Voltage ATEIndustrial InstrumentationIndustrial: Process Measurement and ControlLoop-Powered SystemsPanel MetersPower MetersProgrammable Logic Controllers (PLCs)Sensor Interfaces

The MAX9945 operational amplifier features an excellent combination of low operating power and low input voltage noise. In addition, MOS inputs enable the MAX9945 to feature low input bias currents and low input current noise. The device accepts a wide supply voltage range from 4.75V to 38V and draws a low 400µA quiescent current. The MAX9945 is unity-gain stable and is capable of rail-to-rail output voltage swing.The MAX9945 is ideal for portable medical and industrial applications that require low noise analog front-ends for performance applications such as photodiode transimpedance and chemical sensor interface circuits.The MAX9945 is available in both an 8-pin µMAX® and a space-saving, 6-pin TDFN package, and is specified over the automotive operating temperature range (-40°C to +125°C).ApplicationsActive Filters and Signal ProcessingAutomatic Test Equipment (ATE)Chemical Sensor InterfaceDisplays: Industrial, Front Panel, and InstrumentationHigh-Performance Audio Line OutIndustrial Sensors and InstrumentationIndustrial: Process Measurement and ControlMedical Pulse OximetryPanel MetersPhotodiode Sensor InterfacePower MetersProgrammable Logic Controllers (PLCs)

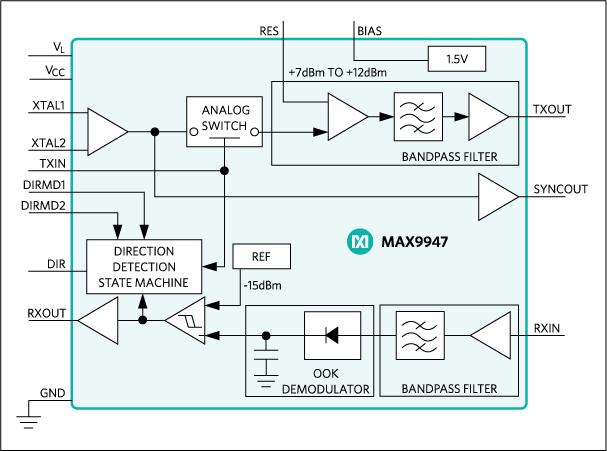

The MAX9947 is an AISG-compliant, fully integrated transceiver.The MAX9947 receiver offers a typical dynamic range of 20dB and integrates a bandpass filter that operates in the 2.176MHz frequency with a narrow 200kHz bandwidth.The MAX9947 transmitter integrates a bandpass filter that is compliant with the AISG spectrum emission profile. It can modulate OOK signals up to 115.2kbps. The output power can be varied with external resistors from +7dBm to +12dBm to compensate for loss in the external circuitry and cabling.The MAX9947 also features a direction output to facilitate the RS-485 bus arbitration in tower-mounted equipment.The MAX9947 is available in a small, 3mm x 3mm 16-pin TQFN and is rated for operation in the -40°C to +105°C temperature range.ApplicationsBase StationsTower Equipment

DeepCover® embedded security solutions cloak sensitive data under multiple layers of advanced physical security to provide the most secure key storage possible. The DeepCover Secure Microcontroller (MAXQ1850) is a low-power, 32-bit RISC device designed for electronic commerce, banking, and data security systems. It combines high-performance, single-cycle processing, sophisticated tamper-detection technology, and advanced cryptographic hardware to provide industry-leading data security and secret key protection.Physical security mechanisms include environmental sensors that detect out of range voltage or temperature conditions, responding with rapid zeroization of critical data. Four self-destruct inputs are provided for additional tamper response. An internal shield over the silicon provides protection from microprobe attacks. A high-speed internal ring oscillator is provided to thwart attacks that rely on controlling the clock rate of the chip. To protect data, the MAXQ1850 integrates several high-speed, analysis-resistant encryption engines. Algorithms supported in hardware include AES (128-, 192-, and 256-bit), DES, triple DES (2-key and 3-key), ECDSA (160-, 192-, and 256-bit keys), DSA, RSA (up to 2048 bits), SHA-1, SHA-224, and SHA-256. The advanced security features of the MAXQ1850 are designed to meet the stringent requirements of regulations such as ITSEC E3 High, FIPS 140-2 Level 3, and the Common Criteria certifications.The MAXQ1850 includes 256KB of flash memory and 8KB of secure, battery-backed data SRAM. Several communication protocols are supported with hardware engines, including ISO 7816 for smart card applications, USB (slave interface with four end-point buffers), an RS-232 universal synchronous/asynchronous receiver-transmitter (USART), an SPI interface (master or slave mode support), and up to 16 general-purpose I/O pins. Other peripherals supported on the MAXQ1850 include a true hardware random-number generator (RNG), a real-time clock (RTC), a programmable watchdog timer, and flexible 16-bit timers that support capture, compare, and pulse-width modulation (PWM) operations.Note: Designers must have following documents to fully use all the features of this device. This data sheet contains pin descriptions, feature overviews, and electrical specifications. Errata sheets contain deviations from published specifications. The user's guides offer detailed information about device features and operation. MAXQ1850 IC data sheet MAXQ1850 revision-specific errata sheet (Click here for availability) MAXQ® Family User's Guide MAXQ Family User's Guide: MAXQ1850 Supplement (contact BU for availability)ApplicationsATM KeyboardsCertificate AuthenticationElectronic CommerceElectronic Signature GeneratorEMV® BankingPay-per-PlayPCI TerminalsPIN PadsSecure Access ControlSecure Data Storage

DeepCover® embedded security solutions cloak sensitive data under multiple layers of advanced physical security to provide the most secure key storage possible. The DeepCover Secure Microcontroller (MAXQ1850) is a low-power, 32-bit RISC device designed for electronic commerce, banking, and data security systems. It combines high-performance, single-cycle processing, sophisticated tamper-detection technology, and advanced cryptographic hardware to provide industry-leading data security and secret key protection.Physical security mechanisms include environmental sensors that detect out of range voltage or temperature conditions, responding with rapid zeroization of critical data. Four self-destruct inputs are provided for additional tamper response. An internal shield over the silicon provides protection from microprobe attacks. A high-speed internal ring oscillator is provided to thwart attacks that rely on controlling the clock rate of the chip. To protect data, the MAXQ1850 integrates several high-speed, analysis-resistant encryption engines. Algorithms supported in hardware include AES (128-, 192-, and 256-bit), DES, triple DES (2-key and 3-key), ECDSA (160-, 192-, and 256-bit keys), DSA, RSA (up to 2048 bits), SHA-1, SHA-224, and SHA-256. The advanced security features of the MAXQ1850 are designed to meet the stringent requirements of regulations such as ITSEC E3 High, FIPS 140-2 Level 3, and the Common Criteria certifications.The MAXQ1850 includes 256KB of flash memory and 8KB of secure, battery-backed data SRAM. Several communication protocols are supported with hardware engines, including ISO 7816 for smart card applications, USB (slave interface with four end-point buffers), an RS-232 universal synchronous/asynchronous receiver-transmitter (USART), an SPI interface (master or slave mode support), and up to 16 general-purpose I/O pins. Other peripherals supported on the MAXQ1850 include a true hardware random-number generator (RNG), a real-time clock (RTC), a programmable watchdog timer, and flexible 16-bit timers that support capture, compare, and pulse-width modulation (PWM) operations.Note: Designers must have following documents to fully use all the features of this device. This data sheet contains pin descriptions, feature overviews, and electrical specifications. Errata sheets contain deviations from published specifications. The user's guides offer detailed information about device features and operation. MAXQ1850 IC data sheet MAXQ1850 revision-specific errata sheet (Click here for availability) MAXQ® Family User's Guide MAXQ Family User's Guide: MAXQ1850 Supplement (contact BU for availability)ApplicationsATM KeyboardsCertificate AuthenticationElectronic CommerceElectronic Signature GeneratorEMV® BankingPay-per-PlayPCI TerminalsPIN PadsSecure Access ControlSecure Data Storage

The MAXQ612/MAXQ622 are low-power, 16-bit MAXQ® microcontrollers designed for low-power applications including universal remote controls, consumer electronics, and white goods. Both devices use a low-power, high-throughput, 16-bit RISC microcontroller. Serial peripherals include two universal synchronous/asynchronous receiver-transmitters (USARTs), two SPI™ master/slave communications ports, and an inter-integrated circuit (I²C) bus. The devices also incorporate an IR module with carrier frequency generation and flexible port I/O capable of multiplexed keypad control. The MAXQ622 adds a universal serial bus (USB) with integrated physical interface (PHY).The MAXQ612/MAXQ622 include 128KB of flash memory and 6KB of data SRAM. Intellectual property (IP) protection is provided by a secure memory management unit (MMU) that supports multiple application privilege levels and protects code against copying and reverse engineering. Privilege levels enable vendors to provide libraries and applications to execute on the MAXQ612/MAXQ622, while limiting access to only data and code allowed by their privilege level.For the ultimate in low-power battery-operated performance, the devices include an ultra-low-power stop mode (0.3µA typical). In this mode, the minimum amount of circuitry is powered. Wake-up sources include external interrupts, the power-fail interrupt, and a timer interrupt. The microcontroller runs from a wide operating voltage of 1.70V to 3.6V, and can also be powered from the USB.Designers must have the following documents to fully use all the features of this device. The data sheet contains pin descriptions, feature overviews, and electrical specifications. Errata sheets contain deviations from published specifications. The user's guides offer detailed information about device features and operation. MAXQ612/MAXQ622 IC data sheet MAXQ612/MAXQ622 revision-specific errata sheet (Click here for availability) MAXQ612/MAXQ622 User's GuideApplicationsBattery-Powered Portable EquipmentConsumer ElectronicsHome AppliancesRemote ControlsWhite Goods

The PHY1090 is a high linearity transimpedance amplifier with automatic gain control. It is designed to be used in 6G to 10Gbps fiber optic modules with PIN or APD photo detectors. The PHY1090 is optimized for applications requiring low distortion and low input referred noise including equalizer enabled applications.Applications10G PON ONU6G CPRIEqualizer-Enabled ReceiversIEEE 10GBASE-LR/LRM Receiver SystemsOC192 Telecom Systems

The PHY1097 is a transimpedance amplifier designed for use within small form factor fiber optic modules targeted at gigabit-capable passive optical network (GPON) applications. Working from a 3.3V power supply, the PHY1097 integrates a low noise transimpedance amplifier, with a typical differential transimpedance of 25kΩ, an AGC, and an output stage. An output is also provided that can be used to implement a signal strength monitor circuit. This is designed to sink or source a current equal to the photodiode current for ease of interfacing. Sensitivity of -29dBm can be achieved at 2.5Gbps using a photodiode with 0.5pF capacitance and a responsivity of 0.9A/W at a wavelength of 1490nm.The PHY1097 is available in die form for mounting on a header to create a ROSA when combined with suitable optics and photo-detector diode.ApplicationsGigabit EthernetGPON Optical Network Unit (ONU)Telecom Infrastructure OC48

The SSM2380 is a fully integrated, high efficiency, stereo, Class-D audio amplifier. It is designed to maximize performance for mobile phone applications. The application circuit requires a minimum of external components and operates from a single 2.5 V to 5.5 V supply. It is capable of delivering 2 W of continuous output power with 100 dB.Spread-spectrum pulse density modulation is used to provide lower EMI-radiated emissions compared with other Class-D architectures. An added benefit of spread-spectrum Σ-Δ modu-lation is that no synchronization (SYNC) is needed when using multiple Class-D amplifiers. For applications that require long speaker cables (>10 cm), the SSM2380 includes a user-selectable ultralow EMI emissions mode that eliminates the need for EMI filters at the Class-D outputs.The SSM2380 has a micropower shutdown mode with a typicalshutdown current of 20 nA. Shutdown is enabled by applying alogic low to the SD pin or through an optional independent channel soft shutdown via I2C.The device also includes pop-and-click suppression circuitry. Thissuppression circuitry minimizes voltage glitches at the outputduring turn-on and turn-off, reducing audible noise on activationand deactivation.The fully differential inputs of the SSM2380 provides excellentrejection of common-mode noise on the input. Input couplingcapacitors can be omitted if the dc input common-mode voltage isapproximately VDD/2.The SSM2380 is specified over the commercial temperature range(−40°C to +85°C). It has built-in thermal shutdown and outputshort-circuit protection. It is available in a 16-ball, 2 mm × 2 mmwafer level chip scale package (WLCSP).Applications Mobile phones MP3 players Portable electronics

The OP77 significantly advances the state-of-the-art in precision op amps. The OP77's outstanding fgain of 10,000,000 or more is maintained over the full ±10V output range. This exceptional gain-linearity eliminates incorrectable system nonlinearities common in previous monolithic op amps, and provides superior performance in high closed-loop-gain applications. Low intitial VOS drift and rapid stabilization time, combined with only 50mW power consumption, are significant imporvements over previous designs. These characteristics, plus the exceptional TCVOS and the low VOS of 25µV maximum, eliminates the need for VOS adjustment and increases system accuracy over temperature. PSRR of 3µV/V (110dB) and CMRR of 1.0µV/V maximum virtually eliminates errors caused by power supply drifts and common-mode signals. This combination of outstanding characteristics makes the OP77 ideally suited for high-resolution instrumentation and other tight error budget systems. The OP77 is a direct or upgrade replacement for the OP07, 05, 725, or 108A op amps. 741-types can be replaced by eliminating the VOS adjust pot.

The OP400 is the first monolithic quad operational amplifier that features OP77-type performance. Precision performance is not sacrificed with the OP400 to obtain the space and cost savings offered by quad amplifiers. The OP400 features an extremely low input offset voltage of less than 150 μV with a drift of less than 1.2 μV/°C, guaranteed over the full military temperature range. Open-loop gain of the OP400 is more than 5 million into a 10 kΩ load, input bias current is less than 3 nA, CMR is more than 120 dB, and PSRR is less than 1.8 μV/V. On-chip Zener zap trimming is used to achieve the low input offset voltage of the OP400 and eliminates the need for offset nulling. The OP400 conforms to the industry-standard quad pinout, which does not have null terminals. The OP400 features low power consumption, drawing less than 725 μA per amplifier. The total current drawn by this quad amplifier is less than that of a single OP07, yet the OP400 offers significant improvements over this industry-standard op amp. Voltage noise density of the OP400 is a low 11 nV/√Hz at 10 Hz, half that of most competitive devices. The OP400 is pin-compatible with the LM148 and LT1014 operational amplifiers and can be used to upgrade systems having these devices. The OP400 is an ideal choice for applications requiring multiple precision operational amplifiers and where low power consumption is critical.

The OP37 provides the same high performance as the OP-27, but the design is optimized for circuits with gains greater than five. This design change increases slew rate to 17V/µsec and gain-bandwidth product to 63MHz. The OP37 provides the low offset and drift of the OP07 plus higher speed and lower noise. Offsets down to 25µV and drift of 0.6µV/°C maximum make the OP37 ideal for precision instrumentation applications. Exceptionally low noise, a low 1/f noise corner frequency , and the high gain of 1.8 million, allow accurate high-gain amplification of low-level signals. The low input bias current of ±10nA and offset current of 7nA are achieved by using a bias-current-cancellation circuit.The output stage has good load driving capability. A guaranteed swing of ±10V into 600 Ohm and low output distortion make the OP37 an excellent choice for audio applications.
