Cooled Large Area Silicon APD Modules ; Module

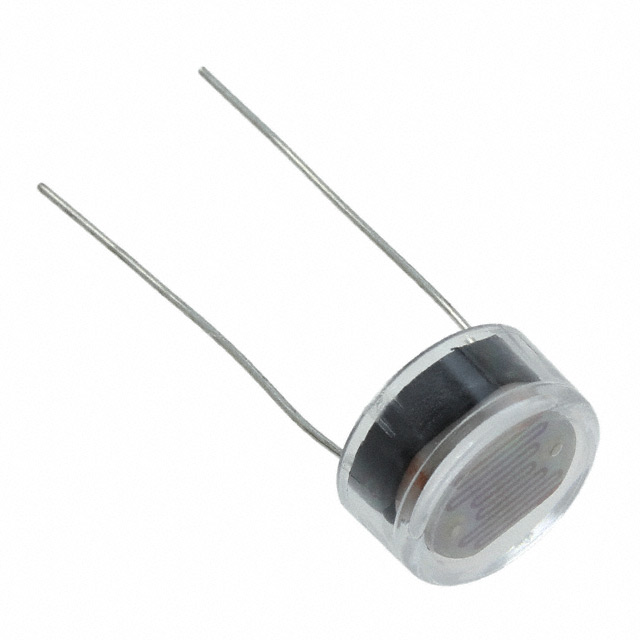

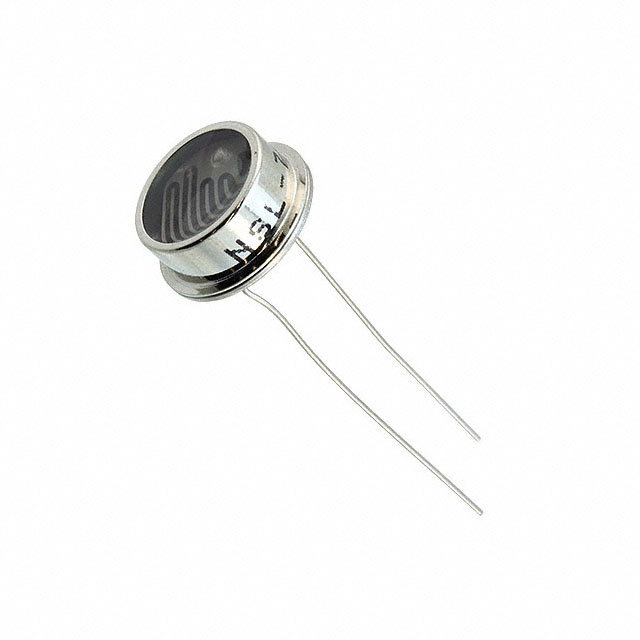

Cadmium Sulfoselenide (CdS) sensors : Leaded Ceramic Packages 0.200 x 0.169 Inches ; Illuminated Resistance

880 nm GaAlAs High Power LED Emitters ; TO-46 Package

880 nm GaAlAs High Power LED Emitters ; T-1 Package

880 nm GaAlAs High Power LED Emitters ; T-1 3/4 Package

Dual LED Oximeter Component ; Solder Contacts Ceramic Package

Dual LED Oximeter Component ; Solder Contacts Ceramic Package

Photodiode 950nm

PHOTODIODE, PLANAR CHIP; No. of Pins:1Pins; Diode Case Style:Planar; Angle of Half Sensitivity ±:60°; Dark Current:1.7µA; Operating Temperature Min:-40°C; Operating Temperature Max:125°C; MSL:-; Active Area:10.4mm²; Diode Type:Photodiode; External Depth:5.1mm; External Length / Height:2.5mm; Open Circuit Voltage:0.4V; Operating Temperature Range:-40°C to +125°C; Peak Wavelength:930nm; Sensitivity:0.55A/W; Short Circuit Current:0.5mA; Wavelength Typ:930nm

PHOTODIODE, PLANAR CHIP; No. of Pins:1Pins; Diode Case Style:Planar; Wavelength of Peak Sensitivity:-; Angle of Half Sensitivity ±:60°; Dark Current:3.3µA; Operating Temperature Min:-40°C; Operating Temperature Max:125°C; Product Range:-; Automotive Qualification Standard:-; MSL:-; Active Area:93.6mm²; Diode Type:Photodiode; External Depth:10.2mm; External Length / Height:10.2mm; Open Circuit Voltage:0.4V; Operating Temperature Range:-40°C to +125°C; Peak Wavelength:930nm; Sensitivity:0.55A/W; Short Circuit Current:4mA; Wavelength Typ:930nm

PHOTODIODE PLANAR CHIP; No. of Pins:1Pins; Diode Case Style:Planar; Wavelength of Peak Sensitivity:930nm; Angle of Half Sensitivity ±:60°; Dark Current:5µA; Operating Temperature Min:-40°C; Operating Temperature Max:125°C; Packaging:Each; Product Range:-; Automotive Qualification Standard:-; MSL:-; Active Area:45.2mm²; Breakdown Voltage Vbr:20V; Diode Type:Photodiode; External Depth:25.4mm; External Length / Height:2.5mm; Height:2.5mm; Open Circuit Voltage:0.4V; Operating Temperature Range:-40°C to +125°C; Peak Wavelength:930nm; Reverse Voltage Vr Max:20V; Sensitivity:0.55A/W; Short Circuit Current:2.3mA; Wavelength Typ:930nm

PHOTODIODE PLANAR CHIP; No. of Pins:1Pins; Diode Case Style:Planar; Wavelength of Peak Sensitivity:930nm; Angle of Half Sensitivity ±:60°; Dark Current:1.7µA; Operating Temperature Min:-40°C; Operating Temperature Max:125°C; Packaging:Each; Product Range:-; Automotive Qualification Standard:-; MSL:-; Active Area:2.7mm²; Breakdown Voltage Vbr:20V; Diode Type:Photodiode; External Depth:3.4mm; External Length / Height:1.3mm; Height:1.3mm; Open Circuit Voltage:0.4V; Operating Temperature Range:-40°C to +125°C; Peak Wavelength:930nm; Reverse Voltage Vr Max:20V; Sensitivity:0.55A/W; Short Circuit Current:0.17mA; Wavelength Typ:930nm

PHOTODIODE PLANAR; No. of Pins:2Pins; Diode Case Style:Planar; Wavelength of Peak Sensitivity:930nm; Angle of Half Sensitivity ±:60°; Dark Current:3.3µA; Operating Temperature Min:-40°C; Operating Temperature Max:105°C; Packaging:Each; Product Range:-; Automotive Qualification Standard:-; MSL:-; Active Area:109.1mm²; Breakdown Voltage Vbr:20V; Diode Type:Photodiode; External Depth:25.4mm; External Length / Height:5.1mm; Height:5.1mm; Lead Length:130mm; Open Circuit Voltage:0.4V; Operating Temperature Range:-40°C to +105°C; Peak Wavelength:930nm; Reverse Voltage Vr Max:20V; Sensitivity:0.55A/W; Short Circuit Current:6mA; Wavelength Typ:930nm

PHOTODIODE PLANAR; No. of Pins:2Pins; Diode Case Style:Planar; Wavelength of Peak Sensitivity:930nm; Angle of Half Sensitivity ±:60°; Dark Current:1.7µA; Operating Temperature Min:-40°C; Operating Temperature Max:105°C; Packaging:Each; Product Range:-; Automotive Qualification Standard:-; MSL:-; Breakdown Voltage Vbr:20V; External Depth:3.4mm; External Length / Height:1.3mm; Operating Temperature Range:-40°C to +105°C; Peak Wavelength:930nm; Reverse Voltage Vr Max:20V; Sensitivity:0.55A/W; Wavelength Typ:930nm

PHOTODIODE; No. of Pins:2Pins; Diode Case Style:Planar; Wavelength of Peak Sensitivity:930nm; Angle of Half Sensitivity ±:60°; Dark Current:100nA; Operating Temperature Min:-20°C; Operating Temperature Max:75°C; Packaging:Each; Product Range:-; Automotive Qualification Standard:-; MSL:-; Active Area:9.8mm²; Breakdown Voltage Vbr:50V; Diode Type:Photodiode; Fall Time tf:6µs; Operating Temperature Range:-20°C to +75°C; Peak Spectral Response Wavelength:930nm; Peak Wavelength:930nm; Reverse Voltage Vr Max:50V; Rise Time:4µs; Short Circuit Current:700µA; Wavelength Typ:930nm

PHOTODIODE ARRAY; No. of Pins:-; Diode Case Style:-; Angle of Half Sensitivity ±:-; Dark Current:3µA; Operating Temperature Min:-40°C; Operating Temperature Max:125°C; MSL:-; Active Area:76.76mm²; Diode Type:Photodiode; Open Circuit Voltage:0.4V; Operating Temperature Range:-40°C to +125°C; Peak Wavelength:930nm; Short Circuit Current:450µA; Wavelength Typ:930nm

PHOTODIODE PLANAR CHIP; No. of Pins:1Pins; Diode Case Style:Planar; Wavelength of Peak Sensitivity:930nm; Angle of Half Sensitivity ±:60°; Dark Current:1.7µA; Operating Temperature Min:-40°C; Operating Temperature Max:125°C; Packaging:Each; Product Range:-; Automotive Qualification Standard:-; MSL:-; Active Area:45.9mm²; Breakdown Voltage Vbr:20V; Diode Type:Photodiode; External Depth:10.2mm; External Length / Height:5.1mm; Height:5.1mm; Open Circuit Voltage:0.4V; Operating Temperature Range:-40°C to +125°C; Peak Wavelength:930nm; Reverse Voltage Vr Max:20V; Sensitivity:0.55A/W; Short Circuit Current:2.1mA; Wavelength Typ:930nm

PHOTODIODE BG FILTERED; No. of Pins:2Pins; Diode Case Style:Planar; Wavelength of Peak Sensitivity:550nm; Angle of Half Sensitivity ±:60°; Dark Current:100nA; Operating Temperature Min:-20°C; Operating Temperature Max:85°C; Packaging:Each; Product Range:-; Automotive Qualification Standard:-; MSL:-; Active Area:9.8mm²; Breakdown Voltage Vbr:50V; Diode Type:Photodiode; Fall Time tf:6µs; Operating Temperature Range:-20°C to +85°C; Peak Spectral Response Wavelength:550nm; Peak Wavelength:550nm; Reverse Voltage Vr Max:50V; Rise Time:4µs; Short Circuit Current:55µA; Wavelength Typ:550nm

PHOTODIODE, PLANAR CHIP; No. of Pins:1Pins; Diode Case Style:Planar; Wavelength of Peak Sensitivity:930nm; Angle of Half Sensitivity ±:60°; Dark Current:1µA; Operating Temperature Min:-40°C; Operating Temperature Max:105°C; MSL:-; Active Area:21.4mm²; Diode Type:Photodiode; External Depth:5.1mm; External Length / Height:5.1mm; Open Circuit Voltage:0.4V; Operating Temperature Range:-40°C to +105°C; Peak Wavelength:930nm; Sensitivity:0.55A/W; Short Circuit Current:1.2mA; Wavelength Typ:930nm

PHOTODIODE PLANAR CHIP; No. of Pins:1Pins; Diode Case Style:Planar; Wavelength of Peak Sensitivity:930nm; Angle of Half Sensitivity :60 ; Dark Current:1.7 A; Operating Temperature Min:-40 C; Operating Temperature Max:125 C; MSL:- ;RoHS Compliant: Yes
