DC1508B-B
Analog Devices Inc.The LTC2975 is a 4-channel Power System Manager used to sequence, trim (servo), margin, supervise, manage faults, provide telemetry and create fault logs. PMBus commands support power supply sequencing, precision point-of-load voltage adjustment and margining. DACs use a proprietary soft-connect algorithm to minimize supply disturbances. Supervisory functions include over and under current, voltage and temperature threshold limits for four power supply output channels as well as over and under voltage threshold limits for a single power supply input channel. Programmable fault responses can disable the power supplies with optional retry after a fault is detected. Faults that disable a power supply can automatically trigger black box EEPROM storage of fault status and associated telemetry. An internal 16-bit ADC monitors four output voltages, four output currents, four external temperatures, input voltage and current, and die temperature. Input power, energy, and output power is also calculated. A programmable watchdog timer monitors microprocessor activity for a stalled condition and resets the microprocessor if necessary. A single wire bus synchronizes power supplies across multiple ADI Power System Management (PSM) devices. Configuration EEPROM with ECC supports autonomous operation without additional software.APPLICATIONS Computers and Network Servers Industrial Test and Measurement High Reliability Systems Video and Medical Imaging
DC150B-A
Analog Devices Inc.The LTC1067/LTC1067-50 consist of two identical rail-to-rail, high accuracy and very wide dynamic range 2nd order switched-capacitor building blocks. Each building block, together with three to five resistors, provides 2nd order filter functions such as bandpass, highpass, lowpass, notch and allpass. High precision 4th order filters are easily designed. The center frequency of each 2nd order section is tuned by the external clock frequency. The internal clock-to-center frequency ratio (100:1 for the LTC1067 and 50:1 for the LTC1067-50) can be modified by the external resistors. These devices have a double sampled architecture which places aliasing and imaging components at twice the clock frequency. The LTC1067-50 is a low power device consuming about one half the current of the LTC1067. The LTC1067-50?s typical supply current is about 1mA from a 3.3V supply. The LTC1067 and LTC1067-50 are available in 16-pin narrow SSOP and SO packages. Mask programmable versions of the LTC1067 and LTC1067-50, with thin film resistors on-chip and custom clock-to-cutoff frequency ratios, can be designed in an SO-8 package to realize application specific monolithic filters. Please contact LTC Marketing for more details.Applications Notch Filters Narrowband Bandpass Filters Tone Detection Noise Reduction Systems
LTC3858EUH Demo Board | Dual, 2-Phase, 16V ≤ VIN ≤ 26V, VOUT = 12V @ 25A
Analog Devices Inc.Demonstration circuit 1510A is a high output voltage, high efficiency synchronous poly-phase buck converter featuring the LTC3858EUH. The demo circuit is available in two versions. The input voltage of both versions is 16V to 26V. DC1510A-A is configured using 2 LTC3858's with 4 phase interleaving operation which provides a 12V/50A output, while the DC1510A-B is configured with 1 LTC3858 with 2 phase inter-leaving operation which provides a 12V/25A output.
LT3050EDDB Demo Board | Micropower Low Noise, Low Dropout Linear Regulator, Current Limit, Diagnostics, 2V ≤ VIN ≤ 45V, VOUT = 1.2V/1.5V/1.8V/2.5V/3.3V/5V/Adjustable at 100mA
Analog Devices Inc.Demonstration circuit 1515 is an adjustable 100mA linear regulator featuring the LT3050. The LT3050 is a micropower, low noise and low dropout voltage linear regulator. The device supplies 100mA of output current with a dropout voltage of 340mV. A 10nF bypass capacitor reduces output noise to 30μVRMS (10Hz to 100kHz bandwidth) and soft-starts the reference. The demo board's 2V to 45V input voltage range combined with its precision current limit and diagnostic functions make the IC an ideal choice for robust, high reliability applications such as protected antenna power supplies. The jumper-selectable output voltage can be set to 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V or a user-defined voltage. The input and output pins can withstand up to ±50V and the output is short-circuit protected.
The internal current limit should be considered when the input-to-output differential is high. The LT3050's current limit can be programmed by a single resistor and is accurate to ±5% over a wide input voltage and temperature range. A single resistor programs the LT3050’s minimum output current monitor, useful for detecting open-circuit conditions. The current monitor function sources a current equal to 1/100th of output current. A logic FAULT pin asserts low if the LT3050 is in current limit, operating below its minimum output current (open-circuit) or is in thermal shutdown.
LTC2267-12 | 12-Bit, 105Msps, 1.8V Dual Serial ADC, 5MHz < AIN < 170MHz, Requires DC1371 and DC1075
Analog Devices Inc.DC1532A-H: Demo Board for the LTC2267-12 12-Bit, 105Msps Low Power Dual ADCs.
LTC2263-12 | 12-Bit, 25Msps, 1.8V Dual Serial ADC, 5MHz < AIN < 170MHz, Requires DC1371 and DC1075
Analog Devices Inc.DC1532A-L: Demo Board for the LTC2263-12 12-Bit, 25Msps Low Power Dual ADCs.
LTC2637-HZ12 | 12-Bit Octal I2C DAC (4.096V Internal Reference Mode, Reset to Zero-Scale), Requires DC590
Analog Devices Inc.DC1534A-C: Demo Board for the LTC2637-12 Octal 12-Bit I2C VOUT DACs with 10ppm/°C Reference.
LTC6102-1 Current Sense Demo Board with Enable Feature
Analog Devices Inc.DC1536A: Demo Board for the LTC6102 Precision Zero Drift Current Sense Amplifier.
LT3992EFE Demo Board | Dual Buck with Tracking, 7V ≤ VIN ≤ 60V, VOUT1 = 5V @ 2A, VOUT2 = 3.3V @ 2A
Analog Devices Inc.The demo circuit 1537A is a dual current mode PWM step-down DC/DC converter featuring LT3992. The demo circuit is designed for 5V and 3.3V outputs from a 7V to 60V input. The current capability of each channel is up to 3A when running individually and 2A when both are sourcing the same current without special heat sinking. Individual soft-start, current limit, comparator, input voltage for each output as well as frequency division and synchronous and clock output functions simplify the complex design of dual-output power converters.
LTM4641 Demo Board | 38V, 10A, Step-Down μModule Regulator with Advanced Input and Load Protection
Analog Devices Inc.Demonstration circuit 1543B features the LTM4641, a high efficiency, high density switch mode step-down power μModule regulator with superior input and load protection features. The input voltage range is from 4.5V to 38V. The output voltage is jumper programmable from 0.8V to 6V with a rated load current of 10A. Derating is necessary for certain VIN, VOUT, frequency and thermal conditions. DC1543B offers the TRACK/SS pin allowing the user to program output tracking or soft-start period. The DC1543B allows the user to enable/disable input undervoltage protection; input latching/non-latching overvoltage protection; and latching/non-latching overtemperature protection.
Higher efficiency at low load currents is achieved by setting the MODE pin jumper to DCM. The LTM4641 data sheet must be read in conjunction with the demo manual prior to working on or modifying demo circuit 1543B.
DC1544A
Analog Devices Inc.The LT3957 is a wide input range, current mode DC/DC converter which is capable of generating either positive or negative output voltages. It can be configured as either a boost, flyback, SEPIC or inverting converter. It features an internal low side N-channel power MOSFET rated for 40V at 5A and driven from an internal regulated 5.2V supply. The fixed frequency, current-mode architecture results in stable operation over a wide range of supply and output voltages.The operating frequency of LT3957 can be set with an external resistor over a 100kHz to 1MHz range, and can be synchronized to an external clock using the SYNC pin. A minimum operating supply voltage of 3V, and a low shutdown quiescent current of less than 1?A, make the LT3957 ideally suited for battery-powered systems.The LT3957 features soft-start and frequency foldback functions to limit inductor current during start-up.? Features LT3957 - LT3957A Improved Load Transient Performance ?Applications Automotive Telecom Industrial
LT5578 | Upconversion Mixer Demo Board, IF=140MHz, RF=900MHz (LS LO)
Analog Devices Inc.DC1545A-B: Demo Board for LT5578 0.4GHz to 2.7GHz High Linearity Upconverting Mixer.
LTC3113EDHD Demo Board
Analog Devices Inc.Demonstration Circuit 1551A is a wide Vin range, highly efficient, fixed frequency buck-boost converter. The unique 4-switch, single inductor architecture provides low noise and seamless operation from input voltages above, below, or equal to the output voltage. The LTC3113 features selectable PWM or Burst Mode operation and an oscillator with a programmable frequency from 300kHz to 2MHz. The LTC3113 can deliver up to 3A of continuous output current to satisfy most demanding applications. Higher output currents are possible in step-down (buck) mode. The LTC3113 operates with a 1.8V to 5.5V input and output voltage range. The demonstration board has been designed to operate over the full input voltage range, with VOUT set to 3.3V and IOUT of 3.0A. For VIN < 3V, IOUT capability is reduced.
DC1557A
Analog Devices Inc.The LT3748 is a switching regulator controller specifically designed for the isolated flyback topology and capable of high power. It drives a low side external N-channel power MOSFET from an internally regulated 7V supply. No third winding or opto-isolator is required for regulation as the part senses the isolated output voltage directly from the primary-side flyback waveform.The LT3748 utilizes boundary mode to provide a small magnetic solution without compromising load regulation. Operating frequency is set by load current and transformer magnetizing inductance. The gate drive of the LT3748 combined with a suitable external MOSFET allow it to deliver load power up to several tens of watts from input voltages as high as 100V.The LT3748 is available in a high voltage 16-lead MSOP package with four leads removed.APPLICATIONS Isolated Telecom Converters High Power Automotive Supplies Isolated Industrial Power Supplies Military and High Temperature Applications
DC1559A

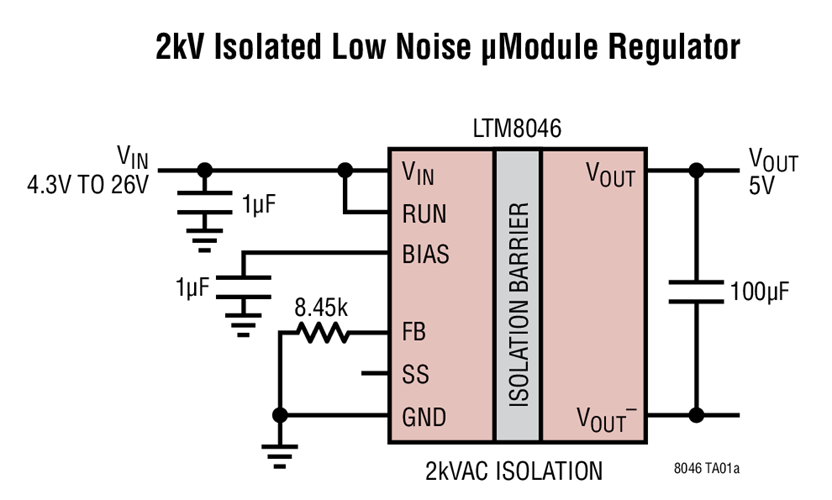

Analog Devices Inc.The LTM8046 is an isolated flyback DC/DC ?Module? (power module) converter. The LTM8046 has an isolation rating of 2kVAC. Included in the package are the switching controller, power switches, transformer, and all support components. Operating over an input voltage range of 3.1V to 31V, the LTM8046 supports an output voltage range of 1.8V to 12V, set by one resistor. Only output, input, and bias capacitors are needed to finish the design. An optional capacitor can be used to set the soft-start period.The LTM8046 is packaged in a 9mm ? 15mm ? 4.92mm over-molded ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8046 is available with SnPb (BGA) or RoHS compliant terminal finish.Applications Industrial Sensors Industrial Switches Ground Loop Mitigation
LTC6990 Demo Board | 1kHz to 10kHz VCO
Analog Devices Inc.Demonstration circuit 1562B is an engineering tool to design and evaluate the LTC699X-X family of TimerBlox® circuits. The center section of the board contains a preconfigured TimerBlox function. DC1562B comes in twelve timing function variations as outlined in Table 1.
LTC2314-14 Demo Board | 14-Bit, 4.5Msps Serial SAR ADC with 20ppm/°C (Max) Internal Reference in TSOT-8 (Requires DC2026 or DC718)
Analog Devices Inc.DC1563A-F: Demo Board for the LTC2314-14 14-Bit, 4.5Msps Serial Sampling ADC in TSOT.
LTC2150-14: 14-bit, 170Msps, 1.8V Single ADC, 5MHz-140MHz, DDR LVDS Outputs, requires DC1371
Analog Devices Inc.DC1565A-C: Demo Board for the LTC2150-14 Single 14-Bit 170Msps ADCs.
DC1570A-A
Analog Devices Inc.The LT3663 is a current mode step-down switching regulator with programmable output current limit. The current limit accurately controls the system power dissipation and reduces the size of the power path components. The wide operating input voltage range of 7.5V to 36V (60V transient) suits the LT3663 to a variety of input sources, including unregulated 12V wall adapters, 24V industrial supplies, and automotive power. The LT3663 includes a low current shutdown mode, input overvoltage and undervoltage lockout, and thermal shutdown. Internal compensation and boost diode minimize the number of external exponents. 3.3V and 5V fixed output voltage versions are available. The LT3663 is available in 8-lead DFN and MSOP packages with exposed pads for low thermal resistance.Applications Distributed Supply Regulation Automotive Battery Regulation Industrial Supplies Wall Transformer Regulation
LTC2381CMS-16 Demo Board | 2.5V 16-Bit 250Ksps Serial SPI SAR ADC, Requires DC718 or DC590
Analog Devices Inc.DC1571A-C: Demo Board for the LTC2381-1616-Bit, 250ksps, Low Power SAR ADC with Serial Interface.
