Description

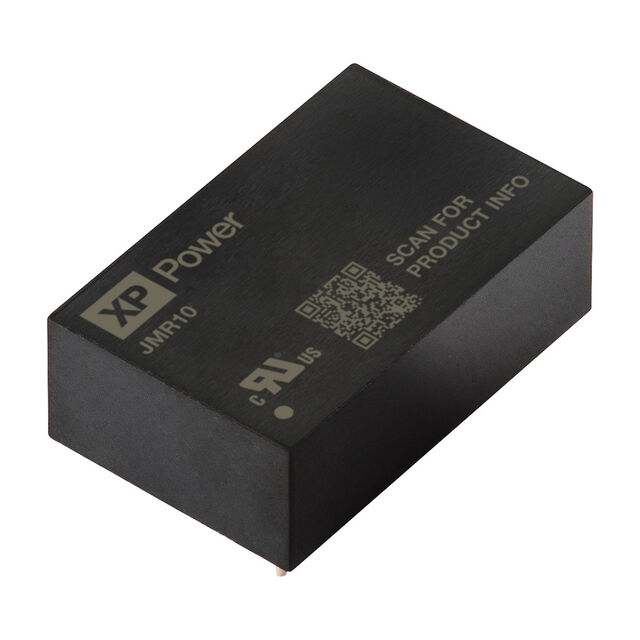

The JMR10 series is a range of ultra-compact, regulated PCB-mount medical DC-DC converters which offers single and dual output voltages ranging from 5V to 15V. Housed in a ultra-compact DIP24 package, the JMR10 series features a 4:1 input voltage range and offers a ±10% output trim on single output versions. Its low no load power increases efficiency and extends runtime in battery powered applications.

Features

•  Regulated single & dual outputs from 5 to 30VDC
•  4:1 input range
• Ultra-compact DIP24 PCB mount package
• Low no-load power
• 10% trim on single output versions
• IEC60601-1 medical safety agency approvals
• 5kVAC reinforced isolation
• 2 x MOPP at 250VAC
• 2μA patient leakage current
• Remote On/Off
• Short circuit, overload & overvoltage protection
• -40°C to +100°C operating temperature
• 3 year warranty
