4:1 INPUT RANGE DIP24 METAL PACKAGE OPERATING TEMPERATURE 40 °C TO +100 °C SINGLE & DUAL OUTPUTS CONTINUOUS SHORT CIRCUIT PROTECTION 1500 VDC ISOLATION 3500 VDC OPTION

DC/DC CONVERTER 8W 4:1 I/P15V O/P; No. of Outputs:2 Output; Output Power Max:8W; Output Voltage - Output 1:15V; Output Current - Output 1:265mA; Output Voltage - Output 2:-15V; Output Current - Output 2:265mA; Output Voltage - Output 3:-; Output Current - Output 3:-; Product Range:JTF Series; Input Voltage DC Min:9V; Input Voltage DC Max:36V; DC / DC Converter Output Type:Fixed; DC / DC Converter Type:DIP; DC / DC Converter Mounting:Through Hole; Approvals & Standards:-; Width:20.32mm; Height:10.16mm; Depth:31.75mm; Approval Bodies:EN; Isolation Voltage:1.6kV; No. of Outputs:2Outputs; Power Rating:8W; Supply Voltage:24V

DC/DC CONVERTER 10W 4:1 15V; No. of Outputs:1 Output; Output Power Max:10W; Output Voltage - Output 1:15V; Output Current - Output 1:667mA; Output Voltage - Output 2:-; Output Current - Output 2:-; Output Voltage - Output 3:-; Output Current - Output 3:-; Product Range:JTF Series; Input Voltage DC Min:18V; Input Voltage DC Max:75V; DC / DC Converter Output Type:Fixed; DC / DC Converter Type:DIP; DC / DC Converter Mounting:Through Hole; Approvals & Standards:-; Width:20.32mm; Height:10.16mm; Depth:31.75mm; Approval Bodies:EN; Isolation Voltage:1.6kV; No. of Outputs:1Outputs; Power Rating:10W; Supply Voltage:48V

DC/DC CONVERTER 20W 4:1 DUAL 12V; No. of Outputs:2 Output; Output Power Max:20W; Output Voltage - Output 1:12V; Output Current - Output 1:833mA; Output Voltage - Output 2:-12V; Output Current - Output 2:833mA; Output Voltage - Output 3:-; Output Current - Output 3:-; Product Range:JTK Series; Input Voltage DC Min:18V; Input Voltage DC Max:75V; DC / DC Converter Output Type:Fixed; DC / DC Converter Type:DIP; DC / DC Converter Mounting:Through Hole; Approvals & Standards:-; Width:25.4mm; Height:9.9mm; Depth:25.4mm; Isolation Voltage:1.6kV; No. of Outputs:2Outputs; Power Rating:20W; Supply Voltage:48V

CONVERTER DC/DC 30W 12V; No. of Outputs:1 Output; Output Power Max:30W; Output Voltage - Output 1:12V; Output Current - Output 1:2.5A; Output Voltage - Output 2:-; Output Current - Output 2:-; Output Voltage - Output 3:-; Output Current - Output 3:-; Product Range:-; Input Voltage DC Min:9V; Input Voltage DC Max:36V; DC / DC Converter Output Type:Fixed; DC / DC Converter Type:DIP; DC / DC Converter Mounting:Through Hole; Approvals & Standards:-; Width:25.4mm; Height:10.16mm; Depth:50.8mm; Efficiency:89%; External Depth:25.4mm; External Length / Height:10.16mm; External Width:50.8mm; Isolation Voltage:1.6kV; No. of Outputs:1Outputs; Power Rating:30W; Supply Voltage:24V

CONVERTER DC/DC 30W 5 & +/-15V; No. of Outputs:3 Output; Output Power Max:30W; Output Voltage - Output 1:5V; Output Current - Output 1:4A; Output Voltage - Output 2:15V; Output Current - Output 2:330mA; Output Voltage - Output 3:-15V; Output Current - Output 3:330mA; Product Range:-; Input Voltage DC Min:9V; Input Voltage DC Max:36V; DC / DC Converter Output Type:Fixed; DC / DC Converter Type:DIP; DC / DC Converter Mounting:Through Hole; Approvals & Standards:-; Width:25.4mm; Height:10.16mm; Depth:50.8mm; Efficiency:90%; External Depth:25.4mm; External Length / Height:10.16mm; External Width:50.8mm; Isolation Voltage:1.6kV; No. of Outputs:3Outputs; Power Rating:30W; Supply Voltage:24V

DC-DC CONVERTER ISO POL 3 O/P 30W 5V 12V; No. of Outputs:3 Output; Output Power Max:30W; Output Voltage - Output 1:5V; Output Current - Output 1:4A; Output Voltage - Output 2:12V; Output Current - Output 2:420mA; Width:25.4mm ;RoHS Compliant: Yes

POWER SUPPLY

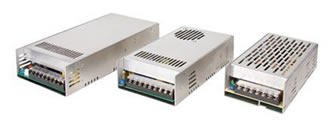

The LCL series is a low cost chassis mount product that is popular in industrial applications. The AC/DC supplies are enclosed in a metal case with terminal block input and output connectors. Three series offer 150, 300 and 500 Watts. Each power range includes six single output models from 12 to 48 VDC. The user adjustable outputs cover all nominal voltage ranges. The LCL150 is convection cooled while the 300 and 500 Watt have internal fans. All LCL models are approved to ITE (60950-1) safety standards and meet EN55022 Level B conducted emissions. Operating temperature range is from -10 °C to +70 °C with derating above +50 °C. Standard features include overvoltage, overload, short circuit, and over temperature protection. Remote sense is included on the LCL500 with Remote On/Off available with the LCL300 and LCL500. Features: Single Output Industrial Supplies High Efficiency Low Cost 150 W Convection-cooled 300 W & 500 W with Internal Fans Outputs from 12 V to 48 V 3 Year Warranty

DC-DC Converters 8/48 Watts / LED Strings from 2 V to 57 V / Constant Current Output Input: 7-30 V Output: 2-28 V/1.0 A Power: 24 W

LED DRIVER DC-DC CC 28V 1A 24W; Product Range:LDU24 Series; Output Power Max:24W; Output Voltage Max:28V; Output Current:1A; Dimming Control Type:Analogue PWM; DC / DC Converter Mounting:Panel; DC / DC Converter Output Type:Adjustable; Input Voltage Min:7V; Input Voltage Max:30V; Approvals & Standards:-; LED Driver Mode:Constant Current

DC-DC Converters 8/48 Watts / LED Strings from 2 V to 57 V / Constant Current Output Input: 7-60 V Output: 2-57 V/0.35 A Power: 20 W

LED DRIVER, DC-DC, CC, 0.7A, 57V; Product Range:LDU48 Series; Output Power Max:40W; Output Voltage Max:57V; Output Current:700mA; Dimming Control Type:Analogue, PWM; DC / DC Converter Mounting:Panel; DC / DC Converter Output Type:Adjustable; Input Voltage Min:7V; Input Voltage Max:60V; SVHC:No SVHC (15-Jan-2018); Depth:12.45mm; Efficiency:97%; LED Driver Mode:Constant Current; Length:31.75mm; No. of Outputs:1Outputs; Operating Temperature Max:70C; Operating Temperature Min:-40C; Operating Temperature Range:-40C to +70C; Output Power:40W; Output Voltage:57V; Termination Style:Flying Leads; Width:20.32mm

DC-DC Converters 400-600 Watts / MIL-STD-1275A/B/C/D / 400 W Regulated Outputs Baseplate Cooled Input: 18.5-34 VAC steady state Output: 2-48 VDC Power: 600 W

AC-DC Power Supplies 65 Watts Convection-Cooled / 3 Year Warranty /

AC-DC CONVERTER OPEN FRAME 1 O/P 350W 29A 12V; No. of Outputs:1 Output; Output Power Max:361W; Output Voltage - Output 1:12V; Output Current - Output 1:29A; Output Voltage - Output 2:12V; Output Current - Output 2:1A ;RoHS Compliant: Yes

POWER SUPPLY AC-DC MEDICAL 12V 83A; No. of Outputs:1Outputs; Output Power Max:1kW; Output Voltage - Output 1:12V; Output Current - Output 1:83A; Output Voltage - Output 2:-; Output Current - Output 2:-; Output Voltage - Output 3:-; Output Current - Output 3:-; Output Voltage - Output 4:-; Current Output 4:-; Input Voltage AC Min:85V; Input Voltage AC Max:264V; Power Supply Output Type:Fixed; Product Range:MHP1000 Series; Approval Bodies:IEC TUV UL; Approvals / Standards:CSA 22.2 No. 60601 EN 60601 IEC 60601 UL 60601; Height:61mm; Input Frequency:63Hz; Input Voltage:85V AC to 264V AC; Length:242.64mm; No. of Outputs:1 Output; Output Current Max:83A; Power Rating:1kW; Width:149.8mm

POWER SUPPLY AC-DC MEDICAL 48V 21A; No. of Outputs:1Outputs; Output Power Max:1.013kW; Output Voltage - Output 1:48V; Output Current - Output 1:21A; Output Voltage - Output 2:-; Output Current - Output 2:-; Output Voltage - Output 3:-; Output Current - Output 3:-; Output Voltage - Output 4:-; Current Output 4:-; Input Voltage AC Min:85V; Input Voltage AC Max:264V; Power Supply Output Type:Fixed; Product Range:MHP1000 Series; Approval Bodies:IEC TUV UL; Approvals / Standards:CSA 22.2 No. 60601 EN 60601 IEC 60601 UL 60601; Height:61mm; Input Frequency:63Hz; Input Voltage:85V AC to 264V AC; Length:242.64mm; No. of Outputs:1 Output; Output Current Max:21A; Power Rating:1.013kW; Width:149.8mm

POWER SUPPLY AC-DC MEDICAL 28V 23A; No. of Outputs:1Outputs; Output Power Max:655W; Output Voltage - Output 1:28V; Output Current - Output 1:23A; Output Voltage - Output 2:-; Output Current - Output 2:-; Output Voltage - Output 3:-; Output Current - Output 3:-; Output Voltage - Output 4:-; Current Output 4:-; Input Voltage AC Min:80V; Input Voltage AC Max:264V; Power Supply Output Type:Fixed; Product Range:MHP650 Series; Approval Bodies:CB CSA EN IEC TUV UL; Approvals / Standards:CSA 22.2 No. 60601 EN 60601 IEC 60601 UL 60601; Height:101.6mm; Input Frequency:63Hz; Input Voltage:80V AC to 264V AC; Length:63.5mm; No. of Outputs:1 Output; Output Current Max:23A; Power Rating:655W; Power Supply Type:Enclosed; Width:233.2mm

POWER SUPPLY AC-DC MEDICAL 48V 13.5A; No. of Outputs:1Outputs; Output Power Max:655W; Output Voltage - Output 1:48V; Output Current - Output 1:13.5A; Output Voltage - Output 2:-; Output Current - Output 2:-; Output Voltage - Output 3:-; Output Current - Output 3:-; Output Voltage - Output 4:-; Current Output 4:-; Input Voltage AC Min:80V; Input Voltage AC Max:264V; Power Supply Output Type:Fixed; Product Range:MHP650 Series; Approval Bodies:CB CSA EN IEC TUV UL; Approvals / Standards:CSA 22.2 No. 60601 EN 60601 IEC 60601 UL 60601; Height:101.6mm; Input Frequency:63Hz; Input Voltage:80V AC to 264V AC; Length:63.5mm; No. of Outputs:1 Output; Output Current Max:13.5A; Power Rating:655W; Power Supply Type:Enclosed; Width:233.2mm
