Description

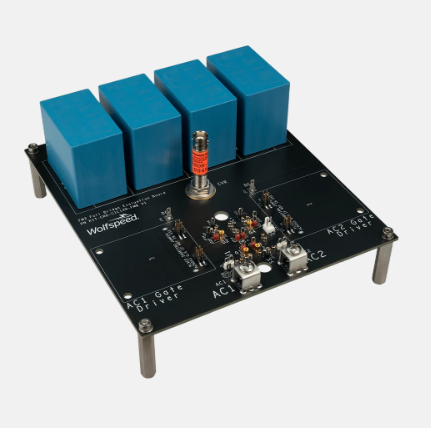

Wolfspeed’s KIT-CRD-CIL12N-FMB is a dynamic performance tool that can be used to evaluate and optimize switching performance of Wolfspeed’s WolfPACK™ FM3 Silicon Carbide (SiC) full-bridge power modules. A clamped inductive load (CIL) test circuit with high-bandwidth current measurement provides a high-speed, low-inductance test fixture for double pulse testing.

This test fixture in conjunction with one of the many gate driver board options allow for measurement of:

• Timing (T_Delay-On; T_Delay-Off; T_Rise; T_Fall)
• Overshoot (V_DS-Max; I_D-Max)
• Speed (di/dt; dv/dt)
• Switching Loss (E_ON; E_OFF; E_RR)

Download Design Files Here

Specifications:

• Optimized for Wolfspeed’s WolfPACK™ Silicon Carbide full-bridge power modules
• DC bus voltage up to 1000 V
• Onboard 200 uF bulk capacitor bank and high-frequency film capacitor bank
• High-speed, low-inductance layout with stray inductance of 6.0 nH at 10 Mhz
• Onboard high-bandwidth current viewing resistor (CVR)
• Screw terminals for power supply and load inductor connections

Applications:

• DC/DC Converters
• EV Chargers
• High-Efficiency Converters / Inverters
• Solar & Energy Storage Systems
• Smart-Grid / Grid-Tied Distributed Generation

What's Included:

• Fully assembled PCB board
• Reference Design Files

Type:

Part number: KIT-CRD-CIL12N-FMB
