Thyristor TRIAC 600V 27A 3-Pin(2+Tab) DPAK T/R

Thyristor TRIAC 800V 150A 3-Pin(2+Tab) D2PAK T/R

Diode Switching 600V 8A 2-Pin(2+Tab) TO-220AC Tube

Diode Switching 600V 5A 3-Pin(2+Tab) DPAK T/R

Diode Switching 200V 8A 2-Pin(2+Tab) TO-220AC Rail

Diode Schottky 110V 20A 3-Pin(3+Tab) TO-220AB Tube

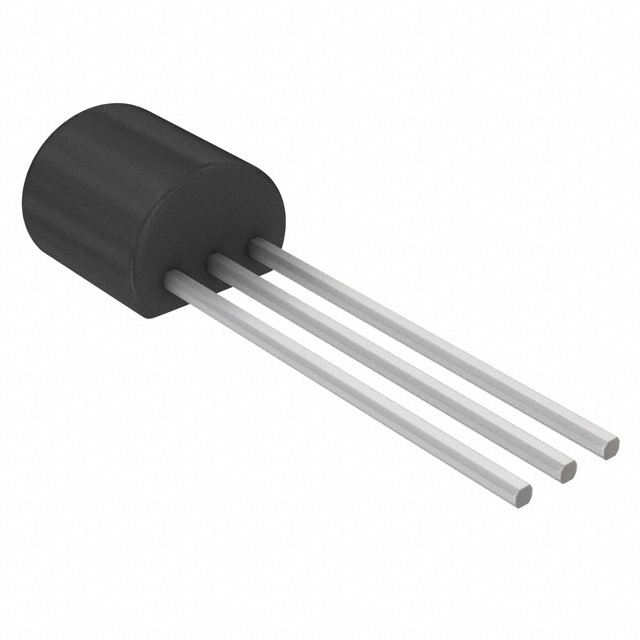

Thyristor TRIAC 800V 3-Pin TO-92 T/R

THYRISTOR 13A 400V TO-220; Peak Repetitive Off-State Voltage Vdrm:450V; Gate Trigger Current Max Igt:32mA; Current It av:13A; On State RMS Current IT(rms):20A; Thyristor Case Style:TO-220AB; No. of Pins:3Pins; Peak Non Rep Surge Current Itsm 50Hz:200A; Holding Current Max Ih:60mA; Gate Trigger Voltage Max Vgt:2.5V; Operating Temperature Max:150°C; Product Range:-; MSL:-; SVHC:No SVHC (17-Dec-2015); Current Itsm:200A; Operating Temperature Min:-40°C; Operating Temperature Range:-40°C to +150°C; Repetitive Reverse Voltage Vrrm Max:450V; Termination Type:Through Hole; Thyristor Type:Thyristor

THYRISTOR 13A 800V TO-220; SVHC:No SVHC (17-Dec-2015); Peak Repetitive Off-State Voltage Vdrm:800V; Gate Trigger Current Max Igt:32mA; Current It av:13A; On State RMS Current IT(rms):20A; Thyristor Case Style:TO-220AB; No. of Pins:3Pins; Peak Non Rep Surge Current Itsm 50Hz:200A; Holding Current Max Ih:60mA; Gate Trigger Voltage Max Vgt:0.6V; Operating Temperature Max:150°C; Product Range:-; MSL:-; Current Itsm:200A; Device Marking:BT152-800R; Operating Temperature Min:-40°C; Operating Temperature Range:-40°C to +150°C; Repetitive Reverse Voltage Vrrm Max:800V; Termination Type:Through Hole; Thyristor Type:Thyristor

TRIAC 25A 800V TO-220AB; Peak Repetitive Off-State Voltage Vdrm:800V; On State RMS Current IT(rms):25A; Triac Case Style:TO-220AB; Gate Trigger Current Max (QI) Igt:-; Gate Trigger Voltage Max Vgt:1.5V; Peak Gate Power:5W; Peak Non Rep Surge Current Itsm 50Hz:190A; Holding Current Max Ih:60mA; No. of Pins:-; Operating Temperature Max:150°C; Product Range:-; MSL:-; SVHC:No SVHC (17-Dec-2015); Current Itsm:190A; Current Itsm @ 60Hz:209A; Current t2+g-:35mA; Current t2-g+:70mA; Current t2-g-:35mA; Gate Trigger Current Igt (Q1) t2+g+:35mA; Gate Trigger Current Max Igt:70mA; Holding Current Max Ih:60mA; Operating Temperature Min:-40°C; Operating Temperature Range:-40°C to +150°C; Repetitive Reverse Voltage Vrrm Max:800V; Termination Type:Through Hole; Thyristor Type:Triac

DIODE ULTRAFAST 15A 500V; Repetitive Reverse Voltage Vrrm Max:500V; Forward Current If(AV):14A; Diode Configuration:Single; Forward Voltage VF Max:1.38V; Reverse Recovery Time trr Max:60ns; Forward Surge Current Ifsm Max:130A; Operating Temperature Max:150°C; Diode Case Style:TO-220AC; No. of Pins:2 Pin; Packaging:Each; Product Range:BYT79 Series; Automotive Qualification Standard:-; SVHC:No SVHC (17-Dec-2015); Current If @ Vf:15A; Current Ifsm:130A; Current Ir Max:5µA; Diode Type:Soft Recovery; Junction Temperature Tj Max:150°C; No. of Pins:2Pins; Pin Configuration:1K 2A; Reverse Recovery Time trr Typ:50ns; Termination Type:Through Hole

DIODE ULTRAFAST 9A; Repetitive Reverse Voltage Vrrm Max:500V; Forward Current If(AV):9A; Diode Configuration:Single; Forward Voltage VF Max:1.25V; Reverse Recovery Time trr Max:60ns; Forward Surge Current Ifsm Max:100A; Operating Temperature Max:150°C; Diode Case Style:TO-220AC; No. of Pins:2 Pin; Packaging:Each; Product Range:BYV29 Series; Automotive Qualification Standard:-; SVHC:No SVHC (17-Dec-2015); Current If @ Vf:8A; Current Ifsm:100A; Current Ir Max:50µA; Diode Type:Fast Recovery; Junction Temperature Tj Max:150°C; No. of Pins:2Pins; Pin Configuration:1K 2A; Reverse Recovery Time trr Typ:50ns; Termination Type:Through Hole

DIODE ULTRAFAST 2X15A; Repetitive Reverse Voltage Vrrm Max:150V; Forward Current If(AV):30A; Diode Configuration:Dual Common Cathode; Forward Voltage VF Max:1.05V; Reverse Recovery Time trr Max:28ns; Forward Surge Current Ifsm Max:150A; Operating Temperature Max:150°C; Diode Case Style:TO-220AB; No. of Pins:3 Pin; Packaging:Each; Product Range:BYV42 Series; Automotive Qualification Standard:-; SVHC:No SVHC (17-Dec-2015); Current If @ Vf:15A; Current Ifsm:150A; Current Ir Max:1mA; Diode Type:Soft Recovery; Forward Voltage:1.05V; Junction Temperature Tj Max:150°C; No. of Pins:3Pins; Pin Configuration:1A1 2Kcom 3A2; Reverse Recovery Time trr Typ:20ns; Termination Type:Through Hole

DIODE ULTRAFAST 2X10A; Repetitive Reverse Voltage Vrrm Max:400V; Forward Current If(AV):20A; Diode Configuration:Dual Common Cathode; Forward Voltage VF Max:1.35V; Reverse Recovery Time trr Max:60ns; Forward Surge Current Ifsm Max:120A; Operating Temperature Max:150°C; Diode Case Style:TO-220AB; No. of Pins:3 Pin; Packaging:Each; Product Range:BYV34 Series; Automotive Qualification Standard:-; SVHC:No SVHC (17-Dec-2015); Current If @ Vf:10A; Current Ifsm:120A; Current Ir Max:50µA; Diode Type:Soft Recovery; Forward Voltage:1.05V; Junction Temperature Tj Max:150°C; No. of Pins:3Pins; Pin Configuration:1A1 2Kcom 3A2; Reverse Recovery Time trr Typ:50ns; Termination Type:Through Hole

THYRISTOR 13A 600V TO-220; SVHC:No SVHC (17-Dec-2015); Peak Repetitive Off-State Voltage Vdrm:650V; Gate Trigger Current Max Igt:32mA; Current It av:13A; On State RMS Current IT(rms):20A; Thyristor Case Style:TO-220AB; No. of Pins:3Pins; Peak Non Rep Surge Current Itsm 50Hz:200A; Holding Current Max Ih:60mA; Gate Trigger Voltage Max Vgt:1.5V; Operating Temperature Max:150°C; Product Range:-; MSL:-; Current Itsm:200A; Operating Temperature Min:-40°C; Operating Temperature Range:-40°C to +150°C; Repetitive Reverse Voltage Vrrm Max:650V; Termination Type:Through Hole; Thyristor Type:Thyristor

TRIAC ACT 2A 800V DPAK; Peak Repetitive Off-State Voltage Vdrm:800V; On State RMS Current IT(rms):2A; Triac Case Style:TO-252; Gate Trigger Current Max (QI) Igt:10mA; Gate Trigger Voltage Max Vgt:1.5V; Peak Gate Power:5W; Peak Non Rep Surge Current Itsm 50Hz:15.4A; Holding Current Max Ih:25mA; No. of Pins:3Pins; Product Range:-; MSL:-; SVHC:No SVHC (17-Dec-2015); Holding Current Max Ih:25mA; Thyristor Case:TO-252

TRIAC 4Q 1A 600V TO92; Peak Repetitive Off-State Voltage Vdrm:600V; On State RMS Current IT(rms):1A; Triac Case Style:TO-92; Gate Trigger Current Max (QI) Igt:7mA; Gate Trigger Voltage Max Vgt:1.5V; Peak Gate Power:5W; Peak Non Rep Surge Current Itsm 50Hz:12.5A; Holding Current Max Ih:5mA; No. of Pins:3Pins; Product Range:-; MSL:-; SVHC:No SVHC (17-Dec-2015); Holding Current Max Ih:5mA; Thyristor Case:TO-92

TRIAC 4Q 16A 600V TO-220; Peak Repetitive Off-State Voltage Vdrm:600V; On State RMS Current IT(rms):16A; Triac Case Style:TO-220AB; Gate Trigger Current Max (QI) Igt:25mA; Gate Trigger Voltage Max Vgt:1.5V; Peak Gate Power:5W; Peak Non Rep Surge Current Itsm 50Hz:170A; Holding Current Max Ih:45mA; No. of Pins:3Pins; Operating Temperature Max:-; Product Range:-; MSL:-; SVHC:No SVHC (17-Dec-2015); Holding Current Max Ih:45mA; Thyristor Case:TO-220AB

TRIAC HICOM 16A 600V TO220F; Peak Repetitive Off-State Voltage Vdrm:600V; On State RMS Current IT(rms):16A; Triac Case Style:TO-220F; Gate Trigger Current Max (QI) Igt:10mA; Gate Trigger Voltage Max Vgt:1.5V; Peak Gate Power:5W; Peak Non Rep Surge Current Itsm 50Hz:150A; Holding Current Max Ih:15mA; No. of Pins:3Pins; Product Range:-; MSL:-; SVHC:No SVHC (17-Dec-2015); Holding Current Max Ih:15mA; Thyristor Case:TO-220F

TRIAC 4Q 1A 800V SOT223; Peak Repetitive Off-State Voltage Vdrm:800V; On State RMS Current IT(rms):1A; Triac Case Style:SOT-223; Gate Trigger Current Max (QI) Igt:5mA; Gate Trigger Voltage Max Vgt:1.3V; Peak Gate Power:2W; Peak Non Rep Surge Current Itsm 50Hz:13.8A; Holding Current Max Ih:7mA; No. of Pins:4Pins; Product Range:-; MSL:-; SVHC:No SVHC (17-Dec-2015); Holding Current Max Ih:7mA; Thyristor Case:SOT-223
