TIDA-00641 Reference Design

Texas Instruments

Dual High Resolution Micro-stepping Driver Reference Design


This reference design achieves a dual channel high resolution micro-stepping driver module using PWM current regulation method. Selectable micro-stepping level and current level is provided with the on-board switches. The PWM regulation scheme gives smooth phase current and ultra-low acoustic operation noise. Protections such as over current: over temperature: and short outputs are all provided along with the DRV8848 device.

  • Smooth current and low acoustic noiseUp to 1/256 micro-stepping levelSelectable micro-stepping and current levelEasy STEP/DIR interfaceCompact dual channel designFull protections
  • 3D printer
  • Pachinko machine
  • Automatic transmission
  • Shifter system
  • PachiSlot machine
  • Stage lighting
  • Force & torque sensor
  • Electric drive
  • Drive line components
Product Categories
  • Motor drivers


Part Number Name Companion Part
LP2985-33 LP2985-33 Buy Datasheet
MSP430G2553 MSP430G2553 Buy Datasheet
SN74LVC2G14 SN74LVC2G14 Buy Datasheet
TLV803S TLV803S Buy Datasheet

Bill Of Materials

Download the bill of materials for TIDA-00641 Download

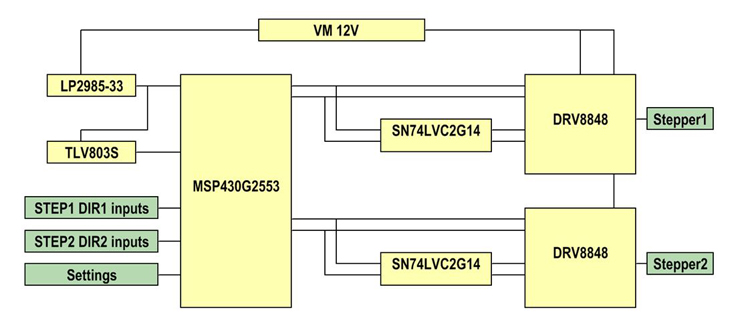

Quickly understand overall system functionality.

Download the schematic for TIDA-00641

Test Data

Get results faster with test and simulation data that's been verified.

Download the test file for TIDA-00641

Other Documents

Title Updated Type Size (KB)
TIDA-00641 Gerber 15 Dec 2015 ZIP 59
TIDA-00641 CAD Files 15 Dec 2015 ZIP 487
TIDA-00641 PCB 15 Dec 2015 PDF 204
TIDA-00641 Assembly Drawing 15 Dec 2015 PDF 125
TIDA-00641 BOM 15 Dec 2015 PDF 119
TIDA-00641 Schematic and Block Diagram 15 Dec 2015 PDF 423
