5Vin: Isolated +5Vout 1W DC/DC Module Reference Design
Description

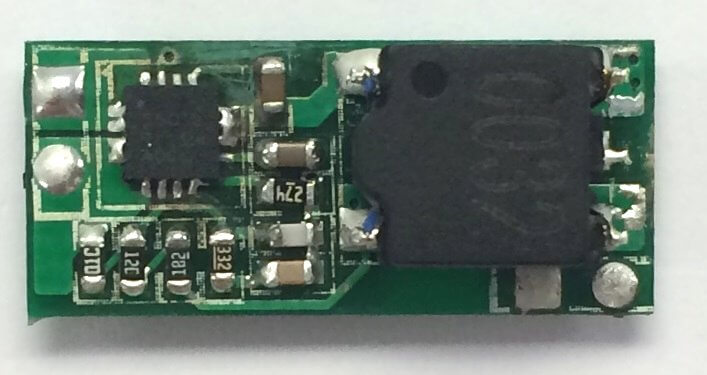

The PMP4461 is a 5Vin +5Vout: 1W reference design module. It includes a frequency-adjustable Flybuck controller TPS55010. This solution has high efficiency with 82% typically: good line: load regulation with 3:000V DC isolation. This power module was designed with minimized components and low cost transformer design.
Features
- Flybuck™ topology3:000V DC isolationHigh efficiencyGood line regulationLow cost solution with industrial pinoutSize: 20.5 x 9 x 5.5mm
Applications
- Closed loop stepper
- Train control & management
- Railway auxiliary power
- Railway electric propulsion
- Open loop stepper
Product Categories
- Power management
| Download the bill of materials for PMP4461 | Download |
Design File
Download ready-to-use system files to speed your design process. Get Viewer.
Download the design file for PMP4461Test Data
Get results faster with test and simulation data that's been verified.
Download the test file for PMP4461| Title | Updated | Type | Size (KB) | |
|---|---|---|---|---|
| PMP4461 Altium | 13 Apr 2015 | ZIP | 96 | |
| PMP4461 BOM | 13 Apr 2015 | 114 | ||
| PMP4461 Schematic | 13 Apr 2015 | 22 |
