LIMIT SWITCH; Limit Switch Actuator:Adjustable Roller Lever; Contact Configuration:1NO / 1NC; Contact Current AC Max:10A; Contact Voltage AC Max:240V; Operating Force Max:-; Product Range:XCKJ Series; Contact Current DC Max:-; Contact Voltage DC Max:250V; Actuator Type:Adjustable Roller Lever; Approval Category:EN 50041; Contact Current Rating:10A; External Depth:36mm; External Length / Height:84mm; External Width:42.5mm; IP / NEMA Rating:IP66; Switch Terminals:Screw

MAGNETIC SWITCH 2NC W/O LED; Product Range:XCSDMC Series; Contact Configuration:DPST-NC; Switch Terminals:Wire Leaded; Contact Voltage AC Max:-; Contact Current AC Max:-; IP Rating:-; Contact Voltage DC Max:24V; Contact Current DC Max:550mA; Contact Rating:100mA; External Depth:16mm; External Length / Height:51mm; External Width:7mm; IP / NEMA Rating:IP67; No. of Mechanical Operations:1000000; Operating Temperature Max:85°C; Operating Temperature Min:-25°C; Operating Voltage:24V

SAFETY SWITCH 1NC/1NO; Product Range:XCS-PA Series; Contact Configuration:1NO / 1NC; Switch Terminals:Cage Clamp Screw; Contact Voltage AC Max:250V; Contact Current AC Max:6A; IP Rating:IP67; Contact Voltage DC Max:24V; Contact Current DC Max:540mA; Conduit Thread Size:M16 x 1.5; Contact Rating:6A; External Depth:30mm; External Length / Height:93.5mm; External Width:30mm; IP / NEMA Rating:IP67; Operating Temperature Max:70°C; Operating Temperature Min:-25°C; Thermal Current Rating:10A

PRESSURE SWITCH 10-160BAR SPDT FLANGE; Pressure Fitting Style:G 1/4" BSP; Operating Pressure Min:10bar; Operating Pressure Max:160bar; Contact Configuration:SPDT; Sensor Mounting:Flange; Electrical Connection:Screw Clamp Terminals; Switching Voltage DC Resistive:120V; Switching Current DC Resistive:3A; Product Range:OsiSense XM Series; SVHC:No SVHC (17-Dec-2015)

PRESSURE TRANSMITTER 10BAR G1/4 24VDC; Operating Pressure Max:10bar; Sensor Output:Analogue; Pressure Measurement Type:-; Voltage Rating:24VDC; Port Style:G1/4; Supply Current:7mA; Product Range:OsiSense XM Series; SVHC:No SVHC (07-Jul-2017)

INDUCTIVE PROXIMITY SENSOR 4MM 24VDC; Sensing Range Max:4mm; Thread Size - Metric:M12 x 1; Sensor Output:PNP; Supply Voltage DC Min:12VDC; Supply Voltage DC Max:24VDC; Product Range:OsiSense XS Series; SVHC:No SVHC (07-Jul-2017)

SENSOR 12-48VDC 2.5MM M8 PNP CABLE; Sensing Range Max:2.5mm; Thread Size - Metric:M8; Sensor Output:PNP; Supply Voltage DC Min:12V; Supply Voltage DC Max:48V; Product Range:OsiSense XS 608 Series; Sensor Input:Inductive

INDUCTIVE PROXIMITY SENSOR 15MM 48VDC; Sensing Range Max:15mm; Thread Size - Metric:M30; Sensor Output:PNP; Supply Voltage DC Min:12V; Supply Voltage DC Max:48V; Product Range:OsiSense XS Series; SVHC:No SVHC (17-Dec-2015)

PHOTOELECTRIC SENSOR 10M 24VDC; Sensing Range Max:10m; Sensing Method:Through Beam; Sensor Output:-; Product Range:OsiSense XU Series; Connection Method:M8 Connector; Supply Voltage DC Min:12V; Supply Voltage DC Max:24V; SVHC:No SVHC (12-Jan-2017)

ULTRASONIC SENSOR 3MM; Sensing Range Min:-; Sensing Range Max:3mm; Beam Angle:-; Switching Frequency:-; External Diameter:-; Sensitivity (dB):-; Operating Temperature Min:5°C; Operating Temperature Max:55°C; Product Range:OsiSense XU Series; SVHC:No SVHC (12-Jan-2017)

CABLE ASSY M12 4POS RCPT-FREE END 5M; Connector Type A:M12 Sensor Straight 4 Position Receptacle; Connector Type B:Free Ends; Cable Length - Metric:5m; Cable Length - Imperial:16.4ft; Product Range:XZ Series; SVHC:No SVHC (12-Jan-2017)

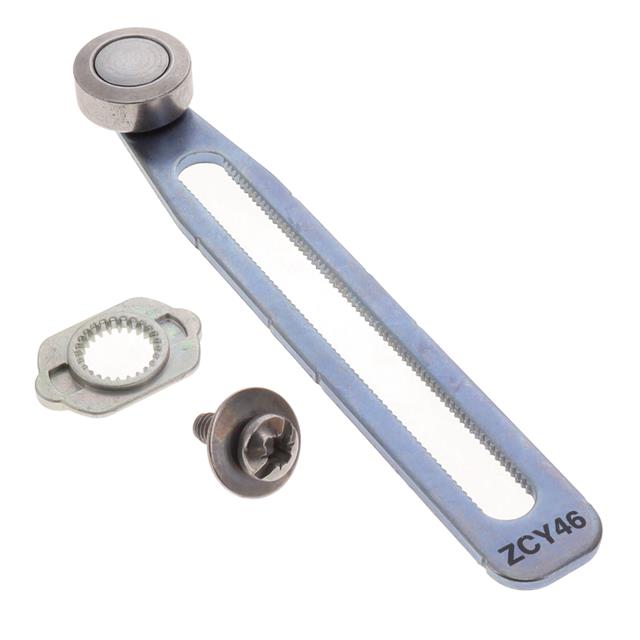

OPERATING LEVER; For Use With:Osiswitch Limit Switches; IP / NEMA Rating:-; Product Range:-; Actuator Type:Adj. Steel Roller Lever

LIMIT SWITCH WITH LEDS & M12 BUS CONNECTIVITY

SENSOR INDUCTIVE 20MM 12-24VDC; Sensing Range Max:20mm; Thread Size - Metric:-; Sensor Output:PNP; Supply Voltage DC Min:12V; Supply Voltage DC Max:24V; Product Range:OsiSense XS; Sensor Housing:Rectangular; Sensor Input:Inductive;RoHS Compliant: Yes

LMT SWITCH 240VAC 3A METAL XCKD

LIMIT SWITCH 1NO/1NC 240VAC 250VDC 10A; Limit Switch Actuator:Roller Lever; Contact Configuration:SPDT-1NO SPDT-NC; Contact Current AC Max:10A; Contact Voltage AC Max:240V; Operating Force Max:0.1N; Product Range:- ;RoHS Compliant: Yes

SAFETY INTERLOCK SWITCH 240V; Product Range:-; Contact Configuration:3PST-2NC SPST-NO; Switch Terminals:Wire Leaded; Contact Voltage AC Max:240V; Contact Current AC Max:5A; Contact Voltage DC Max:-; Contact Current DC Max:- ;RoHS Compliant: Yes

INDUCTIVE SENSOR 30VDC 200MA XS

INDUCTIVE PROXIMITY SENSOR 0-2.5MM 12-24 VDC; Sensing Range Max:2.5mm; Thread Size - Metric:M12; Sensor Output:NPN; Supply Voltage DC Min:12V; Supply Voltage DC Max:24V; Product Range:OsiSense XS; Sensor Housing:Cylindrical ;RoHS Compliant: Yes

PROXIMITY SENSOR 30MM DC 2 WIRE XS5
