LIMIT SWITCH ROLLER PLUNGER; Limit Switch Actuator:Roller Plunger; Contact Configuration:1NO / 1NC; Contact Current AC Max:10A; Contact Voltage AC Max:240V; Operating Force Max:12N; Product Range:XCKD Series; Contact Current DC Max:10A; Contact Voltage DC Max:250V; Actuator Type:Roller Plunger; Contact Current AC:1.5A; Contact Current Rating:10A; External Depth:30mm; External Length / Height:73mm; External Width:30mm; Fixing Centres:20mm; IP / NEMA Rating:IP66; Operating Temperature Max:70°C; Operating Temperature Min:-25°C; Operating Voltage:240V; Standard:EN50047 IEC 947-5-1; Switch Operation:Off-On; Switch Terminals:Screw

LIMIT SW SPST-NO/NC LEVER 3A 240V; Limit Switch Actuator:Rod Lever; Contact Configuration:SPST-NO SPST-NC; Contact Current AC Max:3A; Contact Voltage AC Max:240V; Operating Force Max:0.25N-m; Product Range:OsiSense XC Series; Contact Current DC Max:270mA; Contact Voltage DC Max:250V; SVHC:No SVHC (12-Jan-2017)

LIMIT SW SPST-NO/NC PLUNGER 3A 50V; Limit Switch Actuator:Roller Plunger; Contact Configuration:SPST-NO SPST-NC; Contact Current AC Max:3A; Contact Voltage AC Max:50V; Operating Force Max:16N; Product Range:OsiSense XC Series; Contact Current DC Max:270mA; Contact Voltage DC Max:50V; SVHC:No SVHC (12-Jan-2017)

LIMIT SWITCH ADJ ROLLER LEVER; Limit Switch Actuator:Adjustable Roller Lever; Contact Configuration:1NO / 1NC; Contact Current AC Max:10A; Contact Voltage AC Max:240V; Operating Force Max:10N; Product Range:XCKP Series; Contact Current DC Max:10A; Contact Voltage DC Max:250V; Actuation Type:Adjustable Roller Lever; Contact Current Rating:10A; External Depth:30mm; External Length / Height:73mm; External Width:30mm; Fixing Centres:20mm; IP / NEMA Rating:IP66; Operating Temperature Max:70°C; Operating Temperature Min:-25°C; Operating Voltage:240V; Standard:EN50047 IEC 947-5-1; Switch Operation:Off-On; Switch Terminals:Screw

LIMIT SWITCH SPST-NO/NC 6A 240VAC; Limit Switch Actuator:Plunger; Contact Configuration:SPST-NO SPST-NC; Contact Current AC Max:6A; Contact Voltage AC Max:240V; Operating Force Max:0.06N-m; Product Range:OsiSense XC Series; Contact Current DC Max:6A; Contact Voltage DC Max:250V; SVHC:No SVHC (17-Dec-2015)

SAFETY INTERLOCK SW SPST/SPST 24VDC; Product Range:Preventa XCS Series; Contact Configuration:SPST-NO SPST-NC; Switch Terminals:Cable; Contact Voltage AC Max:-; Contact Current AC Max:-; IP Rating:IP67; Contact Voltage DC Max:24V; Contact Current DC Max:100A; SVHC:No SVHC (12-Jan-2017)

SWITCH KEY SAFETY INTERLOCK SWITCH; For Use With:Schneider XCSPA & XCSTA Series Safety Interlock Switches; Product Range:Preventa XCS Series; SVHC:No SVHC (12-Jan-2017)

CODED MAGNET 0.1A SAFETY INTERLOCK SW; Product Range:Preventa XCS Series; Contact Configuration:-; Switch Terminals:Cable; Contact Voltage AC Max:-; Contact Current AC Max:-; IP Rating:IP66 IP67; Contact Voltage DC Max:24V; Contact Current DC Max:100mA; SVHC:No SVHC (12-Jan-2017)

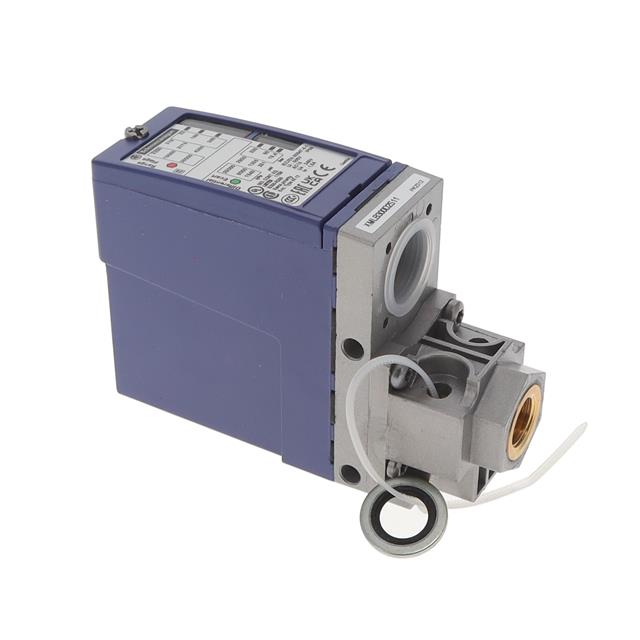

PRESSURE SWITCH 0.042-0.33BAR SPDT; Pressure Fitting Style:G 1/4" BSP; Operating Pressure Min:0.042bar; Operating Pressure Max:0.33bar; Contact Configuration:SPDT; Sensor Mounting:Panel Mount; Electrical Connection:Screw Clamp Terminals; Switching Voltage DC Resistive:250V; Switching Current DC Resistive:100mA; Product Range:OsiSense XM Series; SVHC:No SVHC (12-Jan-2017)

PRESSURE SENSOR ANALOGUE 0BAR 24VDC; Operating Pressure Max:0bar; Sensor Output:Analogue; Pressure Measurement Type:Differential; Voltage Rating:24VDC; Port Style:G1/4 (1/4" BSP); Supply Current:20mA; Product Range:OsiSense XM Series; SVHC:No SVHC (12-Jan-2017)

PRESSURE SWITCH 1-6BAR DPST-NC; Pressure Fitting Style:G 1/4" BSP; Operating Pressure Min:1bar; Operating Pressure Max:6bar; Contact Configuration:DPST-NC; Sensor Mounting:Cable; Electrical Connection:Screw Clamp Terminals; Switching Voltage DC Resistive:-; Switching Current DC Resistive:-; Product Range:OsiSense XM Series; SVHC:No SVHC (12-Jan-2017)

INDUCTIVE PROXIMITY SENSOR 4MM 24VDC; Sensing Range Max:4mm; Thread Size - Metric:M12 x 1; Sensor Output:PNP; Supply Voltage DC Min:12VDC; Supply Voltage DC Max:24VDC; Product Range:OsiSense XS Series; SVHC:No SVHC (07-Jul-2017)

INDUCTIVE PROXIMITY SENSOR 4MM 24VDC; Sensing Range Max:4mm; Thread Size - Metric:M12; Sensor Output:NPN; Supply Voltage DC Min:12V; Supply Voltage DC Max:24V; Product Range:OsiSense XS Series; SVHC:No SVHC (17-Dec-2015)

INDUCTIVE PROXIMITY SENSOR 5MM 240VDC; Sensing Range Max:5mm; Thread Size - Metric:M18 x 1; Sensor Output:-; Supply Voltage DC Min:24V; Supply Voltage DC Max:240V; Product Range:OsiSense XS Series; SVHC:No SVHC (12-Jan-2017)

PROXIMITY SWITCH 2 WIRE 24-240V 8MM; Sensing Range Max:8mm; Thread Size - Metric:M18; Sensor Output:SPST-NO; Supply Voltage DC Min:20V; Supply Voltage DC Max:264V; Product Range:OsiSense XS 618 Series; Lead Length:2m; Operating Temperature Max:70°C; Operating Temperature Min:-25°C; Sensor Input:Inductive; Thread Size:M18

SENSOR 12-48VDC M18 PNP 2M CABLE; Sensing Range Max:8mm; Thread Size - Metric:M18; Sensor Output:PNP; Supply Voltage DC Min:12V; Supply Voltage DC Max:48V; Product Range:OsiSense XS 618 Series; Sensor Input:Inductive

INDUCTIVE PROXIMITY SENSOR 22MM 240VDC; Sensing Range Max:22mm; Thread Size - Metric:M30 x 1.5; Sensor Output:-; Supply Voltage DC Min:24V; Supply Voltage DC Max:240V; Product Range:OsiSense XS Series; SVHC:No SVHC (12-Jan-2017)

INDUCTIVE PROXIMITY SENSOR 22MM 48VDC; Sensing Range Max:22mm; Thread Size - Metric:M30 x 1.5; Sensor Output:PNP; Supply Voltage DC Min:12V; Supply Voltage DC Max:48V; Product Range:OsiSense XS Series; SVHC:No SVHC (12-Jan-2017)

INDUCTIVE PROXIMITY SENSOR 15MM 24VDC; Sensing Range Max:15mm; Thread Size - Metric:-; Sensor Output:PNP; Supply Voltage DC Min:12V; Supply Voltage DC Max:24V; Product Range:OsiSense XS Series; SVHC:No SVHC (17-Dec-2015)

INDUCTIVE PROXIMITY SENSOR 15MM 240VDC; Sensing Range Max:15mm; Thread Size - Metric:-; Sensor Output:SPST-NO / SPST-NC; Supply Voltage DC Min:24V; Supply Voltage DC Max:240V; Product Range:OsiSense XS Series; SVHC:No SVHC (17-Dec-2015)
