REVERSING CONTACTOR

CABLE PULL SWITCH 300VAC 10A XY2CE

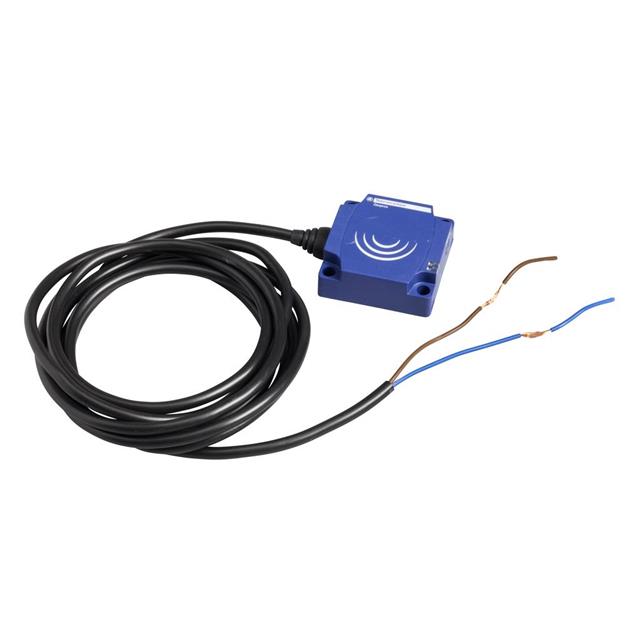

PROXIMITY SENSOR SZ C AC/DC XS8

INDUCTIVE PROXIMITY SENSOR 0-2.5MM 12-24 VDC; Sensing Range Max:2.5mm; Supply Voltage DC Min:12V; Supply Voltage DC Max:24V; Sensor Input:Inductive; Sensor Output:PNP

INDUCTIVE PROXIMITY SENSOR 0-2.5MM 12-24 VDC; Sensing Range Max:2.5mm; Supply Voltage DC Min:12V; Supply Voltage DC Max:24V; Sensor Input:Inductive; Sensor Output:PNP

INDUCTIVE PROXIMITY SENSOR 2MM-4MM 12VDC-48VDC; Sensing Range Max:4mm; Supply Voltage DC Min:12V; Supply Voltage DC Max:48V; Sensor Input:Inductive; Sensor Output:NPN

LOAD BREAK SWITCH 12A; Contact Current AC Max:12A; Contact Voltage AC Max:690V; No. of Poles:3 Pole; Product Range:-; Approval Bodies:CSA GL UL; Current Rating:12A; Depth Max:330mm; Depth Min:300mm; External Length / Height:56mm; External Width:56mm; Main Contact Current AC3 Max:8.1A; Operating Temperature Max:50°C; Operating Temperature Min:-20°C; Switching AC3 Power Max:4kW; Voltage Rating:690V; Voltage Rating AC Max:690V

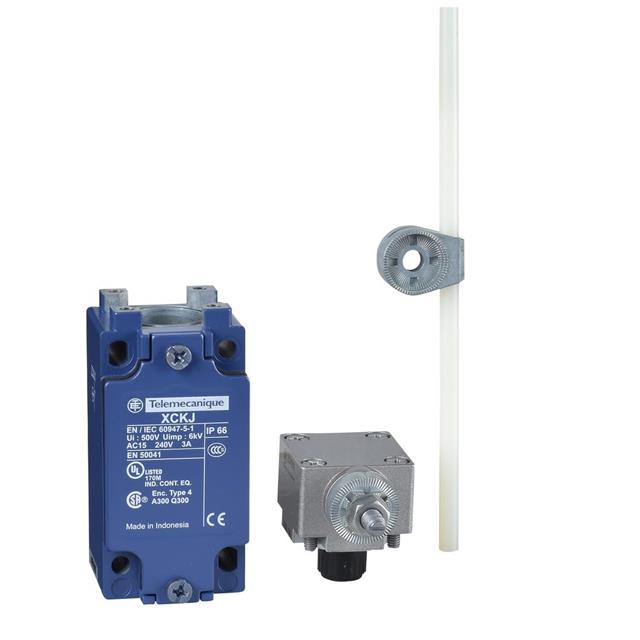

LIMIT SW SPST-NO/NC LEVER 3A 240V; Limit Switch Actuator:Rod Lever; Contact Configuration:SPST-NO SPST-NC; Contact Current AC Max:3A; Contact Voltage AC Max:240V; Operating Force Max:0.25N-m; Product Range:OsiSense XC Series; Contact Current DC Max:270mA; Contact Voltage DC Max:250V; SVHC:No SVHC (12-Jan-2017)

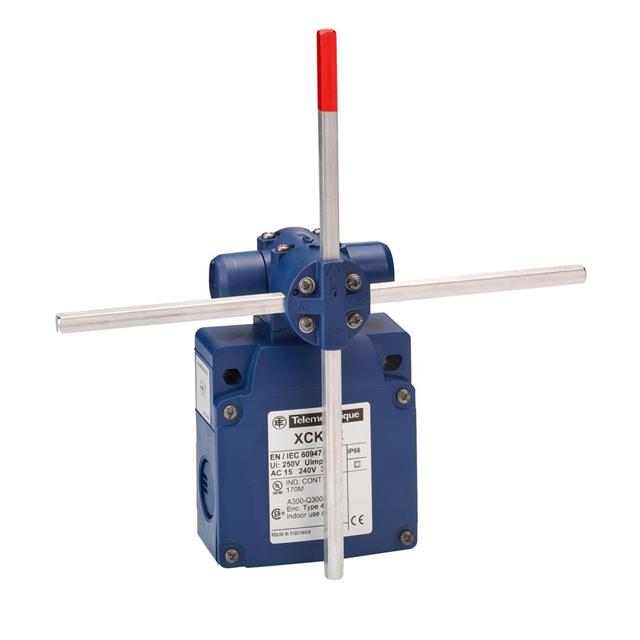

LIMIT SW 4PST-NC ROD LEVER 3A 240VAC; Limit Switch Actuator:Rod Lever; Contact Configuration:4PST-NC; Contact Current AC Max:3A; Contact Voltage AC Max:240V; Operating Force Max:0.5N-m; Product Range:OsiSense XC Series; Contact Current DC Max:550mA; Contact Voltage DC Max:250V; SVHC:No SVHC (12-Jan-2017)

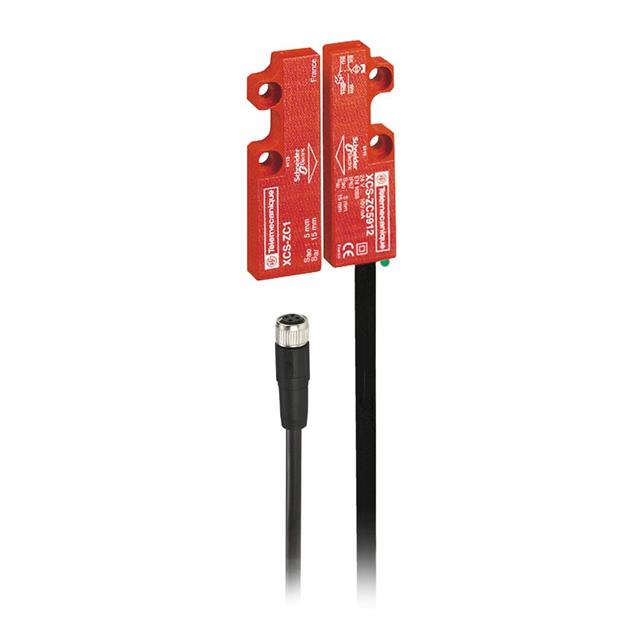

SAFETY INTERLOCK SW SPST/SPST 24VDC; Product Range:Preventa XCS Series; Contact Configuration:SPST-NO SPST-NC; Switch Terminals:Cable; Contact Voltage AC Max:-; Contact Current AC Max:-; IP Rating:IP67; Contact Voltage DC Max:24V; Contact Current DC Max:100A; SVHC:No SVHC (12-Jan-2017)

SAFETY INTERLOCK SW DPST-NC 24VDC; Product Range:Preventa XCS Series; Contact Configuration:DPST-NC; Switch Terminals:Cable; Contact Voltage AC Max:-; Contact Current AC Max:-; IP Rating:IP67; Contact Voltage DC Max:24V; Contact Current DC Max:100A; SVHC:No SVHC (12-Jan-2017)

SAFETY INTERLOCK SWITCH DPST-NC/SPST-NO; Product Range:XCS-TA Series; Contact Configuration:DPST-NC SPST-NO; Switch Terminals:Screw Clamp; Contact Voltage AC Max:120V; Contact Current AC Max:6A; IP Rating:IP67

SAFETY INTERLOCK SW DPST-NC 3A 120V; Product Range:Preventa XCS Series; Contact Configuration:DPST-NC; Switch Terminals:Screw; Contact Voltage AC Max:120V; Contact Current AC Max:3A; IP Rating:IP67; Contact Voltage DC Max:125V; Contact Current DC Max:550mA; SVHC:No SVHC (12-Jan-2017)

ACTUATOR STRAIGHT; For Use With:XCSA/B/C/E Safety Switches; IP / NEMA Rating:-; Product Range:-

CONTACT BLOCK; Switch Terminals:Screw Clamp; No. of Poles:2 Pole; Contact Current Max:3A; Contact Voltage AC Max:240V; For Use With:Osiswitch Limit Switches; Contact Voltage DC Max:-; Product Range:-; Contact Configuration:1NO / 1NC; Contact Current Rating:10A

PRESSURE SWITCH -1 TO -0.14BAR SPDT; Pressure Fitting Style:G 1/4" BSP; Operating Pressure Min:-1bar; Operating Pressure Max:-0.14bar; Contact Configuration:SPDT; Sensor Mounting:Panel Mount; Electrical Connection:Screw Clamp Terminals; Switching Voltage DC Resistive:250V; Switching Current DC Resistive:100mA; Product Range:OsiSense XM Series; SVHC:No SVHC (12-Jan-2017)

PRESSURE TRANSMITTER 2.5BAR G1/4 24V; Operating Pressure Max:2.5bar; Sensor Output:Analogue; Pressure Measurement Type:-; Voltage Rating:24VDC; Port Style:G1/4; Supply Current:7mA; Product Range:OsiSense XM Series; SVHC:No SVHC (07-Jul-2017)

PRESSURE SWITCH 1.3-12BAR DPST-NC; Pressure Fitting Style:G 1/4" BSP; Operating Pressure Min:1.3bar; Operating Pressure Max:12bar; Contact Configuration:DPST-NC; Sensor Mounting:Cable; Electrical Connection:Screw Clamp Terminals; Switching Voltage DC Resistive:-; Switching Current DC Resistive:-; Product Range:OsiSense XM Series; SVHC:No SVHC (12-Jan-2017)

PRESSURE SWITCH 1-6BAR SPDT; Pressure Fitting Style:G 1/4" BSP; Operating Pressure Min:1bar; Operating Pressure Max:6bar; Contact Configuration:SPDT; Sensor Mounting:-; Electrical Connection:Screw Clamp Terminals; Switching Voltage DC Resistive:-; Switching Current DC Resistive:-; Product Range:OsiSense XM Series; SVHC:No SVHC (17-Dec-2015)

PROXIMITY SWITCH M18 PNP; Sensing Range Max:10mm; Thread Size - Metric:M18; Sensor Output:PNP; Supply Voltage DC Min:10V; Supply Voltage DC Max:38V; Product Range:OsiSense XS 1N Series; Frequency Response Max:1kHz; Sensing Range:0mm to 10mm; Sensor Input:Inductive; Supply Voltage Range DC:10V to 38V
