CLF6045NIT-470M-D.
Part Number : CLF6045NIT-470M-D.
TDK CorporationInductor, 47Uh, 1.4A, 20%, Shielded; Inductance:47Μh; Rms Current (Irms):1.4A; Inductor Construction:Shielded; Saturation Current (Isat):970Ma; Product Range:Clf-Ni-D Series; Power Inductor Case:6.3Mm X 6.3Mm X 4.5Mm; Dc Resistance Rohs Compliant: Yes |Tdk CLF6045NIT-470M-D.

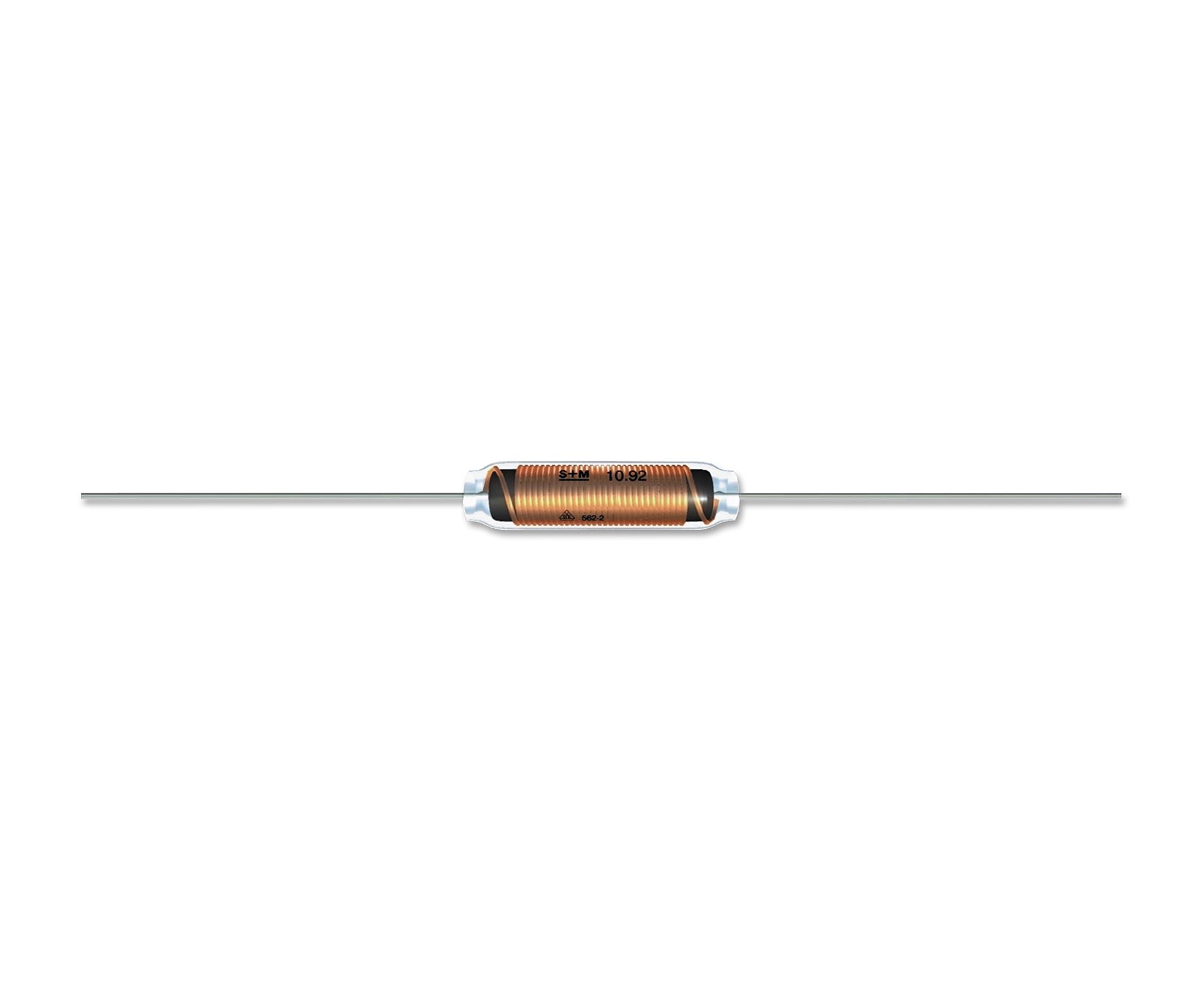

B82131A5202M000
Part Number : B82131A5202M000
TDK CorporationInductor, 3Uh, 2A, 20%, Full Reel; Product Range:B82131 Series; Inductance:3 H; Inductance Tolerance: 20%; Dc Resistance Max:0.09Ohm; Dc Current Rating:2A; Self Resonant Frequency Min:113Mhz; Packaging:Full Reel; Current Rating:2A; Rohs Compliant: Yes |Tdk B82131A5202M000
B82422T1334K000
Part Number : B82422T1334K000
TDK CorporationInd, 330Uh, 0.04A, Unshielded; Inductance:330Μh; Dc Resistance Max:-; Self Resonant Frequency:4Mhz; Dc Current Rating:40Ma; Inductor Case/Package:1210 [3225 Metric]; Product Range:B82422T Simid Series; Inductance Tolerance:± 10% Rohs Compliant: Yes |Tdk B82422T1334K000

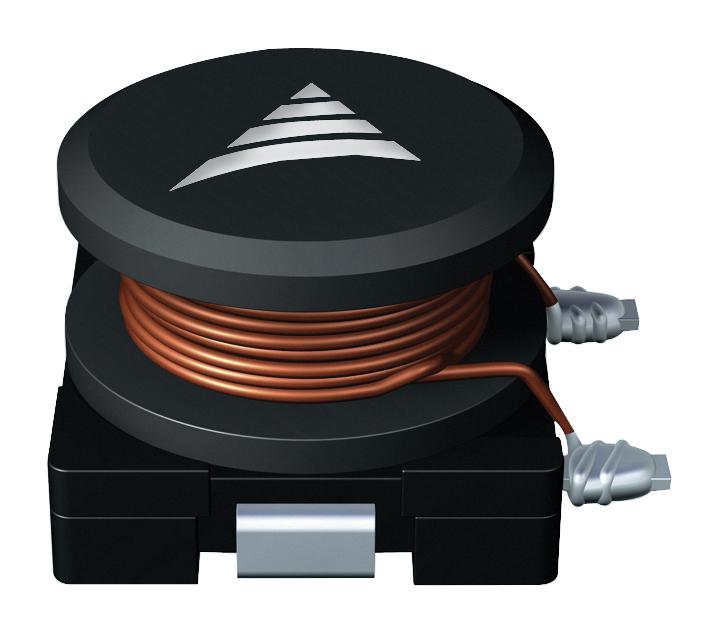

B82478A1334M000
Part Number : B82478A1334M000
TDK CorporationSmd Power Ind, 330Uh, 0.8A, 20%; Inductance:330Μh; Rms Current (Irms):800Ma; Inductor Construction:-; Saturation Current (Isat):-; Product Range:B82478 Series; Inductor Case/Package:-; Dc Resistance Max:1.15Ohm; Product Length:14Mmrohs Compliant: Yes |Tdk B82478A1334M000
B72207S271K101.
Part Number : B72207S271K101.
TDK CorporationVaristor, Mov, 710V, Disc 7Mm; Voltage Rating Vac:275V; Voltage Rating Vdc:350V; Product Range:Standard B722 Series; Clamping Voltage Vc Max:710V; Varistor Case Style:Disc 7Mm; Peak Surge Current @ 8/20Μs:1.2Ka Rohs Compliant: Yes |Tdk B72207S271K101.
B41550E9228Q000
Part Number : B41550E9228Q000
TDK CorporationCap, Alu Elec, 2200Uf, 100V, Screw; Capacitance:2200Μf; Voltage(Dc):100V; Voltage(Ac):-; Capacitance Tolerance:-10%, +30%; Capacitor Terminals:Screw; Lifetime @ Temperature:10000 Hours @ 105°C; Polarity:Polar; Product Diameter:35.7Mmrohs Compliant: Yes |Tdk B41550E9228Q000
B25673A4252A040
Part Number : B25673A4252A040
TDK CorporationCap, Power Film, 137.1Uf, 440V, Can; Dielectric Type:Metallized Pp; Capacitor Case/Package:-; Capacitance:137.1Μf; Capacitance Tolerance:-5%, +10%; Typical Applications:Three-Phase Pfc; Capacitor Mounting:Stud Mount - M12; Esr:- Rohs Compliant: Yes |Tdk B25673A4252A040
B72510V0040M062
Part Number : B72510V0040M062
TDK CorporationVaristor, Mov, 19V, 0805; Voltage Rating Vac:4V; Voltage Rating Vdc:5.5V; Product Range:Standard Series; Clamping Voltage Vc Max:19V; Varistor Case Style:0805 [2012 Metric]; Peak Surge Current @ 8/20Μs:100A Rohs Compliant: Yes |Tdk B72510V0040M062
B72510V0110K062
Part Number : B72510V0110K062
TDK CorporationVaristor, Mov, 35V, 0805; Voltage Rating Vac:11V; Voltage Rating Vdc:14V; Product Range:-; Clamping Voltage Vc Max:35V; Varistor Case Style:0805 [2012 Metric]; Peak Surge Current @ 8/20Μs:120A; Operating Temperature Min:-55°C Rohs Compliant: Yes |Tdk B72510V0110K062
B72650M301K72.
Part Number : B72650M301K72.
TDK CorporationVaristor, Mov, 775V, 3225; Voltage Rating Vac:300V; Voltage Rating Vdc:385V; Product Range:Standard Series; Clamping Voltage Vc Max:775V; Varistor Case Style:3225 [8063 Metric]; Peak Surge Current @ 8/20Μs:400A Rohs Compliant: Yes |Tdk B72650M301K72.

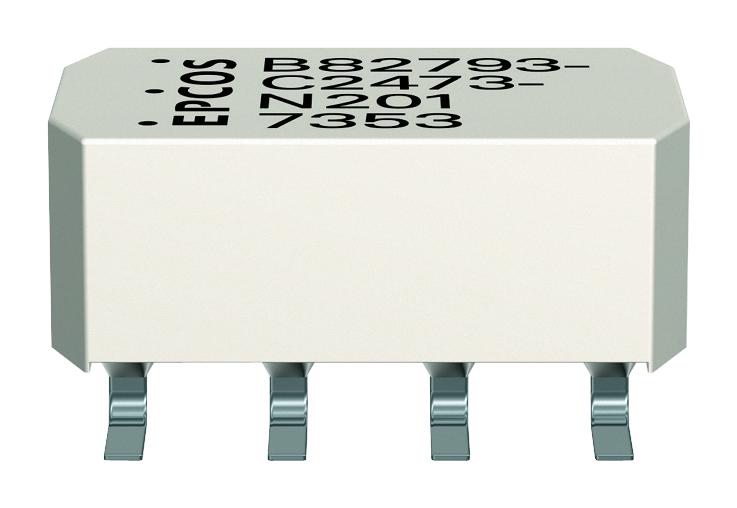

B82793C2113N201
Part Number : B82793C2113N201
TDK CorporationChoke, Common Mode, 0.011Mh, 0.2A; Dc Current Rating:200Ma; Inductance:11Μh; Product Range:B82793C2 Series; Impedance:-; Inductor Case/Package:-; Product Length:10Mm; Product Width:7.1Mm; Product Height:4.8Mm; Qualification:- Rohs Compliant: Yes |Tdk B82793C2113N201
B72214S131K101.
Part Number : B72214S131K101.
TDK CorporationVaristor, Mov, 340V, Disc 14Mm; Voltage Rating Vac:130V; Voltage Rating Vdc:170V; Product Range:Standard B722 Series; Clamping Voltage Vc Max:340V; Varistor Case Style:Disc 14Mm; Peak Surge Current @ 8/20Μs:4.5Ka Rohs Compliant: Yes |Tdk B72214S131K101.
B72220S621K101.
Part Number : B72220S621K101.
TDK CorporationVaristor, Mov, 1.65Kv, Disc 20Mm; Voltage Rating Vac:625V; Voltage Rating Vdc:825V; Product Range:Standard B722 Series; Clamping Voltage Vc Max:1.65Kv; Varistor Case Style:Disc 20Mm; Peak Surge Current @ 8/20Μs:6.5Ka Rohs Compliant: Yes |Tdk B72220S621K101.
B32362A3307J030
Part Number : B32362A3307J030
TDK CorporationCap, Film, 100Uf, 5%, 350Vac, 675Vdc; Dielectric Type:Metallized Pp; Capacitor Case/Package:Can; Capacitance:300Μf; Capacitance Tolerance:± 5%; Voltage(Ac):460V; Voltage(Dc):900V; Capacitor Mounting:Stud Mount - M12 Rohs Compliant: Yes |Tdk B32362A3307J030
B57431V2473J062
Part Number : B57431V2473J062
TDK CorporationNtc Thermistor, Chip, 47Kohm, 4470K, Smd; Thermistor Type:Chip; Resistance (25°C):47Kohm; Product Range:B57Xxxv2 Series; B-Constant:4470K; B-Constant Tolerance:± 3%; Probe Material:-; Lead Length:-; Operating Temperature Min:-55°C Rohs Compliant: Yes |Tdk B57431V2473J062
B32561J1684K000
Part Number : B32561J1684K000
TDK CorporationFilm Capacitor, 0.68Uf, 100V, Radial; Dielectric Type:Metallized Pet Stacked; Capacitor Case/Package:-; Capacitance:0.68Μf; Capacitance Tolerance:± 10%; Voltage(Ac):63V; Voltage(Dc):100V; Capacitor Mounting:Through Hole Rohs Compliant: Yes |Tdk B32561J1684K000
B81122C1152M
Part Number : B81122C1152M
TDK CorporationSuppression Cap, 1500Pf, Class Y2, 250V; Dielectric Type:Metallized Pp; Capacitor Case/Package:Radial Box - 2 Pin; Capacitance:1500Pf; Capacitance Tolerance:± 20%; Suppression Class:Y2; Capacitor Mounting:Through Hole Rohs Compliant: Yes |Tdk B81122C1152M
B32529C105J.
Part Number : B32529C105J.
TDK CorporationDielectric Type:Metallized Pet Stacked; Capacitor Case/Package:Radial Box - 2 Pin; Capacitance:1Μf; Capacitance Tolerance:± 5%; Voltage(Ac):-; Voltage(Dc):63V; Capacitor Mounting:Through Hole; Capacitor Terminals:Pc Pin Rohs Compliant: Yes |Tdk B32529C105J.
