LED MOD, 6.7W, 340LM, 4000K, CRI 94; Product Range:Zenigata Series; LED Module Type:Board + LED; LED Colour:Neutral White; CCT:4260K; Luminous Flux @ Test:340lm; Luminous Flux @ Max:-; Power Rating:6.7W; Supply Voltage:10.2V; Forward Current @ Test:640mA; Power Module Configuration:Square; Operating Temperature Min:-30°C; Operating Temperature Max:90°C; MSL:-; Colour Rendering Index:94; Forward Current If:700mA; Forward Current If Max:700mA; Forward Voltage @ Test:10.2V; Forward Voltage VF Max:11.5V; LED Mounting:Screw; Luminous Flux:340lm; Luminous Flux Min:250lm; No. of Pins:2Pins; Operating Temperature Range:-30°C to +90°C; Power @ Test:6.5W; Power Dissipation Pd:8W; Reverse Protection Voltage:-15V

LED MOD, 6.7W, 355LM, 2700K, CRI 87; Product Range:MINI ZENIGATA Series; LED Module Type:Board + LED; LED Colour:Warm White; CCT:2800K; Luminous Flux @ Test:355lm; Luminous Flux @ Max:-; Power Rating:6.7W; Supply Voltage:10.2V; Forward Current @ Test:640mA; Power Module Configuration:Square; Operating Temperature Min:-30°C; Operating Temperature Max:90°C; MSL:-; Colour Rendering Index:87; Forward Current If:700mA; Forward Current If Max:700mA; Forward Voltage @ Test:10.2V; Forward Voltage VF Max:11.5V; Luminous Flux:355lm; Luminous Flux Min:275lm; No. of Pins:2Pins; Operating Temperature Range:-30°C to +90°C; Power @ Test:6.5W; Power Dissipation Pd:8W; Reverse Protection Voltage:-15V

DOUBLEDOME, 0.5W, 37LM, 5700K, CRI85; Product Range:-; LED Colour:White; Viewing Angle:-; Luminous Flux @ Test:50lm; CCT:-; Forward Current If Max:240mA; Forward Voltage @ Test:3.65V; Forward Current @ Test:220mA; Power Dissipation Pd:912mW; Colour Rendering Index:85; Forward Current If:240mA; Forward Voltage:3.65V; Forward Voltage VF Max:3.8V; LED Mounting:SMD; Lens Shape:Dome; Luminous Flux:37lm; No. of Pins:2Pins; Operating Temperature Max:100°C; Operating Temperature Min:-30°C; Operating Temperature Range:-30°C to +100°C; Power @ Test:0.8W; Reverse Protection Voltage:5V

LED, PLCC4, 15LM, 5700K, 5800MCD; LED Colour:Cool White; LED Mounting:SMD; Bulb Size:-; Forward Current If:30mA; Forward Voltage:3.2V; Luminous Intensity:5.8cd; Viewing Angle:-; Lens Shape:Round; Product Range:-; Automotive Qualification Standard:-; MSL:-; Reverse Protection Voltage:5V

LED, PLCC4, 12LM, 11500K, 5100MCD; LED Colour:Cool White; LED Mounting:SMD; Bulb Size:-; Forward Current If:30mA; Forward Voltage:3.2V; Luminous Intensity:5.1mcd; Viewing Angle:-; Lens Shape:Round; Product Range:-; Automotive Qualification Standard:-; MSL:-; CCT:11500K; Forward Current @ Test:20mA; Forward Current If Max:30mA; Forward Voltage @ Test:3.2V; Forward Voltage VF Max:3.5V; Luminous Flux:12lm; Luminous Flux @ Test:12lm; Luminous Intensity @ Test:5.1mcd; Luminous Intensity Typ:5100mcd; No. of Pins:4Pins; Operating Temperature Max:100°C; Operating Temperature Min:-30°C; Operating Temperature Range:-30°C to +100°C; Power @ Test:0.1W; Power Dissipation Pd:300mW; Reverse Protection Voltage:5V

LED, MINIZENI, 4W, PURE WHT, 5000K; Product Range:-; LED Module Type:-; LED Colour:Cool White; CCT:5000K; Luminous Flux @ Test:320lm; Luminous Flux @ Max:-; Power Rating:-; Supply Voltage:-; Forward Current @ Test:400mA; Power Module Configuration:-; Operating Temperature Min:-30°C; Operating Temperature Max:90°C; MSL:-; Forward Current If Max:440mA; Forward Voltage @ Test:9.9V; LED Mounting:SMD; No. of Pins:2Pins; Operating Temperature Range:-30°C to +90°C; Power @ Test:4W; Power Dissipation Pd:4W

LED, MINIZENI, 7W, WARM WHT, 3000K; Product Range:MINI ZENIGATA Series; LED Colour:Warm White; Viewing Angle:-; Luminous Flux @ Test:525lm; CCT:3025K; Forward Current If Max:600mA; Forward Voltage @ Test:13.1V; Forward Current @ Test:520mA; Power Dissipation Pd:6.8W; LED Mounting:SMD; No. of Pins:2Pins; Operating Temperature Max:90°C; Operating Temperature Min:-30°C; Operating Temperature Range:-30°C to +90°C; Power @ Test:6.8W

LED, MEGAZENI, 25W, WARM WHT, 3000K; LED Colour:Warm White; LED Mounting:SMD; Bulb Size:-; Forward Current If:-; Forward Voltage:-; Luminous Intensity:-; Viewing Angle:120°; Lens Shape:-; Product Range:-; Automotive Qualification Standard:-; MSL:-; CCT:3025K; Forward Current @ Test:700mA; Forward Current If Max:840mA; Forward Voltage @ Test:37V; Luminous Flux @ Test:2370lm; No. of Pins:2Pins; Operating Temperature Max:100°C; Operating Temperature Min:-30°C; Operating Temperature Range:-30°C to +100°C; Power @ Test:25.9W; Power Dissipation Pd:33.6W

LED, MEGAZENI, 25W, WARM WHT, 3000K; Product Range:Mega-Zenigata Series; LED Colour:Warm White; Viewing Angle:120°; Luminous Flux @ Test:1950lm; CCT:3150K; Forward Current If Max:840mA; Forward Voltage @ Test:37V; Forward Current @ Test:700mA; Power Dissipation Pd:33.6W; LED Mounting:SMD; No. of Pins:2Pins; Operating Temperature Max:100°C; Operating Temperature Min:-30°C; Operating Temperature Range:-30°C to +100°C; Power @ Test:25.9W

MEGAZENI WHITE / 50W, 2700K; LED Colour:White; LED Mounting:-; Bulb Size:-; Forward Current If:-; Forward Voltage:-; Luminous Intensity:-; Viewing Angle:-; Lens Shape:-; Product Range:-; Automotive Qualification Standard:-; MSL:MSL 1 - Unlimited

FIBER OPTIC TRANSMITTER; Wavelength Typ:-; Data Rate Max:13.2Mbps; Data Transmission Distance:-; Forward Current If:-; Forward Voltage:-; Reverse Voltage Vr:-; Signal Rate Max:-; Fibre Optic Connector Type:-; Product Range:-; External Depth:11mm; External Length / Height:19mm; External Width:12mm; Lead Spacing:2.54mm; Operating Temperature Max:+70°C; Operating Temperature Min:-20°C; Peak Wavelength:660nm; Supply Voltage:5V; Supply Voltage Max:5.25V; Supply Voltage Min:4.75V

LED, 280LM, N-WHITE; LED Colour:Cool White; LED Mounting:SMD; Bulb Size:-; Forward Current If:400mA; Viewing Angle:120°; MSL:-; CCT:5000K; External Depth:18mm; External Length / Height:1.5mm; External Width:18mm; Forward Current @ Test:360mA; Forward Current If Max:400mA; Forward Voltage @ Test:10.2V; Forward Voltage VF Max:11.5V; Luminous Flux:280lm; Luminous Flux @ Test:280lm; Luminous Flux Min:220lm; Luminous Flux Typ:280lm; No. of Pins:2Pins; Operating Temperature Max:90°C; Operating Temperature Min:-30°C; Operating Temperature Range:-30°C to +90°C; Power @ Test:3.7W; Power Dissipation Pd:4.4W; Reverse Protection Voltage:-5V; Voltage Vf Min:8.5V; Voltage Vf Typ:10.2V

LED, 190LM, HI COL 5000; Product Range:-; LED Module Type:Board + LED; LED Colour:Cool White; CCT:5300K; Luminous Flux @ Test:190lm; Luminous Flux @ Max:-; Power Rating:3.6W; Supply Voltage:10.2V; Forward Current @ Test:360mA; Power Module Configuration:Square; Operating Temperature Min:-30°C; Operating Temperature Max:90°C; MSL:-; External Depth:18mm; External Length / Height:1.5mm; External Width:18mm; Forward Current If:400mA; Forward Current If Max:400mA; Forward Voltage VF Max:11.5V; Luminous Flux:190lm; Luminous Flux Min:135lm; Luminous Flux Typ:190lm; No. of Pins:2Pins; Operating Temperature Range:-30°C to +90°C; Reverse Protection Voltage:-5V; Voltage Vf Min:8.5V; Voltage Vf Typ:10.2V

LCD, TFT, 5.7" VGA LED; Display Size:5.7"; Resolution:640 x 480; VGA Size:VGA; Display Orientation:Landscape; Display Appearance:RGB; Logic Voltage:3.3V; Interface Type:RGB; Display Brightness:400cd/m²; Touchscreen:No Touchscreen; Module Size:144mm x 104.6mm; Operating Temperature Min:-20°C; Operating Temperature Max:70°C; Display Pinout:33 Way FFC; Product Range:-

Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color LVDS 12.1" (307.34mm) 800 x 600 (SVGA)

Dust Sensor

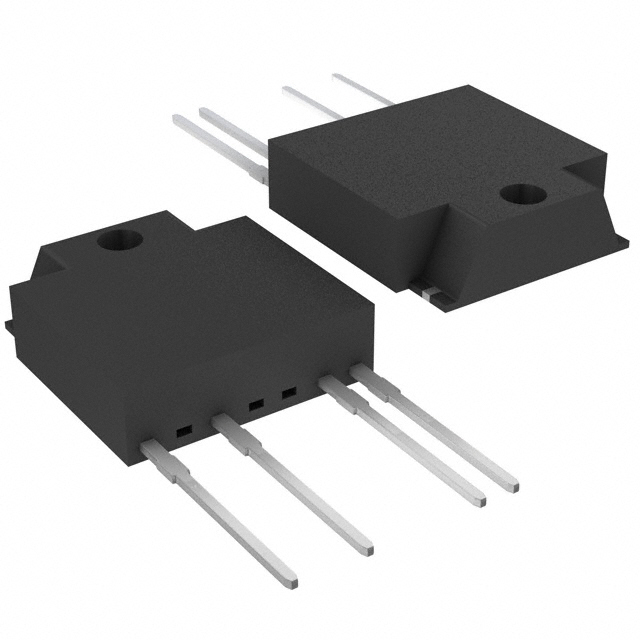

Optocoupler Triac-OUT Single 600V 6-Pin DIP Bag

Mini-flat-4 / Phototriac Coupler 200 V lines, compact, Built-in zero-cross circuit

7INCH TFT LCD 1280 X 720 LVDS8BIT

Reflective Optical Sensor 0.039" ~ 0.354" (1mm ~ 9mm) ADJ Black Paper, Kodak® Gray Card, White Paper Module, Connector
