SWITCH THERMAL N/C 110°C; Switching Temperature:110°C; Reset Temperature:80°C; Contact Operation:Normally Closed; Sensor Terminals:Through Hole; Sensor Housing:TO-220; Contact Rating:1A @ 120V ac 1A @ 48V dc; Product Range:6700 Series; Actuating Temperature Max:110°C; Actuating Temperature Min:80°C; Approval Bodies:CSA UL; Contact Configuration:1NC; Contact Voltage AC Max:120V; External Depth:4.6mm; External Length / Height:30mm; External Width:10.2mm; Fixing Hole Diameter:3.6mm; For Use With:Crowded PC Boards; No. of Pins:2Pins; No. of Pins:2 Pin; Switch Operation:On-Off; Temperature Difference Max:6°C; Tolerance Temperature:5°C

CIRCUIT BREAKER HYDROMAGNETIC 1P 125V 20A; Product Range:SNAPAK Series; Current Rating:20A; No. of Poles:1 Pole; Input Voltage VAC:125V; Interrupting Capacity:0.5kA; Trip Time:15s; Dielectric Strength:1.5kV; Voltage AC:125V ;RoHS Compliant: Yes

AIRPAX PART ;ROHS COMPLIANT: YES

CIRCUIT BREAKER HYDROMAGNETIC 20A; Product Range:IEL Series; Current Rating:20A; No. of Poles:1 Pole; Input Voltage VAC:-; Interrupting Capacity:-; Trip Time:-; Dielectric Strength:3.75kV ;RoHS Compliant: Yes

AIRPAX PART

CIRCUIT BREAKER MAGNETIC 2POLE 20A; Product Range:LEG Series; Current Rating:20A; No. of Poles:1 Pole; Input Voltage VAC:240V; Interrupting Capacity:-; Trip Time:-; Dielectric Strength:3.75kV ;RoHS Compliant: Yes

AIRPAX PART ;ROHS COMPLIANT: YES

AIRPAX POWER PROTECTION

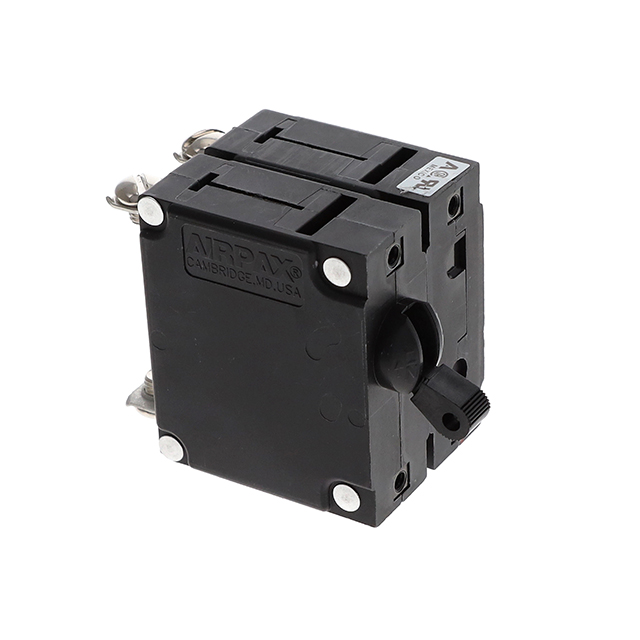

CIRCUIT BREAKER MAGNETIC HYDRAULIC 2P 240V 35A; Product Range:IUG Series; Current Rating:35A; No. of Poles:2 Pole; Input Voltage VAC:240V; Interrupting Capacity:5kA; Trip Time:20s; Dielectric Strength:3.75kV ;RoHS Compliant: Yes

AIRPAX POWER PROTECTION

CIRCUIT BREAKER

SSR 48V/60A 24/23.5VCTRL LVD W/PAD; Contact Configuration:-; Load Current:60A; Operating Voltage Max:75VDC; Relay Mounting:Panel; Relay Terminals:Screw; Switching Mode:DC Switch; Operating Voltage Min:3VDC; Control Voltage Min:23VDC; Control Voltage Max:24VDC; Product Range:-; SVHC:No SVHC (12-Jan-2017); Control Current Typ:12mA; Control Voltage DC Max:24VDC; Control Voltage DC Min:23VDC; Control Voltage Range:23V DC to 24V DC; Control Voltage Type:DC; Isolation Voltage:2.5kV; Operating Voltage Range:3V DC to 75V DC; Surge Current:180A

SSR 280VAC/5A 4-8VDC RN; Contact Configuration:-; Load Current:5A; Operating Voltage Max:280VAC; Relay Mounting:Panel; Relay Terminals:Quick Connect; Switching Mode:DC Switch; Operating Voltage Min:24VAC; Control Voltage Min:4VDC; Control Voltage Max:8VDC; Product Range:-; SVHC:No SVHC (12-Jan-2017); Control Voltage DC Max:8VDC; Control Voltage DC Min:4VDC; Control Voltage Range:4V DC to 8V DC; Control Voltage Type:DC; Isolation Voltage:3.75kV; Operating Voltage Range:24V AC to 280V AC

SSR 280VAC/10A 4-8VDC ZC; Contact Configuration:-; Load Current:10A; Operating Voltage Max:280VAC; Relay Mounting:Panel; Relay Terminals:Quick Connect; Switching Mode:Zero Crossing; Operating Voltage Min:24VAC; Control Voltage Min:4VDC; Control Voltage Max:8VDC; Product Range:EL Series; SVHC:No SVHC (12-Jan-2017); Control Voltage DC Max:8VDC; Control Voltage DC Min:4VDC; Control Voltage Range:4V DC to 8V DC; Control Voltage Type:DC; Isolation Voltage:3.75kV; Operating Voltage Range:24V AC to 280V AC

SOLID STATE RELAY 12VDC 24-240VAC 10A; Contact Configuration:-; Load Current:10A; Operating Voltage Max:280VAC; Relay Mounting:Panel; Relay Terminals:Quick Connect; Switching Mode:Zero Crossing; Operating Voltage Min:24VAC; Control Voltage Min:10VDC; Control Voltage Max:14VDC; Product Range:-; SVHC:No SVHC (12-Jan-2017)

SSR 280VAC/20A 4-8VDC RN; Contact Configuration:-; Load Current:20A; Operating Voltage Max:280VAC; Relay Mounting:Panel; Relay Terminals:Quick Connect; Switching Mode:Random Turn On; Operating Voltage Min:24VAC; Control Voltage Min:4VDC; Control Voltage Max:8VDC; Product Range:-; SVHC:No SVHC (12-Jan-2017); Control Voltage DC Max:8VDC; Control Voltage DC Min:4VDC; Control Voltage Range:4V DC to 8V DC; Control Voltage Type:DC; Isolation Voltage:3.75kV; Operating Voltage Range:24V AC to 280V AC

SOLID STATE RELAY 12VDC 24-240VAC 20A; Contact Configuration:-; Load Current:20A; Operating Voltage Max:280VAC; Relay Mounting:Panel; Relay Terminals:Quick Connect; Switching Mode:Zero Crossing; Operating Voltage Min:24VAC; Control Voltage Min:10VDC; Control Voltage Max:14VDC; Product Range:-; SVHC:No SVHC (12-Jan-2017)

SSR PCB MOUNT 60VDC 10VDC 20A; Operating Voltage Min:0VDC; Operating Voltage Max:60VDC; Control Voltage Min:3VDC; Control Voltage Max:10VDC; Contact Configuration:SPST-NO; Load Current:20A; Switching Mode:DC Switch; Depth:7.6mm

THERMAL PAD SINGLE PHASE PANEL MOUNT SSR'S; Thickness:0.003mm; Conductive Material:-; Thermal Conductivity:1W/m.K; Thermal Impedance:0.03 C/W; Volume Resistivity:-; External Length:57.2mm; External Width:44.5mm

SOLID STATE RELAY 25A 3-32VDC PANEL; SVHC:No SVHC (07-Jul-2017)
