SSR RELAY SPST-NO 10A 24-280V

CONTROL RELAY; Contact Configuration:-; Load Current:15A; Operating Voltage Max:300VAC; Relay Mounting:Panel; Relay Terminals:Screw; Switching Mode:Proportional Output; Operating Voltage Min:20VAC; Control Voltage Min:- RoHS Compliant: Yes

THERMOSTAT 40DEG TO-220; Switching Temperature:40°C; Reset Temperature:20°C; Contact Operation:Normally Closed; Sensor Terminals:Through Hole; Sensor Housing:TO-220; Contact Rating:500mA at 48VDC; Product Range:6700 Series; SVHC:No SVHC (07-Jul-2017)

Power Module SCR/Diode F18 Series

THYRISTOR MODULE 1.2KV 55A; SCR Module Type:Series Connected - SCRs; Peak Repetitive Off-State Voltage Vdrm:1.2kV; Gate Trigger Current Max Igt:150mA; Current It av:-; On State RMS Current IT(rms):55A; Holding Current Max Ih:- RoHS Compliant: Yes

DIODE MODULE 400VAC 90A 1.4V; Repetitive Reverse Voltage Vrrm Max:400VAC; Forward Current If(AV):90A; Forward Voltage VF Max:1.4V; Diode Module Configuration:Single; Product Range:F18 Series RoHS Compliant: Yes

DIODE MODULE DUAL 600V; Repetitive Reverse Voltage Vrrm Max:600V; Forward Current If(AV):90A; Forward Voltage VF Max:1.4V; Diode Module Configuration:Dual Common Cathode; Product Range:F18 Series RoHS Compliant: Yes

THYRISTOR DIODE MODULE 400V 20A; SCR Module Type:Bridge Rectifier Single Phase - SCR / Diode; Peak Repetitive Off-State Voltage Vdrm:400V; Gate Trigger Current Max Igt:100mA; Current It av:-; On State RMS Current IT(rms):20A RoHS Compliant: Yes

DIODE MODULE BRIDGE RECT 1-PH 1.2KV; No. of Phases:Single Phase; Repetitive Reverse Voltage Vrrm Max:1.2kV; Forward Current If(AV):35A; Bridge Rectifier Case Style:Module; Forward Voltage VF Max:-; No. of Pins:- RoHS Compliant: Yes

THYRISTOR MODULE BRIDGE HALF-CNTLD CC 480V V(RRM) 50A I(T)

CIRCUIT PROTECTOR HYDROMAGNETIC 1P 250V 20A; Product Range:UPL Series; Current Rating:20A; No. of Poles:1 Pole; Input Voltage VAC:250V; Interrupting Capacity:5kA; Trip Time:20s; Dielectric Strength:1.5kV; Operating Voltage:240V ;RoHS Compliant: Yes

CIRCUIT PROTECTOR HYDROMAGNETIC 1P 250V 40A; Product Range:UPL Series; Current Rating:40A; No. of Poles:1 Pole; Input Voltage VAC:250V; Interrupting Capacity:5kA; Trip Time:20s; Dielectric Strength:1.5kV; Operating Voltage:240V ;RoHS Compliant: Yes

CIRCUIT PROTECTOR HYDROMAGNETIC 2P 250V 30A; Product Range:UPL Series; Current Rating:30A; No. of Poles:2 Pole; Input Voltage VAC:250V; Interrupting Capacity:5kA; Trip Time:20s; Dielectric Strength:1.5kV; Operating Voltage:240V ;RoHS Compliant: Yes

CIRCUIT PROTECTOR HYDROMAGNETIC 2P 250V 50A; Product Range:UPL Series; Current Rating:50A; No. of Poles:2 Pole; Input Voltage VAC:250V; Interrupting Capacity:5kA; Trip Time:20s; Dielectric Strength:1.5kV; Operating Voltage:240V ;RoHS Compliant: Yes

CIRCUIT BREAKER

SSR PANEL MOUNT 280VAC 32VDC 10A; Contact Configuration:-; Load Current:10A; Operating Voltage Max:280VAC; Relay Mounting:Panel; Relay Terminals:Screw; Switching Mode:Zero Crossing; Operating Voltage Min:24VAC

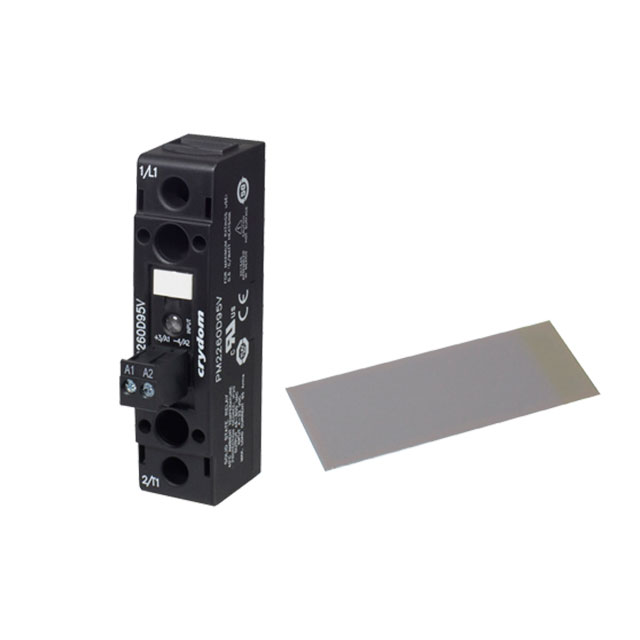

SSR 30A 110-280VAC 48-530VAC ZERO; Contact Configuration:SPST-NO; Load Current:30A; Operating Voltage Max:530Vrms; Relay Mounting:DIN Rail; Relay Terminals:Cage Clamp; Switching Mode:Zero Crossing; Operating Voltage Min:48Vrms; Control Voltage Min:110VAC; Control Voltage Max:280VAC; Product Range:-; SVHC:No SVHC (12-Jan-2017)

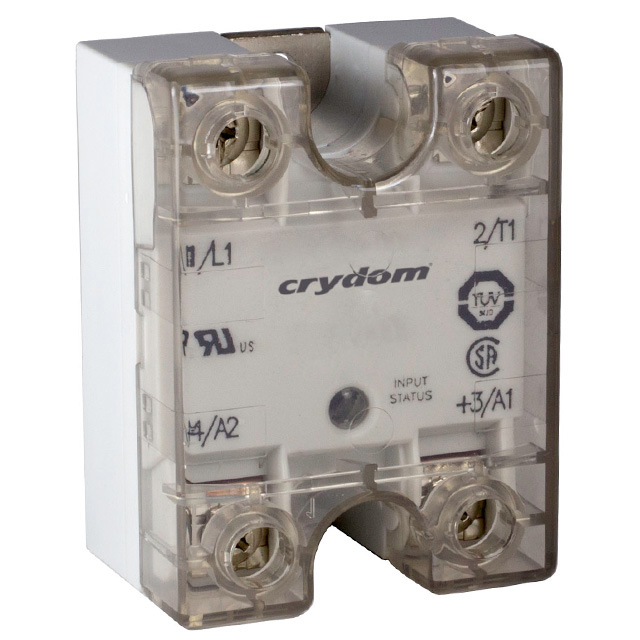

SSR 50A 240VAC; Contact Configuration:SPST-NO; Load Current:50A; Operating Voltage Max:280Vrms; Relay Mounting:Panel; Relay Terminals:Screw; Switching Mode:Zero Crossing; Operating Voltage Min:24Vrms; Control Voltage Min:3VDC; Control Voltage Max:32VDC; Product Range:-; SVHC:No SVHC (12-Jan-2017); Approval Bodies:CE CSA VDE; Approval Category:UL Recognised; Blocking voltage:600V; Control Current Typ:10mA; Control Voltage DC Max:32VDC; Control Voltage DC Min:3VDC; Control Voltage Range:3V DC to 32V DC; Control Voltage Type:DC; External Depth:58.4mm; External Length / Height:33mm; External Width:45.7mm; I2t:3000s; Insulation Resistance:1000Mohm; Isolation Voltage:4kV; Leakage Current:1mA; Load Current Max:50A; Load Current Min:0.15A; Load Current RMS Max:50A; Operating Temperature Max:80°C; Operating Temperature Min:-40°C; Operating Voltage Range:24Vrms to 280Vrms; Output Type:SCR; RMS Load Current Min:0.15A; RMS Load Voltage Max:280V; RMS Load Voltage Min:24V; Surge Current:850A

SSR 90A 480VAC; Contact Configuration:SPST-NO; Load Current:90A; Operating Voltage Max:660Vrms; Relay Mounting:Panel; Relay Terminals:Screw; Switching Mode:Random Turn On; Operating Voltage Min:48Vrms; Control Voltage Min:4VDC; Control Voltage Max:32VDC; Product Range:-; SVHC:No SVHC (12-Jan-2017); Approval Bodies:CE CSA VDE; Approval Category:UL Recognised; Blocking voltage:1200V; Control Current Typ:10mA; Control Voltage DC Max:32VDC; Control Voltage DC Min:4VDC; Control Voltage Range:4V DC to 32V DC; Control Voltage Type:DC; External Depth:58.4mm; External Length / Height:33mm; External Width:45.7mm; I2t:7560s; Insulation Resistance:1000Mohm; Isolation Voltage:4kV; Leakage Current:1mA; Load Current Max:90A; Load Current Min:0.25A; Load Current RMS Max:90A; Operating Temperature Max:80°C; Operating Temperature Min:-40°C; Operating Voltage Range:48Vrms to 660Vrms; Output Type:SCR; RMS Load Current Min:0.25A; RMS Load Voltage Max:660V; RMS Load Voltage Min:48V; Surge Current:1350A

SSR 50A 240VAC; Contact Configuration:SPST-NO; Load Current:50A; Operating Voltage Max:280Vrms; Relay Mounting:Panel; Relay Terminals:Screw; Switching Mode:Zero Crossing; Operating Voltage Min:24Vrms; Control Voltage Min:90VAC; Control Voltage Max:280VAC; Product Range:CW24 Series; SVHC:No SVHC (12-Jan-2017); Approval Bodies:CE CSA VDE; Approval Category:UL Recognised; Blocking voltage:600V; Control Current Typ:6mA; Control Voltage AC Max:280Vrms; Control Voltage AC Min:90Vrms; Control Voltage Range:90Vrms to 280Vrms; Control Voltage Type:AC; External Depth:58.4mm; External Length / Height:33mm; External Width:45.7mm; I2t:3000s; Input Impedance:21.7kohm; Insulation Resistance:1000Mohm; Isolation Voltage:4kV; Leakage Current:1mA; Load Current Max:50A; Load Current Min:0.15A; Load Current RMS Max:50A; Operating Temperature Max:80°C; Operating Temperature Min:-40°C; Operating Voltage Range:24Vrms to 280Vrms; Output Type:SCR; RMS Load Current Min:0.15A; RMS Load Voltage Max:280V
