103H5205-5210
Part Number : 103H5205-5210
Sanyo DenkiSanyo Denki Bipolar Bipolar, Unipolar Stepper Motor 1.8°, 0.27Nm, 24 V dc, 1 A, 6 Wires. Frame Size: 42 x 42mm. Shaft Diameter: 5mm. Shaft Length: 22.5mm. Depth: 34.5mm. Resistance Per Phase: 3.4Ω. Standards Met: CE, cULus, RoHS Compliant, TUV. Series: 103H5. MPN: 103H5205-5210
CSD 92
Part Number : CSD 92
Sanyo DenkiMINISTEP BIPOLAR CHOPPER DRIVE 2 25 TO 45VDC; Supply Voltage Min:24VDC; Supply Voltage Max:45VDC; No. of Phases:Two Phase; Power Rating:-; Output Voltage Max:45VDC; Output Current:2.4A; Product Range:- RoHS Compliant: Yes
SH1601-0440
Part Number : SH1601-0440
Sanyo DenkiSTEPPER MOTOR; Coil Type:Unipolar; Torque Max:-; Current Rating:2A; No. of Phases:Two Phase; Resistance:1.35ohm; Inductance:3.5mH; Inertia:1.31oz-in²; Product Range:-; NEMA Size:23; Shaft Configuration:Unipolar; Step Resolution:0.9° RoHS Compliant: Yes
SH1603-0440
Part Number : SH1603-0440
Sanyo DenkiSTEPPER MOTOR; Coil Type:Unipolar; Torque Max:-; Current Rating:2A; No. of Phases:Two Phase; Resistance:2.3ohm; Inductance:8.8mH; Inertia:4.1oz-in²; Product Range:-; NEMA Size:23; Shaft Configuration:Unipolar; Step Resolution:0.9° RoHS Compliant: Yes
SH2281-5671
Part Number : SH2281-5671
Sanyo DenkiSTEPPER MOTOR; Coil Type:Bipolar; Torque Max:-; Current Rating:500mA; No. of Phases:Two Phase; Resistance:10.5ohm; Inductance:7.2mH; Inertia:0.05oz-in²; Product Range:-; NEMA Size:11; Shaft Configuration:Bipolar; Step Resolution:1.8°RoHS Compliant: Yes
SH2281-5771
Part Number : SH2281-5771
Sanyo DenkiSTEPPER MOTOR; Coil Type:Bipolar; Torque Max:-; Current Rating:1A; No. of Phases:Two Phase; Resistance:2.6ohm; Inductance:1.85mH; Inertia:0.05oz-in²; Product Range:-; NEMA Size:11; Shaft Configuration:Bipolar; Step Resolution:1.8° RoHS Compliant: Yes
SS2502-5041
Part Number : SS2502-5041
Sanyo DenkiSTEPPER MOTOR; Coil Type:Bipolar; Torque Max:-; Current Rating:1A; No. of Phases:Two Phase; Resistance:5.9ohm; Inductance:3.2mH; Inertia:0.268oz-in²; Product Range:-; Shaft Configuration:Bipolar; Step Resolution:1.8° RoHS Compliant: Yes
103H5205-5140
Part Number : 103H5205-5140
Sanyo DenkiSTEPPER MOTOR; Coil Type:Bipolar; Torque Max:-; Current Rating:500mA; No. of Phases:Two Phase; Resistance:13.4ohm; Inductance:23.4mH; Inertia:0.2oz-in²; Product Range:103H52 Series; NEMA Size:17; Shaft Configuration:Bipolar RoHS Compliant: Yes
103H5210-5140
Part Number : 103H5210-5140
Sanyo DenkiSTEPPER MOTOR; Coil Type:Bipolar; Torque Max:-; Current Rating:500mA; No. of Phases:Two Phase; Resistance:20ohm; Inductance:35mH; Inertia:0.4oz-in²; Product Range:103H52 Series; NEMA Size:17; Shaft Configuration:Bipolar RoHS Compliant: Yes
103H7128-5740
Part Number : 103H7128-5740
Sanyo DenkiSTEPPER MOTOR; Coil Type:Bipolar; Torque Max:-; Current Rating:2A; No. of Phases:Two Phase; Resistance:2.3ohm; Inductance:10.4mH; Inertia:2.68oz-in²; Product Range:103H712 Series; NEMA Size:23; Shaft Configuration:Bipolar RoHS Compliant: Yes

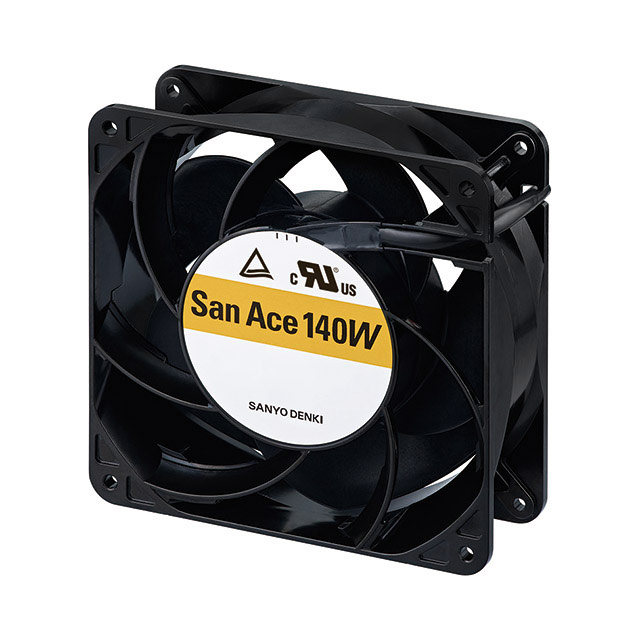

9WL1448M1002
Part Number : 9WL1448M1002
Sanyo Denki48V SPLASH & DUST PROOF IP68 LONG LIFE 100K HRS. RBLS
SM2861-5152
Part Number : SM2861-5152
Sanyo DenkiSTEPPER MOTOR 2-PHASE; Coil Type:Bipolar; Torque Max:3.3N-m; Current Rating:4A; No. of Phases:Two Phase; Resistance:0.56ohm; Inductance:3.7mH; Inertia:8.09oz-in²; Product Range:- RoHS Compliant: Yes
SM2863-5152
Part Number : SM2863-5152
Sanyo DenkiSTEPPER MOTOR 2-PHASE; Coil Type:Bipolar; Torque Max:9N-m; Current Rating:4A; No. of Phases:Two Phase; Resistance:1ohm; Inductance:7.9mH; Inertia:24.6oz-in²; Product Range:- RoHS Compliant: Yes
