MCV 1,5/ 2-GF-3,81-LR
Part Number : MCV 1,5/ 2-GF-3,81-LR
Phoenix Contact LtdWire-To-Board Connector, MCV Series, Through Hole, Header, 2, 3.81 mm, Tin Plated Contacts RoHS Compliant: Yes
PLH 5/ 4-7,5-ZF
Part Number : PLH 5/ 4-7,5-ZF
Phoenix Contact LtdTB, WIRE TO BRD, 4POS, 10AWG; Pitch Spacing:7.5mm; No. of Positions:4Positions; Wire Size AWG Min:24AWG; Wire Size AWG Max:10AWG; Conductor Area CSA:6mm²; Wire Connection Method:Push In Lock; Rated Current:41A; Rated Voltage:1kV RoHS Compliant: Yes
PTS 1,5/ 3-PH-5,0
Part Number : PTS 1,5/ 3-PH-5,0
Phoenix Contact LtdTERMINAL BLOCK, PLUGGABLE, 3POS, 14AWG; Pitch Spacing:5mm; No. of Positions:3Positions; Wire Size AWG Min:26AWG; Wire Size AWG Max:14AWG; Conductor Area CSA:2.5mm²; Wire Connection Method:Push In Lock; Rated Current:10A RoHS Compliant: Yes
SACC-E-M12FS-5CON-PG9/0,5
Part Number : SACC-E-M12FS-5CON-PG9/0,5
Phoenix Contact LtdSENSOR/ACTUATOR SOCKET, M12, 5POS; Connector Type A:M12 Sensor Straight 5 Position Receptacle; Connector Type B:Free End; Cable Length - Metric:500mm; Cable Length - Imperial:19.6"; Product Range:-; SVHC:No SVHC (15-Jan-2019); RoHS Compliant: Yes
SACC-SQ-M12MS-5CON-25F/0,5
Part Number : SACC-SQ-M12MS-5CON-25F/0,5
Phoenix Contact LtdSENSOR CORD, 5P, M12 PLUG-FREE END, 0.5M; Connector Type A:M12 Sensor Straight 5 Position Plug; Connector Type B:Free End; Cable Length - Metric:500mm; Cable Length - Imperial:19.6"; Product Range:-; SVHC:Lead (15-Jan-2019); RoHS Compliant: Yes
PTSM 0,5/ 3-2,5-H-THR
Part Number : PTSM 0,5/ 3-2,5-H-THR
Phoenix Contact LtdWire-To-Board Terminal Block, 3, 200 V, 6 A, 24 AWG, 20 AWG, 0.5 mm RoHS Compliant: Yes
PTSM 0,5/ 5-2,5-H-SMD
Part Number : PTSM 0,5/ 5-2,5-H-SMD
Phoenix Contact LtdTERMINAL BLOCK, WIRE TO BRD, 5POS, 20AWG; Pitch Spacing:2.5mm; No. of Positions:5Ways; Wire Size AWG Min:24AWG; Wire Size AWG Max:20AWG; Conductor Area CSA:0.5mm2; Wire Connection Method:Clamp; Rated Current:6A; Rated Voltage:160V; RoHS Compliant: Yes
PTSM 0,5/ 5-2,5-H-THR
Part Number : PTSM 0,5/ 5-2,5-H-THR
Phoenix Contact LtdWire-To-Board Terminal Block, 5, 200 V, 6 A, 24 AWG, 20 AWG, 0.5 mm RoHS Compliant: Yes
PTSM 0,5/ 8-2,5-V-SMD
Part Number : PTSM 0,5/ 8-2,5-V-SMD
Phoenix Contact LtdWire-To-Board Terminal Block, 8, 160 V, 6 A, 24 AWG, 20 AWG, 0.5 mm RoHS Compliant: Yes
UMSTBVK 2,5/10-G-5,08
Part Number : UMSTBVK 2,5/10-G-5,08
Phoenix Contact LtdTERMINAL BLOCK, PLUGGABLE, 10POS, 12AWG; Pitch Spacing:5.08mm; No. of Positions:10Ways; Wire Size (AWG):24AWG to 12AWG; Conductor Area CSA:2.5mm2; Wire Connection Method:Screw; Rated Current:12A; Rated Voltage:320V; Product RoHS Compliant: Yes
SPTAF 1/ 9-3,5-IL
Part Number : SPTAF 1/ 9-3,5-IL
Phoenix Contact LtdTB, WIRE TO BRD, 9POS, 16AWG; Pitch Spacing:3.5mm; No. of Positions:9Ways; Wire Size AWG Min:24AWG; Wire Size AWG Max:16AWG; Conductor Area CSA:1.5mm2; Wire Connection Method:Push In; Rated Current:16A; Rated Voltage:160V; Block RoHS Compliant: Yes
SPTAF 1/10-5,0-EL
Part Number : SPTAF 1/10-5,0-EL
Phoenix Contact LtdTB, WIRE TO BRD, 10POS, 16AWG; Pitch Spacing:5mm; No. of Positions:10Ways; Wire Size AWG Min:24AWG; Wire Size AWG Max:16AWG; Conductor Area CSA:1.5mm2; Wire Connection Method:Push In; Rated Current:16A; Rated Voltage:320V; Block RoHS Compliant: Yes
MC 1,5/7-ST-3,5
Part Number : MC 1,5/7-ST-3,5
Phoenix Contact LtdTERMINAL BLOCK, PLUGGABLE, 7POS, 16AWG; Pitch Spacing:3.5mm; No. of Positions:7Positions; Wire Size AWG Min:28AWG; Wire Size AWG Max:16AWG; Conductor Area CSA:1.5mm²; Wire Connection Method:Screw; Rated Current:8A; Rated Voltage:160VRoHS Compliant: Yes
PT 2,5
Part Number : PT 2,5
Phoenix Contact LtdTERMINAL BLOCK, DIN RAIL, 2POS, 12AWG; No. of Positions:2Positions; Wire Size AWG Min:26AWG; Wire Size AWG Max:12AWG; Conductor Area CSA:4mm²; Wire Connection Method:Push In; Rated Current:28A; Rated Voltage:800V; No. of Levels:1 RoHS Compliant: Yes

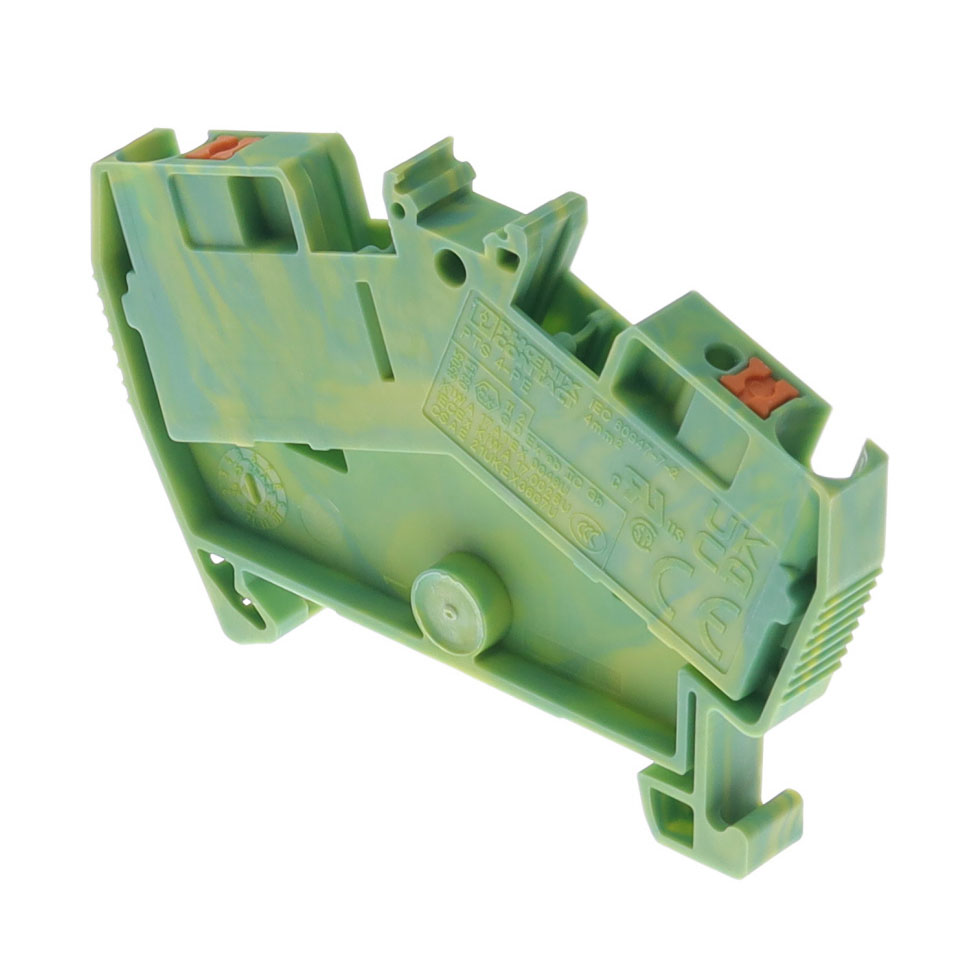

PT 2,5-PE
Part Number : PT 2,5-PE
Phoenix Contact LtdTERMINAL BLOCK, DIN RAIL, 2POS, 12AWG; No. of Positions:2Positions; Wire Size AWG Min:26AWG; Wire Size AWG Max:12AWG; Conductor Area CSA:4mm²; Wire Connection Method:Push In; Rated Current:28A; Rated Voltage:800V; No. of Levels:1 RoHS Compliant: Yes
PT 2,5-QUATTRO BU
Part Number : PT 2,5-QUATTRO BU
Phoenix Contact LtdTERMINAL BLOCK, DIN RAIL, 4POS, 12AWG; No. of Positions:4Positions; Wire Size AWG Min:26AWG; Wire Size AWG Max:12AWG; Conductor Area CSA:4mm²; Wire Connection Method:Push In; Rated Current:28A; Rated Voltage:800V; No. of Levels:1 RoHS Compliant: Yes
PT 2,5-TWIN BU
Part Number : PT 2,5-TWIN BU
Phoenix Contact LtdTERMINAL BLOCK, DIN RAIL, 3POS, 12AWG; No. of Positions:3Positions; Wire Size AWG Min:26AWG; Wire Size AWG Max:12AWG; Conductor Area CSA:4mm²; Wire Connection Method:Push In; Rated Current:28A; Rated Voltage:800V; No. of Levels:1 RoHS Compliant: Yes
ST 2,5 BU
Part Number : ST 2,5 BU
Phoenix Contact LtdTERMINAL BLOCK, DIN RAIL, 2POS, 12AWG; No. of Positions:2Positions; Wire Size AWG Min:28AWG; Wire Size AWG Max:12AWG; Conductor Area CSA:4mm²; Wire Connection Method:Clamp; Rated Current:31A; Rated Voltage:800V; No. of Levels:1 RoHS Compliant: Yes
ST 2,5-QUATTRO-PE
Part Number : ST 2,5-QUATTRO-PE
Phoenix Contact LtdTERMINAL BLOCK, DIN RAIL, 4POS, 12AWG; No. of Positions:4Positions; Wire Size AWG Min:28AWG; Wire Size AWG Max:12AWG; Conductor Area CSA:4mm²; Wire Connection Method:Clamp; Rated Current:24A; Rated Voltage:800V; No. of Levels:1 RoHS Compliant: Yes
ZB 5,LGS:FORTL.ZAHLEN 21-30
Part Number : ZB 5,LGS:FORTL.ZAHLEN 21-30
Phoenix Contact LtdTERMINAL BLOCK MARKER, 21-30, 5.2MM; Accessory Type:Zack Marker Strip; For Use With:Phoenix Contact Modular Terminal Blocks; Legend:21-30; Pitch Spacing:5.2mm; Product Range:ZB Series RoHS Compliant: Yes
