UC300-30GM-IUR2-V15
Part Number : UC300-30GM-IUR2-V15
Pepperl+FuchsTwin-head system, Very small unusable area, Parameterization interface for the application-specific adjustment of the sensor setting via the service program ULTRA 3000, Analog current and voltage output, Series: -30GM, Housing diameter: 30 mm, Sensing range: 15 ... 300 mm, Connection type: Connector M12 x 1 , 5-pin
UC3500-30GM70S-UE2R2-V15
Part Number : UC3500-30GM70S-UE2R2-V15
Pepperl+FuchsUltrasonic diffuse sensor with pivoting transducer, Analog output 0 ... 10 V, 1 switch output, Synchronization options, Construction type: Cylindrical, Housing diameter: 30 mm, Sensing range: 200 ... 3500 mm, Connection type: Connector M12 x 1 , 5-pin
UC4000-30GM-IUEP-IO-V15
Part Number : UC4000-30GM-IUEP-IO-V15
Pepperl+FuchsSingle head system, IO-link interface for service and process data, Programmable via DTM with PACTWARE, Switch output and analog output, Series: -30GM, Housing diameter: 40 mm, Sensing range: 200 ... 4000 mm, Connection type: Connector M12 x 1 , 5-pin

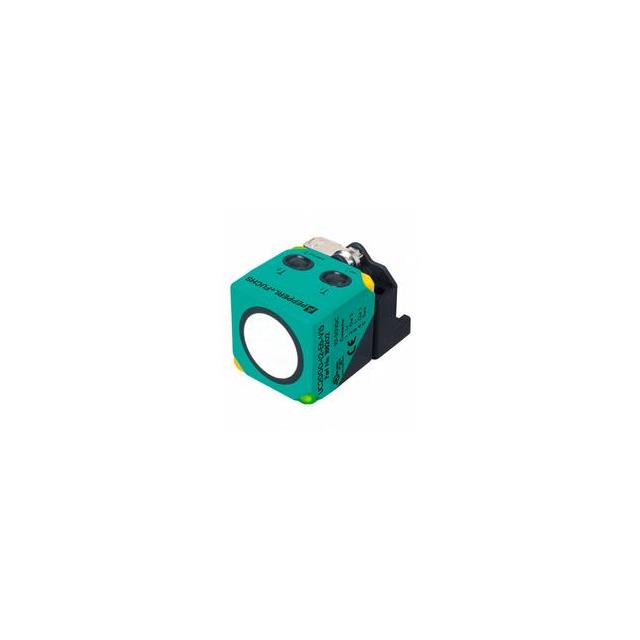

UC4000-L2-E6-V15
Part Number : UC4000-L2-E6-V15
Pepperl+FuchsSingle head system, Sensor head bidirectional and rotatable, Function indicators visible from all directions, Quick mounting bracket, Series: -L2, Housing diameter: , Sensing range: 200 ... 4000 mm, Connection type: Connector M12 x 1 , 5-pin
UC500-30GM-E6R2-V15
Part Number : UC500-30GM-E6R2-V15
Pepperl+FuchsSingle head system, Parameterization interface for the application-specific adjustment of the sensor setting via the service program ULTRA 3000, 2 programmable switch outputs, Latching mode selectable, Series: -30GM, Housing diameter: 30 mm, Sensing range: 30 ... 500 mm, Connection type: Connector M12 x 1 , 5-pin
UC500-30GM70-UE2R2-K-V15
Part Number : UC500-30GM70-UE2R2-K-V15
Pepperl+FuchsUltrasonic diffuse sensor with separate transducer, Analog output 0 ... 10 V, 1 switch output, Synchronization options, Construction type: Cylindrical, Housing diameter: 30 mm, Sensing range: 45 ... 500 mm, Connection type: Connector M12 x 1 , 5-pin
UC500-30GM70S-2E2R2-V15
Part Number : UC500-30GM70S-2E2R2-V15
Pepperl+FuchsUltrasonic diffuse sensor with pivoting transducer, 2 switch outputs, Synchronization options, Temperature compensation, Construction type: Cylindrical, Housing diameter: 30 mm, Sensing range: 45 ... 500 mm, Connection type: Connector M12 x 1 , 5-pin
UC500-L2-E7-V15
Part Number : UC500-L2-E7-V15
Pepperl+FuchsSingle head system, Sensor head bidirectional and rotatable, Function indicators visible from all directions, Quick mounting bracket, Series: -L2, Housing diameter: , Sensing range: 35 ... 500 mm
UC6000-30GM-IUR2-V15
Part Number : UC6000-30GM-IUR2-V15
Pepperl+FuchsULTRASONIC SENSOR; Sensing Range Max:6m; Frequency:65kHz; Sensitivity:-; Operating Temperature Min:-25 C; Operating Temperature Max:70 C; Beam Divergence:-; Product Range:UC6000-30GM-IUR2-V15; Sensor Input:Ultrasonic ;RoHS Compliant: Yes
UC6000-30GM70-2E2R2-V15
Part Number : UC6000-30GM70-2E2R2-V15
Pepperl+FuchsUltrasonic direct detection sensor, 2 switch outputs, Synchronization options, Temperature compensation, Construction type: Cylindrical, Housing diameter: 30 mm, Sensing range: 350 ... 6000 mm, Connection type: Connector M12 x 1 , 5-pin
UCC3500-30GH70-IE2R2-V15
Part Number : UCC3500-30GH70-IE2R2-V15
Pepperl+FuchsUltrasonic direct detection sensor, High chemical resistance through PTFE coated transducer surface, Analog output 4 ... 20 mA, 1 switch output, Construction type: Cylindrical, Housing diameter: 30 mm, Sensing range: 200 ... 3500 mm, Connection type: Connector M12 x 1 , 5-pin
UCC3500-30GH70-UE2R2-V15
Part Number : UCC3500-30GH70-UE2R2-V15
Pepperl+FuchsUltrasonic direct detection sensor, High chemical resistance through PTFE coated transducer surface, Analog output 0 ... 10 V, 1 switch output, Construction type: Cylindrical, Housing diameter: 30 mm, Sensing range: 200 ... 3500 mm, Connection type: Connector M12 x 1 , 5-pin
UCC500-30GH70-IE2R2-K-V15
Part Number : UCC500-30GH70-IE2R2-K-V15
Pepperl+FuchsUltrasonic diffuse sensor with separate transducer, High chemical resistance through PTFE coated transducer surface, Analog output 4 ... 20 mA, 1 switch output, Construction type: Cylindrical, Housing diameter: 30 mm, Sensing range: 45 ... 500 mm, Connection type: Connector M12 x 1 , 5-pin
UCC500-30GH70-IE2R2-V15
Part Number : UCC500-30GH70-IE2R2-V15
Pepperl+FuchsUltrasonic direct detection sensor, High chemical resistance through PTFE coated transducer surface, Analog output 4 ... 20 mA, 1 switch output, Construction type: Cylindrical, Housing diameter: 30 mm, Sensing range: 45 ... 500 mm, Connection type: Connector M12 x 1 , 5-pin
20-2952
Part Number : 20-2952
Pepperl+FuchsSturdy and compact design, Up to 2500 ppr, Rectangular design, 5 V with RS-422 interface, Output type: RS 422, incremental
MNI20N
Part Number : MNI20N
Pepperl+FuchsMagnetic, Non Contact, Cost-effective, bearing-free rotary encoder for rotational speed measurement, Simple installation, Operating display verifies function, Up to 7200 pulses, High degree of protection (IP67), Output type: push-pull, incremental or RS 422, incremental
RHI90N-*******6
Part Number : RHI90N-*******6
Pepperl+FuchsCompact design housing 90 mm, Variable hollow shaft from 16 mm ... 45 mm, Up to 50,000 ppr, Easy shaft clamping, 5 V with RS-422 interface, Output type: RS 422, incremental
RHS58N-*******Z
Part Number : RHS58N-*******Z
Pepperl+FuchsIncremental encoder with sin/cos interface, 1024 or 2048 signal periods, Industrial standard housing 58 mm, Hollow shaft up to 15 mm, Temperature compensated, interpolateable voltage signals, Output type: sine / cosine
RSI58N-*******1
Part Number : RSI58N-*******1
Pepperl+FuchsIndustrial standard housing 58 mm, Up to 5000 ppr, Recessed hollow shaft, 10 V ... 30 V with short-circuit proof push-pull output, Output type: push-pull, incremental
