RELAY SIGNAL DPDT 30VDC 1A; Contact Configuration:DPDT; Coil Voltage:3VDC; Contact Current:1A; Product Range:G6K Series; Relay Mounting:Through Hole; Coil Type:Non Latching; Contact Voltage VAC:-; Relay Terminals:Solder; Contact Voltage VDC:30V; Contact Material:Silver Gold; Coil Resistance:91ohm; Approvals & Standards:CSA UL; Coil Current:33mA; Coil Voltage VDC Nom:3V; Contact Current AC Max:1A; Contact Current DC Max:1A; Contact Current Max:1A; Contact Resistance:100mohm; Contact Voltage AC Max:125V; Contact Voltage AC Nom:125V; Contact Voltage DC Max:60V; Contact Voltage DC Nom:30V; Current Rating:33mA; DC Coil Power:100mW; Dielectric Strength VDC:1500VAC; External Depth:6.5mm; External Height:5.2mm; External Length / Height:5.2mm; External Width:10mm; Insulation Resistance:1000Mohm; Mechanical Life:50 000 000 Operations; No. of Mechanical Operations:50000000; Nom Operating Power:100mW; Operating Temperature Max:70°C; Operating Temperature Min:-40°C; Operating Time:1.4ms; Release Time:1.3ms

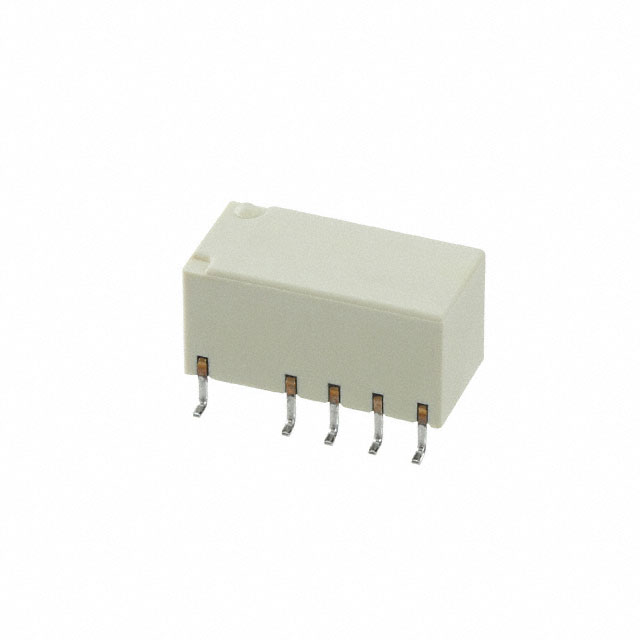

RELAY SIGNAL DPDT 30VDC 1A; Contact Configuration:DPDT; Coil Voltage:24VDC; Contact Current:1A; Product Range:G6K Series; Relay Mounting:SMD; Coil Type:Non Latching; Contact Voltage VAC:-; Relay Terminals:Solder; Contact Voltage VDC:30V; Contact Material:Silver Gold; Coil Resistance:5.22kohm; Approvals & Standards:CSA UL; Coil Current:4.6mA; Coil Voltage VDC Nom:24V; Contact Current AC Max:1A; Contact Current DC Max:1A; Contact Current Max:1A; Contact Resistance:100mohm; Contact Voltage AC Max:125V; Contact Voltage AC Nom:125V; Contact Voltage DC Max:60V; Contact Voltage DC Nom:30V; Current Rating:4.6mA; DC Coil Power:100mW; Dielectric Strength VDC:1500VAC; External Depth:6.5mm; External Height:5.2mm; External Length / Height:5.2mm; External Width:10mm; Insulation Resistance:1000Mohm; Mechanical Life:50 000 000 Operations; No. of Mechanical Operations:50000000; Nom Operating Power:100mW; Operating Temperature Max:70°C; Operating Temperature Min:-40°C; Operating Time:1.4ms; Release Time:1.3ms

RELAY SIGNAL DPDT 30VDC 1A; Contact Configuration:DPDT; Coil Voltage:12VDC; Contact Current:1A; Product Range:G6K Series; Relay Mounting:SMD; Coil Type:Non Latching; Contact Voltage VAC:-; Relay Terminals:Solder; Contact Voltage VDC:30V; Contact Material:Silver Gold; Coil Resistance:1.315kohm; Approvals & Standards:CSA UL; Coil Current:9.1mA; Coil Voltage VDC Nom:12V; Contact Current AC Max:1A; Contact Current DC Max:1A; Contact Current Max:1A; Contact Resistance:100mohm; Contact Voltage AC Max:125V; Contact Voltage AC Nom:125V; Contact Voltage DC Max:60V; Contact Voltage DC Nom:30V; Current Rating:9.1mA; DC Coil Power:100mW; Dielectric Strength VDC:1500VAC; External Depth:6.5mm; External Height:5.2mm; External Length / Height:5.2mm; External Width:10mm; Insulation Resistance:1000Mohm; Mechanical Life:50 000 000 Operations; No. of Mechanical Operations:50000000; Nom Operating Power:100mW; Operating Temperature Max:70°C; Operating Temperature Min:-40°C; Operating Time:1.4ms; Release Time:1.3ms

RELAY SIGNAL DPDT 30VDC 1A; Contact Configuration:DPDT; Coil Voltage:24VDC; Contact Current:1A; Product Range:G6K Series; Relay Mounting:SMD; Coil Type:Non Latching; Contact Voltage VAC:-; Relay Terminals:Solder; Contact Voltage VDC:30V; Contact Material:Silver Gold; Coil Resistance:5.22kohm; Approvals & Standards:CSA UL; Coil Current:4.6mA; Coil Voltage VDC Nom:24V; Contact Current AC Max:1A; Contact Current DC Max:1A; Contact Current Max:1A; Contact Resistance:100mohm; Contact Voltage AC Max:125V; Contact Voltage AC Nom:125V; Contact Voltage DC Max:60V; Contact Voltage DC Nom:30V; Current Rating:4.6mA; DC Coil Power:100mW; Dielectric Strength VDC:1500VAC; External Depth:6.5mm; External Height:5.2mm; External Length / Height:5.2mm; External Width:10mm; Insulation Resistance:1000Mohm; Mechanical Life:50 000 000 Operations; No. of Mechanical Operations:50000000; Nom Operating Power:100mW; Operating Temperature Max:70°C; Operating Temperature Min:-40°C; Operating Time:1.4ms; Release Time:1.3ms

RELAY SPST 250VAC 30VDC 10A; Contact Configuration:SPST; Coil Voltage:24VDC; Contact Current:10A; Product Range:G5Q Series; Relay Mounting:Through Hole; Coil Type:Non Latching; Contact Voltage VAC:250VAC; Relay Terminals:Solder; Contact Voltage VDC:30VDC; Contact Material:Silver Alloy; Coil Resistance:2.88kohm; Approvals & Standards:CSA IEC UL VDE; Coil Current:8.3mA; Coil Voltage VDC Nom:24V; Contact Current AC Max:10A; Contact Current DC Max:10A; Contact Current Max:10A; Contact Resistance:100mohm; Contact Voltage AC Max:277V; Contact Voltage AC Nom:250V; Contact Voltage DC Max:30V; Contact Voltage DC Nom:30V; Current Rating:8.3mA; DC Coil Power:200mW; Dielectric Strength VDC:4000VAC; External Depth:10.3mm; External Height:15.8mm; External Length / Height:15.8mm; External Width:20.3mm; Insulation Resistance:100Mohm; Mechanical Life:10 000 000 Operations; No. of Mechanical Operations:10000000; Nom Operating Power:200mW; Operating Temperature Max:105°C; Operating Temperature Min:-40°C

AC-DC CONVERTER DIN RAIL 1 O/P 100W 4.5A 24V; No. of Outputs:1 Output; Output Power Max:100W; Output Voltage - Output 1:24VDC; Output Current - Output 1:4.5A; Output Voltage - Output 2:-; Output Current - Output 2:-; Height:92mm

TRANSMISSIVE PHOTOSENSOR 5MM PANEL; Sensor Output:Photo / Optical IC; Sensor Mounting:Panel Mount; Gap Width:5mm; Aperture Width:0.5mm; Forward Current If:-; Reverse Voltage Vr:-; Forward Voltage:-; Product Range:-

TRANSMISSIVE PHOTOSENSOR 5MM PANEL; Sensor Output:Photo / Optical IC; Sensor Mounting:Panel Mount; Gap Width:5mm; Aperture Width:0.5mm; Forward Current If:-; Reverse Voltage Vr:-; Forward Voltage:-; Product Range:-

TRANSMISSIVE PHOTOSENSOR 5MM PANEL; Sensor Output:Photo / Optical IC; Sensor Mounting:Panel Mount; Gap Width:5mm; Aperture Width:0.5mm; Forward Current If:-; Reverse Voltage Vr:-; Forward Voltage:-; Product Range:-

TRANSMISSIVE PHOTOSENSOR 5MM PANEL; Sensor Output:Photo / Optical IC; Sensor Mounting:Panel Mount; Gap Width:5mm; Aperture Width:0.5mm; Forward Current If:-; Reverse Voltage Vr:-; Forward Voltage:-; Product Range:-

Photointerrupter Transmissive Dark-ON Output 4.5V to 16V SMD

Photointerrupter Transmissive Light-ON Output 5VDC L-Shaped Mount

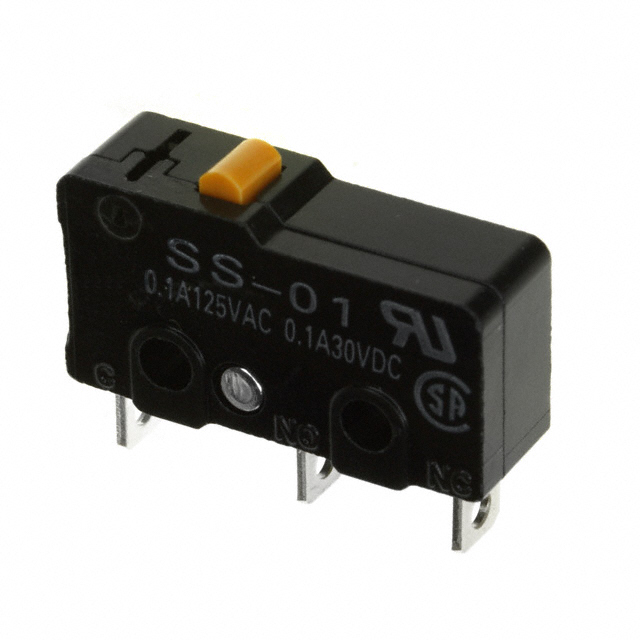

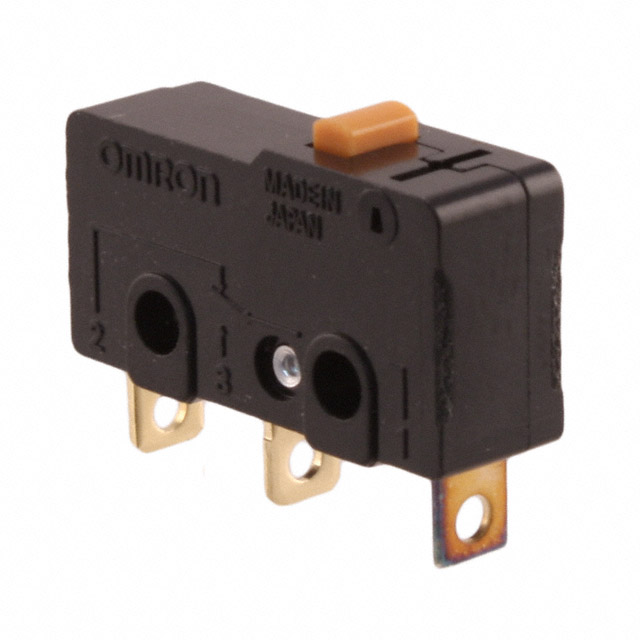

Basic / Snap Action Switches MINIATURE BASIC SWITCH

General Purpose Relays Power PCB Relay

PA46-3-400-Q2-NC1-NP

Basic / Snap Action Switches Solder Pin Plunger 2A Silver Alloy SPDT

Pushbutton Switches Ultra Subminiature Vrt Mt Terminal DPST

Basic / Snap Action Switches HNG RLR LVR SOLDER

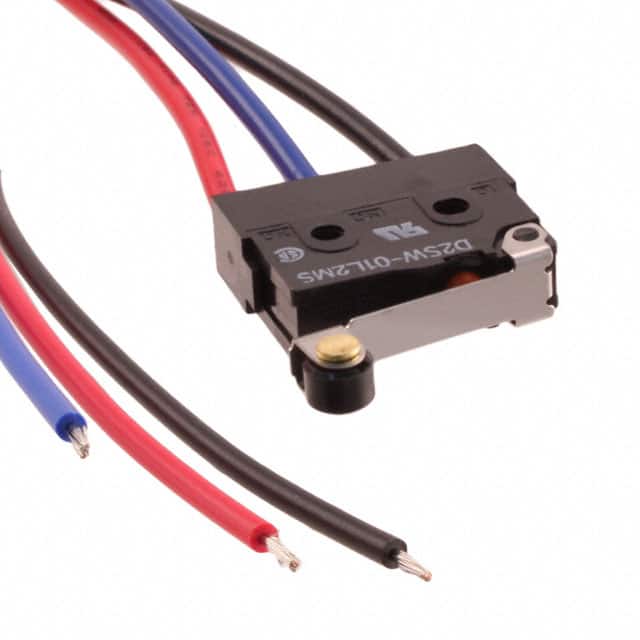

Basic / Snap Action Switches Subminiature Basic Automotive Switch

DIP Switches/SIP Switches Rotary 10 pos top-act. flat
