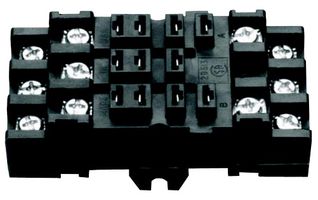

R95-115
Part Number : R95-115
NTE ElectronicRELAY SOCKET; Socket Mounting:DIN Rail Panel; Socket Terminals:Screw; No. of Pins:11Pins; Current Rating:10A; Voltage Rating:300V; Product Range:-; Accessory Type:Square Base Socket; For Use With:Relays ;RoHS Compliant: Yes
NTE112
Part Number : NTE112
NTE ElectronicSCHOTTKY RECTIFIER 30mA 5V DO-35; Diode Configuration:Single; Repetitive Reverse Voltage Vrrm Max:5V; Forward Current If(AV):30mA; Forward Voltage VF Max:550mV; Forward Surge Current Ifsm Max:60mA; Operating Temperature Max:125 C
NTE5720
Part Number : NTE5720
NTE ElectronicTHYRISTOR MODULE 90A 1.2KV; SCR Module Type:Series Connected - SCRs; Peak Repetitive Off-State Voltage Vdrm:1.2kV; Gate Trigger Current Max Igt:150mA; Current It av:90A; Peak Non Rep Surge Current Itsm 50Hz:1.95kA
NTE5070A
Part Number : NTE5070A
NTE ElectronicZENER DIODE 1W 6V AXIAL; Zener Voltag; ZENER DIODE 1W 6V AXIAL; Zener Voltage Vz Typ:6V; Power Dissipation Pd:1W; Diode Case Style:DO-41; No. of Pins:2; MSL:-; Diode Type:Zener; Forward Current If:200A; Forward Voltage:1.2V; Leakage Current:10µA; Package / Case:DO-41
NTE958
Part Number : NTE958
NTE ElectronicLINEAR VOLTAGE REGULATOR 18V TO-220-3; Output Type:Fixed; Input Voltage Min:27V; Input Voltage Max:35V; Fixed Output Voltage Nom.:18V; Adjustable Output Voltage Min:-; Adjustable Output Voltage Max:-; Output Current:1A; MSL:-
NTE8115
Part Number : NTE8115
NTE ElectronicFUSE THERMAL 117 C 15A 277V; Functioning Temperature:117 C; Holding Temperature:-; Voltage Rating VAC:277V; Fuse Current:15A; Fuse Terminals:Axial Leaded; Product Range:-; Fuse Size:3.22 "; Packaging:Each ;RoHS Compliant: Yes
NTE6087
Part Number : NTE6087
NTE ElectronicSCHOTTKY RECTIFIER 30A 45V TO-220; Diode Configuration:Dual Common Cathode; Repetitive Reverse Voltage Vrrm Max:45V; Forward Current If(AV):30A; Diode Case Style:TO-220; No. of Pins:3Pins; Forward Voltage VF Max:820mV ;RoHS Compliant: Yes
NTE1910
Part Number : NTE1910
NTE ElectronicLINEAR VOLTAGE REGULATOR 9V 3-TO-220; Output Type:Fixed; Input Voltage Min:-15V; Input Voltage Max:35V; Fixed Output Voltage Nom.:9V; Adjustable Output Voltage Min:-; Adjustable Output Voltage Max:-; Output Current:1A; MSL:- ;RoHS Compliant: Yes
NTE167
Part Number : NTE167
NTE ElectronicBRIDGE RECTIFIER SINGLE PHASE 2A 200V THOUGH HOLE; No. of Phases:Single; Repetitive Reverse Voltage Vrrm Max:200V; Forward Current If(AV):2A; Bridge Rectifier Case Style:SIP; Forward Voltage VF Max:1.1V; No. of Pins:4
NTE2347
Part Number : NTE2347
NTE ElectronicBIPOLAR TRANSISTOR NPN 80V TO-39; Transistor Polarity:NPN; Collector Emitter Voltage V(br)ceo:80V; Transition Frequency ft:50MHz; Power Dissipation Pd:1W; DC Collector Current:5A; DC Current Gain hFE:40hFE; No. of Pins:3Pins ;RoHS Compliant: Yes
NTE3090
Part Number : NTE3090
NTE ElectronicOPTOCOUPLER SCHMITT TRIGGER 7500VRMS; No. of Channels:1 Channel; Isolation Voltage:7.5kV; Data Rate:-; Optocoupler Case Style:-; No. of Pins:6Pins; Packaging:Each; Product Range:-; DC Collector Current:0.05A
NTE525
Part Number : NTE525
NTE ElectronicFAST RECOVERY DIODE 0.5A 2KV AXIAL; Diode Configuration:Single; Repetitive Reverse Voltage Vrrm Max:2kV; Forward Current If(AV):500mA; Forward Voltage VF Max:4V; Reverse Recovery Time trr Max:500ns; Operating Temperature Max:175 C ;RoHS Compliant: Yes
NTE5348
Part Number : NTE5348
NTE ElectronicBRIDGE RECTIFIER SINGLE PHASE 100A 600V SCREW; No. of Phases:Single; Repetitive Reverse Voltage Vrrm Max:600V; Forward Current If(AV):-; Bridge Rectifier Case Style:Module; Forward Voltage VF Max:1.2V; No. of Pins:4Pins ;RoHS Compliant: Yes
NTE5465
Part Number : NTE5465
NTE ElectronicSCR THYRISTOR 10A 400V TO-220; Peak Repetitive Off-State Voltage Vdrm:400V; Gate Trigger Current Max Igt:15mA; Current It av:-; On State RMS Current IT(rms):10A; Thyristor Case Style:TO-220; No. of Pins:3; MSL:-
NTE5547
Part Number : NTE5547
NTE ElectronicSCR THYRISTOR 35A 600V TO-48; SCR Module Type:Single SCR; Peak Repetitive Off-State Voltage Vdrm:600V; Gate Trigger Current Max Igt:30mA; On State RMS Current IT(rms):35A; Peak Non Rep Surge Current Itsm 50Hz:300A
NTE56008
Part Number : NTE56008
NTE ElectronicTRIAC 600V 15A TO-220; Peak Repetitive Off-State Voltage Vdrm:600V; On State RMS Current IT(rms):15A; Triac Case Style:TO-220; Gate Trigger Current Max (QI) Igt:75mA; Gate Trigger Voltage Max Vgt:2.5V; Peak Gate Power:20W; MSL:-;RoHS Compliant: Yes
NTE5809
Part Number : NTE5809
NTE ElectronicSTANDARD DIODE 3A 1.2KV DO-27; Repetitive Reverse Voltage Vrrm Max:1.2kV; Forward Current If(AV):3A; Diode Configuration:Single; Forward Voltage VF Max:1.4V; Reverse Recovery Time trr Max:-; Forward Surge Current Ifsm Max:200A
NTE585
Part Number : NTE585
NTE ElectronicSCHOTTKY RECTIFIER 1A 40V DO-41; Diode Configuration:Single; Repetitive Reverse Voltage Vrrm Max:40V; Forward Current If(AV):1A; Diode Case Style:DO-41; No. of Pins:2Pins; Forward Voltage VF Max:900mV; Packaging:Each ;RoHS Compliant: Yes
NTE264
Part Number : NTE264
NTE ElectronicDARLINGTON TRANSISTOR PNP -100V TO-220; Transistor Polarity:PNP; Collector Emitter Voltage V(br)ceo:100V; Power Dissipation Pd:65W; DC Collector Current:10A; DC Current Gain hFE:20000hFE; No. of Pins:3Pins; Product Range:-; MSL:- ;RoHS Compliant: Yes
