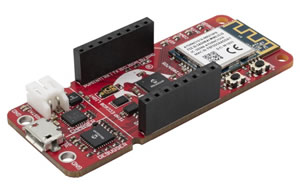

The PIC-IoT WG Development Board combines a powerful PIC24FJ128GA705 MCU, an ATECC608A CryptoAuthentication™ secure element IC and the fully-certified ATWINC1510 Wi-Fi® network controller - which provides the most simple and effective way to connect your embedded application to the Google Cloud IoT Core. The board also includes an on-board debugger, and requires no external hardware to program and debug the MCU. Out of the box, the MCU comes preloaded with firmware that enables you to quickly connect and send data to the Google Cloud Platform using the on-board temperature and light sensors. Once you are ready to build your own custom design, you can easily generate code using the free software libraries in MPLAB Code Configurator (MCC). The PIC-IoT WG Board is supported by MPLAB® X IDE. Features: PIC24FJ128GA705 microcontroller 128 KB Flash Memory & 16 KB SRAM ATWINC1510 WiFi Module Single-band 2.4GHz b/g/n IoT Network Controller, Pre-certified Module ATECC608A CryptoAuthentication™ device Protected Storage for 16 Keys, SHA256, AES-CCM, ECDH (Elliptic Curve Diffie-Hellman), ECDSA Other Board Features Four Status LED’s Blue LED indicates a connection to Wi-Fi network Green LED indicates a connection to the Google Cloud servers Yellow LED indicates a packet of sensor data has been successfully published to the Google Cloud MQTT servers Red LED indicates an Error occurred Two mechanical buttons TEMT6000 Light sensor MCP9808 Temperature sensor mikroBUS header to interface to MikroElekronika click Boards™ On-board Debugger Auto-ID for board identification in Microchip MPLAB X Programming and debugging Virtual COM port (CDC) One logic analyser channel (DGI GPIO) USB and battery powered Integrated Li-Ion/LiPo battery charger
