LUXEON 5050 Square Les Warm White-6V- CCT 2700K CRI 80

LUXEON 5050 Square Les Cool White CCT 6500K CRI 80

LUXEON MATRIX XF 3535L 36UP 10MMX300MM CCT 4000K CRI 90

LED, LUXEON, SIDE EMIT, AMBER; LED Colour:Amber; LED Mounting:SMD; Forward Current If:385mA; Forward Voltage:2.95V; Wavelength Typ:597nm; Viewing Angle:85°; MSL:-; SVHC:No SVHC (07-Jul-2017); Beam Pattern:Side Emitting; Forward Current @ Test:350mA; Forward Current If Max:385mA; Forward Current If(AV):350mA; Forward Voltage @ Test:2.95V; Forward Voltage VF Max:3.51V; Luminous Flux:38lm; Luminous Flux @ Test:38lm; Luminous Flux Min:23.5lm; Luminous Flux Typ:38lm; No. of Pins:2Pins; Peak Forward Current:550mA; Power @ Test:1W; Storage Temperature Max:120°C; Storage Temperature Min:-40°C; Voltage Vf Min:2.31V; Voltage Vf Typ:2.95V; Wavelength Max:597nm; Wavelength Min:584.5nm

LED, LUXEON, RING, 6, WHITE; Product Range:-; LED Module Type:Board + LED + Connector; LED Colour:Cool White; CCT:10000K; Luminous Flux @ Test:125lm; Luminous Flux @ Max:-; Power Rating:-; Supply Voltage:10V; Forward Current @ Test:700mA; Power Module Configuration:Ring; Operating Temperature Min:-40°C; Operating Temperature Max:75°C; MSL:-; SVHC:No SVHC (07-Jul-2017); Colour Temperature Max:10000K; Colour Temperature Min:4500K; Colour Temperature Typ:5500K; External Diameter:81mm; External Length / Height:15.7mm; Forward Current If:700mA; Forward Current If Max:700mA; Forward Current If(AV):700mA; Forward Voltage VF Max:12V; Luminous Flux:125lm; Luminous Flux Min:70lm; Luminous Flux Typ:125lm; Luminous Intensity White Typ:125lm; No. of LEDs:6LEDs; Operating Temperature Range:-40°C to +75°C; Panel Cutout Diameter:26mm; Peak Forward Current:1A; Reverse Protection Voltage:5V; Storage Temperature Max:75°C; Storage Temperature Min:-40°C; Viewing Angle:10°; Voltage Vf Min:8V; Voltage Vf Typ:10V

LED, LUXEON, STAR, W OPTIC, AMBER; Product Range:-; LED Colour:Amber; Wavelength Typ:597nm; Viewing Angle:110°; Luminous Flux @ Test:25lm; Forward Current If Max:385mA; Forward Current @ Test:350mA; Forward Voltage @ Test:2.95V; Luminous Intensity @ Test:-; MSL:-; SVHC:No SVHC (07-Jul-2017); Beam Pattern:Batwing; Current Rating:385mA; External Depth:19.9mm; External Length / Height:6.4mm; External Width:19mm; Forward Current If:385mA; Forward Current If(AV):350mA; Forward Voltage VF Max:3.27V; LED Mounting:SMD; Luminous Flux:25lm; Luminous Flux Typ:25lm; No. of Pins:2Pins; Operating Temperature Max:75°C; Operating Temperature Min:-40°C; Operating Temperature Range:-40°C to +75°C; Peak Forward Current:550mA; Power @ Test:1W; Storage Temperature Max:75°C; Storage Temperature Min:-40°C; Voltage Vf Typ:2.85V; Wavelength Max:970nm; Wavelength Min:587.5nm

LED, LUXEON V, ROYAL, BLUE; Product Range:-; LED Colour:Royal Blue; Wavelength Typ:460nm; Viewing Angle:150°; Luminous Flux @ Test:-; Forward Current If Max:700mA; Forward Current @ Test:700mA; Forward Voltage @ Test:6.84V; Luminous Intensity @ Test:-; Power Dissipation Pd:500mW; Automotive Qualification Standard:-; MSL:-; SVHC:No SVHC (07-Jul-2017); Beam Pattern:Lambertian; Bulb Size:5.6mm; Current Rating:700mA; External Diameter:8mm; External Length / Height:5.86mm; Forward Current If:700mA; Forward Current If(AV):700mA; Forward Voltage VF Max:8.31V; LED / Lamp Size:5.6mm; LED Mounting:SMD; Luminous Intensity Typ:500mW/cm²; No. of Pins:2Pins; Operating Temperature Max:120°C; Operating Temperature Min:-40°C; Operating Temperature Range:-40°C to +120°C; PIV Max:5V; Peak Forward Current:1000mA; Peak Wavelength:455nm; Power @ Test:4.8W; Radiometric Power:700mW; Radiometric Power Min:275mW; Storage Temperature Max:120°C; Storage Temperature Min:-40°C; Voltage Rating V DC:3.99V; Voltage Vf Min:5.43V

LED, LUXEON V SIDE EMIT BLUE; Product Range:-; LED Colour:Blue; Wavelength Typ:490nm; Viewing Angle:85°; Luminous Flux @ Test:43lm; Forward Current If Max:700mA; Forward Current @ Test:700mA; Forward Voltage @ Test:6.84V; Luminous Intensity @ Test:-; MSL:-; SVHC:No SVHC (07-Jul-2017); Beam Pattern:Side Emitting; Current Rating:700mA; External Diameter:8mm; External Length / Height:6.09mm; Forward Current If:700mA; Forward Current If(AV):700mA; Forward Voltage VF Max:8.31V; LED Mounting:SMD; Luminous Flux @ Max:43lm; Luminous Flux Min:23.5lm; Luminous Flux Typ:27lm; No. of Pins:2Pins; Operating Temperature Max:120°C; Operating Temperature Min:-40°C; Operating Temperature Range:-40°C to +120°C; PIV Max:5V; Peak Forward Current:1000mA; Peak Wavelength:470nm; Power @ Test:4.8W; Storage Temperature Max:120°C; Storage Temperature Min:-40°C; Total Light Output:27lm; Voltage Rating V DC:8.31V; Voltage Vf Min:5.43V; Voltage Vf Typ:6.84V; Wavelength Max:490nm; Wavelength Min:460nm

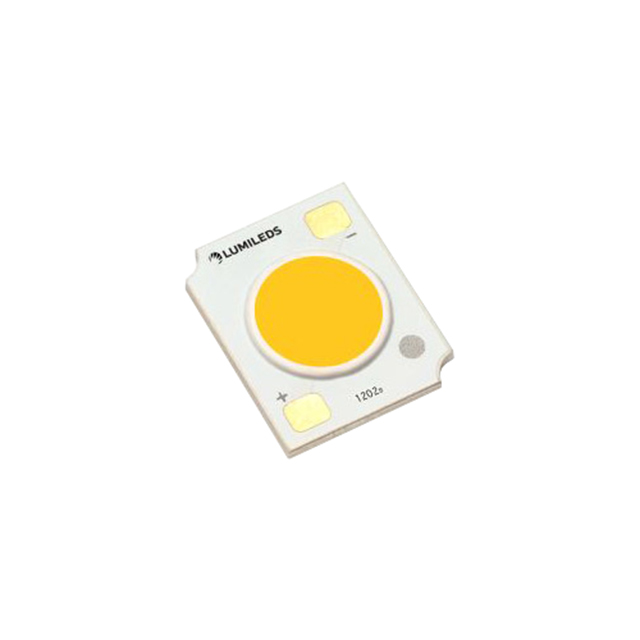

LUXEON CX PLUS COB - HIGH DENSITY (BELOW BBL) S02H6 WARM-WHITE COB 95 CRI 2 SDCM CCT 2700K CRI 95

Square LED Module 12 LEDs Screw Mount Tray

LUXEON RUBIX RED CCT 620NM-630NM CRI N/A

LUXEON Mid-Power-Cool White-2835R 3V CCT 6500K 80 CRI

LUXEON MID-POWER 2835N 3V WARM-WHITE 2835N 3V 80 CRI 3 SDCM (P,Q,X,Y) CCT 1800K CRI 80

LED Chip Warm White 1800K 480mA 2-Pin SMD T/R

LUXEON Mid-Power- Cool-white 2835R 3V CCT 6500K 90 CRI

LUXEON MID-POWER 2835N 3V WARM-WHITE 2835N 3V 90 CRI 3 SDCM (P,Q,X,Y) CCT 1800K CRI 90

LUXEON Mid-Power- Neutral-white 2835R 3V CCT 3000K 80 CRI

LUXEON MID-POWER 2835 WARM-WHITE 2835HE 3V 95 CRI FULL DISTRIBUTION 2700K 95

LED Standard Neutral White 5000K 480mA 2-Pin SMD T/R

LED Standard Warm White 3000K 240mA 2-Pin SMD T/R
