OPTOISOLATOR TRANSISTOR

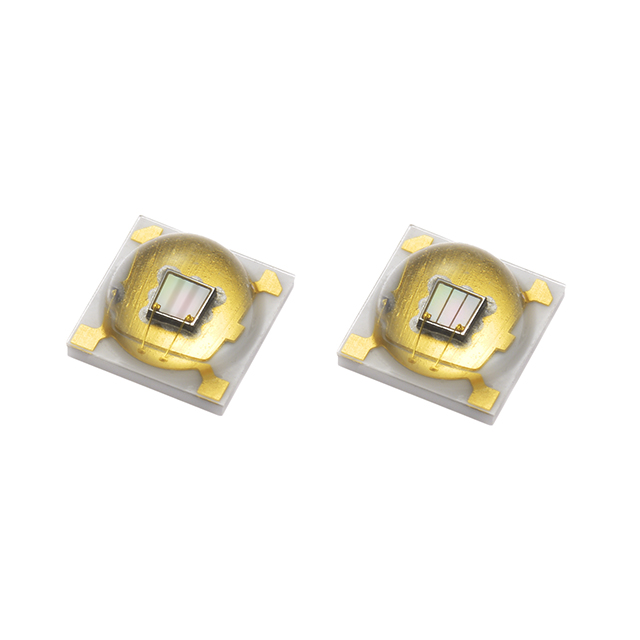

UV POWER LED C3.5X3.5X2.15MM LENS TYPE, 412NM, 1000 MW, 3.7V

UV POWER LED C3.5X3.5X2.15MM LENS TYPE, 417NM, 1000 MW, 3.7V

AMBIENT LIGHT PHOTO SENSOR

AMBIENT LIGHT PHOTO SENSOR

OPTOCOUPLER, MINI-FLAT, 4 PIN, AC INPUT, PTR OUTPUT, 2.0MM, T/R

OPTOCOUPLER, MINI-FLAT, 4 PIN, PHOTODARLINGTON OUTPUT, 2.0MM, T/R

OPTOCOUPLER, MINI-FLAT, 4 PIN, STD, PTR OUTPUT, 2.0MM, T/R

OPTOCOUPLER, MINI-FLAT, 4 PIN, STD, PTR OUTPUT, 2.0MM, T/R

photocoupler

Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP

Standard LEDs - SMD SMD LTST-C191KFKT-TH1 0603 TYPE

SMD LED

IRED, 940, SMD, IR, CLEAR

Chip LED Red/Green/Blue 630nm/535nm/475nm 19mA 4-Pin SMD T/R

Lite-On LTST-S110TGKT, 525 nm Green LED, 3016 (1206) Side View SMD package. Mounting Type: Surface Mount. Forward Voltage: 3.6 V. Luminous Intensity: 450 mcd. Viewing Angle: 130 °. Lens Shape: Rectangle. Dimensions: 3.2 x 1mm. Lens Colour: Clear. LED Material: InGaN.

Lite-On, LTV-817D DC Input Transistor Output Optocoupler, Through Hole, 4-Pin PDIP. Maximum Forward Voltage: 1.4V. Typical Rise Time: 4µs. Maximum Input Current: 50 mA. Isolation Voltage: 5 kVrms. Maximum Current Transfer Ratio: 6.0. Minimum Current Transfer Ratio: 300 %. Typical Fall Time: 3µs. Series: LTV-8x7.

Lite-On, LTV-3150-L DC Input IGBT, MOSFET Output Optocoupler, Surface Mount, 8-Pin DIP. Maximum Forward Voltage: 1.8V. Typical Rise Time: 42 (Output) ns, 500 (Input) ns. Maximum Input Current: 25 mA. Isolation Voltage: 5000 (Minimum) Vrms. Logic Output: Yes. Typical Fall Time: 50 (Output) ns, 500 (Input) ns. Special Features: 1 A Peak Output Current, AIGaAs LED Optically Coupled, Motor Control Inverter Power Supply System.

Lite-On, LTV-3150-L-S DC Input IGBT, MOSFET Output Optocoupler, Surface Mount, 8-Pin DIP. Maximum Forward Voltage: 1.8V. Typical Rise Time: 42 (Output) ns, 500 (Input) ns. Maximum Input Current: 25 mA. Isolation Voltage: 5000 (Minimum) Vrms. Logic Output: Yes. Typical Fall Time: 50 (Output) ns, 500 (Input) ns. Special Features: 1 A Peak Output Current, AIGaAs LED Optically Coupled, Motor Control Inverter Power Supply System.

Lite-On OPTOCOUPLER, PTR, HCEV, 6 PIN, BIN 'B'
