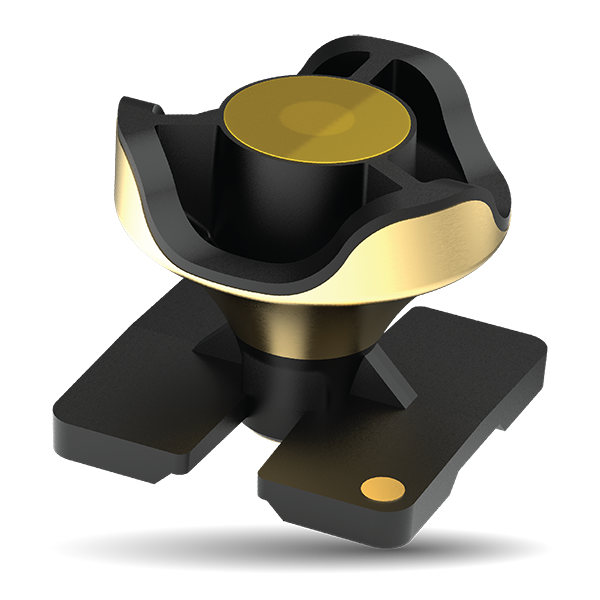

UWB LDS Antenna (“Tulip”)

Kyocera

Part Number: 9002305L0-L01K

Inventory

Distributor SKU Stock Cost
DigiKey 478-9002305L0-L01-04-ND 5 $18.95 Buy
Mouser Electronics 581-9002305L0-L01K 452 $5.38 Buy
Rutronik 9002305L0-L01K Buy
Description

UWB LDS Antenna (“Tulip”)

KYOCERA AVXs’ 9002305L0-L01K is an innovative - one of its kind on-board UWB antenna optimised for applications spanning 6.0 – 8.5 GHz.

Winner of the Electronics Excellence Award at embedded world 2024. (Full story here)

Key Benefits:

  • Stay-in-tune
    • KYOCERA AVXs antenna technology provides superior RF field containment, resulting in less interaction with surrounding components
  • Quicker Time-to-Market
    • By optimising antenna size, performance and emissions, customer and regulatory specifications are more easily met
  • Environmental Compliance
    • Products are the latest RoHS and REACH version compliant

Applications:

  • Anchors
  • Handheld
  • Telematics
  • Tracking
  • Healthcare (FDA Class 1)
  • M2M industrial devices
  • Smart city
  • Smart mobility
  • Fitness
  • Smart Retail
  • Connectivity
  • Security
Ordering Part # 9002305L0-L01K
Dimensions (mm) 6.40 x 6.40 x 5.58
Weight (grams) < 0.1
Mounting SMT (Pick-and-Place)
Demo Board 9002305L0-L01-04
Storage Temperature (°C) / Humidity -40 to +85 / 45~75% (Sealed Shipping Pack)
Operation Temperature (°C) -40 to +85
Packaging Tape & Reel
Variant 9002305L0-L01 (without Polyimide Adhesive)
