Dip Switch BCD 10 Position Through Hole Rotary for Tool Actuator 30mA 15VDC

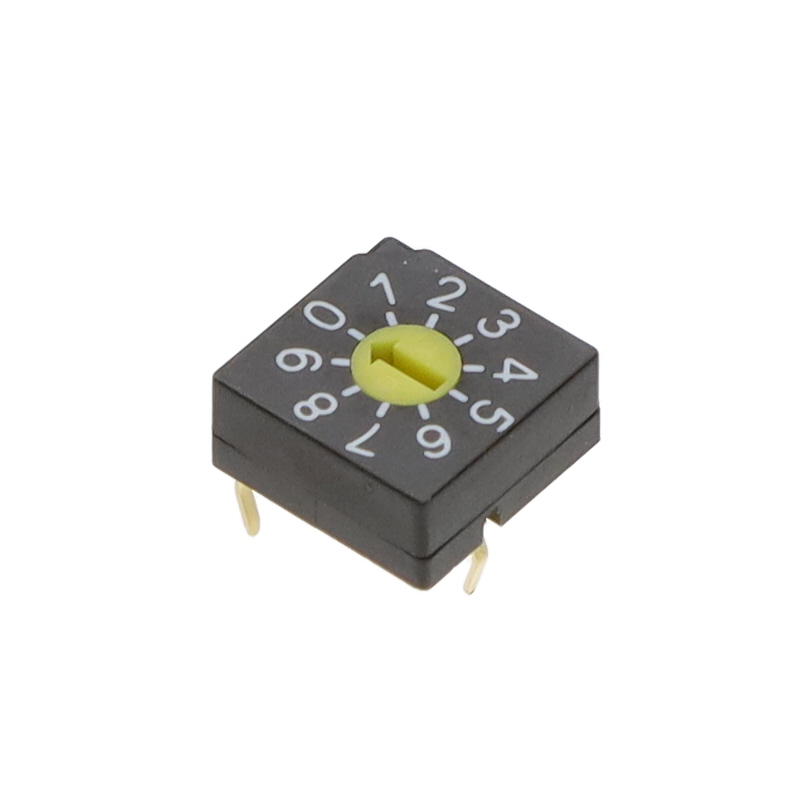

SWITCH BCD HORIZ; Product Range:DRS3000 Series; Switch Mounting:Through Hole; No. of Switch Positions:10 Position; Switching Voltage:50VDC; Output Code:BCD; Switching Current:100mA; Switch Construction:Sealed; Actuator Level:Flushed; SVHC:No SVHC (12-Jan-2017); Angle:36°; Angle of Throw:36°; Contact Current @ Contact Voltage DC Max:30mA; Contact Current DC Max:30mA; Contact Current Rating:100mA; Contact Resistance:100mohm; Contact Voltage DC Max:50V; Dielectric Strength VDC:250V; External Depth:10mm; External Length / Height:4.8mm; External Width:10mm; Indexing Angle:36°; No. of Mechanical Operations:20000; No. of Positions:10Ways; Operating Temperature Max:75°C; Operating Temperature Min:-25°C; Pin Configuration:0.65x0.35mm

SWITCH HEX HORIZ; No. of Switch Positions:16 Position; Illumination:Non Illuminated; Product Range:DRS3000 Series; Angle of Throw:22.5°; Contact Current AC Max:-; Contact Current DC Max:30mA; Contact Voltage AC Max:-; Contact Voltage DC Max:50V; No. of Poles:1 Pole; SVHC:No SVHC (12-Jan-2017); Angle:22.5°; Contact Current @ Contact Voltage DC Max:30mA; Contact Current Rating:100mA; Contact Resistance:100mohm; Dielectric Strength VDC:250V; External Depth:10mm; External Length / Height:4.8mm; External Width:10mm; Indexing Angle:22.5°; No. of Mechanical Operations:20000; No. of Positions:16Ways; Operating Temperature Max:75°C; Operating Temperature Min:-25°C; Pin Configuration:0.65x0.35mm

Switch Slide ON ON Top Slide 0.3A 12VDC 10000Cycle Gull Wing SMD T/R

SWITCH ON-MOM SPDT; Switch Operation:On-(On); Contact Configuration:SPDT; Contact Voltage AC Nom:250V; Contact Voltage DC Nom:30V; Contact Current Max:6A; Switch Terminals:Solder; Product Range:Heavy Duty Series; SVHC:No SVHC (12-Jan-2017); Actuation Type:Plunger; Bush Diameter:12mm; Contact Current @ Contact Voltage AC Max:3A; Contact Current AC Max:6A; Contact Resistance:10mohm; Contact Resistance Max:10mohm; Dielectric Strength VAC:1500V; External Depth:8mm; External Length / Height:30.7mm; External Width:13mm; Insulation Resistance:1000Mohm; No. of Mechanical Operations:30000; Operating Temperature Max:140°C; Operating Temperature Min:45°C; Panel Cutout Diameter:12.5mm; Thread Size:15/32-32

Switch Push Button ON ON DPDT Round Plunger 6A 250VAC 30VDC Solder Lug Panel Mount

Switch Slide ON ON SPDT Top Slide 6A 250VAC 30VDC 20000Cycle PC Pins Thru-Hole

Switch Slide ON ON SPDT Top Slide 6A 250VAC 30VDC 20000Cycle Solder Tag Panel Mount

ROTARY SWITCH 1POLE 10WAY; No. of Switch Positions:10 Position; Illumination:Non Illuminated; Product Range:MR1-10 Series; Angle of Throw:36°; Contact Current AC Max:150mA; Contact Current DC Max:150mA; Contact Voltage AC Max:125V; Contact Voltage DC Max:24V; No. of Poles:1 Pole; SVHC:No SVHC (12-Jan-2017); Angle:30°; Contact Current DC:0.5A; Contact Current Min:0.5mA; Contact Current Rating:0.5A; Indexing Angle:36°; Insulation Resistance:100Mohm; No. of Mechanical Operations:30000; No. of Positions:10Ways; Operating Temperature Max:110°C; Operating Temperature Min:-45°C; Proof Voltage:1000V; Shaft Diameter:3.2mm

PUSHBUTTON SWITCH 1POLE; Switch Operation:Off-(On); Contact Configuration:SPDT; Contact Voltage AC Nom:125V; Contact Voltage DC Nom:24V; Contact Current Max:3A; Switch Terminals:Solder; Product Range:MSP Series; SVHC:No SVHC (12-Jan-2017); Actuation Type:Plunger; Actuator / Cap Colour:Orange; Colour:Brown; Contact Current @ Contact Voltage AC Max:1A; Contact Current @ Contact Voltage AC Min:3A; Contact Current AC Max:3A; Contact Resistance Max:30mohm; Dielectric Strength VAC:1000VAC; External Diameter:12mm; External Length / Height:17.5mm; Height Max:26mm; Insulation Resistance:500Mohm; Lead Spacing:6mm; Material:Phenolformaldehyde; No. of Mechanical Operations:30000; Operating Temperature Max:110°C; Operating Temperature Min:-45°C; Panel Cutout Diameter:6mm; Proof Voltage:1000V; Shaft Diameter:4mm; Thread Size:M6 x 0.75; Travel:2.5mm

PUSHBUTTON SWITCH 1POLE; Switch Operation:On-(On); Contact Configuration:SPDT; Contact Voltage AC Nom:125V; Contact Voltage DC Nom:24V; Contact Current Max:3A; Switch Terminals:Solder; Product Range:MSP Series; SVHC:No SVHC (12-Jan-2017); Actuation Type:Plunger; Actuator / Cap Colour:Black; Colour:Black; Contact Current @ Contact Voltage AC Max:1A; Contact Current @ Contact Voltage AC Min:3A; Contact Current AC Max:3A; Contact Resistance Max:30mohm; Dielectric Strength VAC:1000VAC; External Diameter:12mm; External Length / Height:17.5mm; Height Max:26mm; Insulation Resistance:500Mohm; Lead Spacing:6mm; Material:Phenolformaldehyde; No. of Mechanical Operations:30000; Operating Temperature Max:110°C; Operating Temperature Min:-45°C; Panel Cutout Diameter:6mm; Proof Voltage:1000V; Shaft Diameter:4mm; Thread Size:M6 x 0.75; Travel:2.5mm

PUSHBUTTON SWITCH 1POLE; Switch Operation:Off-(On); Contact Configuration:SPDT; Contact Voltage AC Nom:125V; Contact Voltage DC Nom:24V; Contact Current Max:3A; Switch Terminals:Solder; Product Range:MSP Series; SVHC:No SVHC (12-Jan-2017); Actuation Type:Plunger; Actuator / Cap Colour:Black; Colour:Brown; Contact Current @ Contact Voltage AC Max:1A; Contact Current @ Contact Voltage AC Min:3A; Contact Current AC Max:3A; Contact Resistance Max:30mohm; Dielectric Strength VAC:1000VAC; External Diameter:12mm; External Length / Height:17.5mm; Height Max:26mm; Insulation Resistance:500Mohm; Lead Spacing:6mm; Material:Phenolformaldehyde; No. of Mechanical Operations:30000; Operating Temperature Max:110°C; Operating Temperature Min:-45°C; Panel Cutout Diameter:6mm; Proof Voltage:1000V; Shaft Diameter:4mm; Thread Size:M6 x 0.75; Travel:2.5mm

PUSHBUTTON SWITCH 2POLE; Switch Operation:On-(On); Contact Configuration:DPDT; Contact Voltage AC Nom:125V; Contact Voltage DC Nom:30V; Contact Current Max:3A; Switch Terminals:Solder; Product Range:MPS203R Series; SVHC:No SVHC (12-Jan-2017); Actuator / Cap Colour:Black; Contact Current AC Max:3A; External Depth:13mm; External Length / Height:29.5mm; External Width:13mm; Operating Temperature Max:80°C; Operating Temperature Min:-20°C; Panel Cutout Diameter:6.2mm

Switch Toggle ON ON SPDT Round Lever PC Pins 0.000001A 28VDC 0.4VA PC Mount

Switch Tactile N.O. DPST Round Button Gull Wing 0.05A 12VDC 1N SMD Tube/T/R

Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 12VDC 3.2N SMD T/R

Toggle Switch ATE 1 Series SPDT On-On Through Hole 50 mA 48 V ;RoHS Compliant: Yes

ROTARY CODED SWITCH; No. of Switch Positions:16 Position; Illumination:Non Illuminated; Product Range:SMR13016 Series; Angle of Throw:-; Contact Current AC Max:-; Contact Current DC Max:-; Contact Voltage AC Max:-; Contact Voltage DC Max:50V; No. of Poles:-; SVHC:No SVHC (12-Jan-2017); Actuator Level:Flushed; Contact Resistance:200mohm; Contact Voltage DC Min:5VDC; Operating Temperature Max:75°C; Operating Temperature Min:-25°C; Output Code:Hexadecimal; Proof Voltage:250V; Repeatability:20000; Switch Construction:Sealed; Switch Mounting:SMD; Switching Current:100mA; Switching Voltage:50VDC

Switch Slide ON ON SPDT Extended Top Slide 0.35A 30VDC 10000Cycle Quick Connect Panel Mount

Switch DIP SP16T 16 Flush Screwdriver 0.1A 5VDC PC Pins 10000Cycle 2.54mm Thru-Hole
