Q3-Class Hiperfets, Package Style: TO-247

Q-Class Hiperfets, Package Style: SOT-227B

MOSFET N TO-247; Transistor Polarity:N Channel; Continuous Drain Current Id:88A; Drain Source Voltage Vds:300V; On Resistance Rds(on):40mohm; Rds(on) Test Voltage Vgs:10V; Threshold Voltage Vgs:5V; Power Dissipation Pd:600W; Transistor Case Style:TO-247; No. of Pins:3Pins; Operating Temperature Max:150°C; Product Range:-; Automotive Qualification Standard:-; MSL:-; SVHC:No SVHC (12-Jan-2017); Capacitance Ciss Typ:6300pF; Current Id Max:88A; Junction to Case Thermal Resistance A:0.21°C/W; N-channel Gate Charge:180nC; Operating Temperature Min:-55°C; Operating Temperature Range:-55°C to +150°C; Reverse Recovery Time trr Max:200ns; Termination Type:Through Hole; Voltage Vds Typ:300V; Voltage Vgs Max:20V; Voltage Vgs Rds on Measurement:10V

Polar Hiperfets (150V To 300V) With Reduced Rds(On), Package Style: TO-268

Standard Hiperfets (50V To 1200V), Package Style: PLUS247

MOSFET N-CH 300V 94A TO-3P; Transistor Polarity:N Channel; Continuous Drain Current Id:94A; Drain Source Voltage Vds:300V; On Resistance Rds(on):0.036ohm; Rds(on) Test Voltage Vgs:10V; Threshold Voltage Vgs:5V; Power Dissipation ;RoHS Compliant: Yes

MOSFET N CH 300V 210A TO-264; Transistor Polarity:N Channel; Continuous Drain Current Id:210A; Drain Source Voltage Vds:300V; On Resistance Rds(on):0.0145ohm; Rds(on) Test Voltage Vgs:10V; Threshold Voltage Vgs:5V; Power Dissipation Pd:1.89kW; Transistor Case Style:TO-264; No. of Pins:3Pins; Operating Temperature Max:150°C; Product Range:-; Automotive Qualification Standard:-; MSL:-; SVHC:No SVHC (12-Jan-2017)

Polar Hiperfets (500V To 1200V) With Reduced Rds(On), Package Style: TO-220 Overmolded

Polar3 Hiperfets, Package Style: TO-252

Polar3 Hiperfets, Package Style: TO-263

Polar3 Hiperfets, Package Style: TO-220

IXFP12N50P Series 500 V 12 A 500 mOhm PolarTM Power MOSFET - TO-220-3

Polar3 Hiperfets, Package Style: TO-263

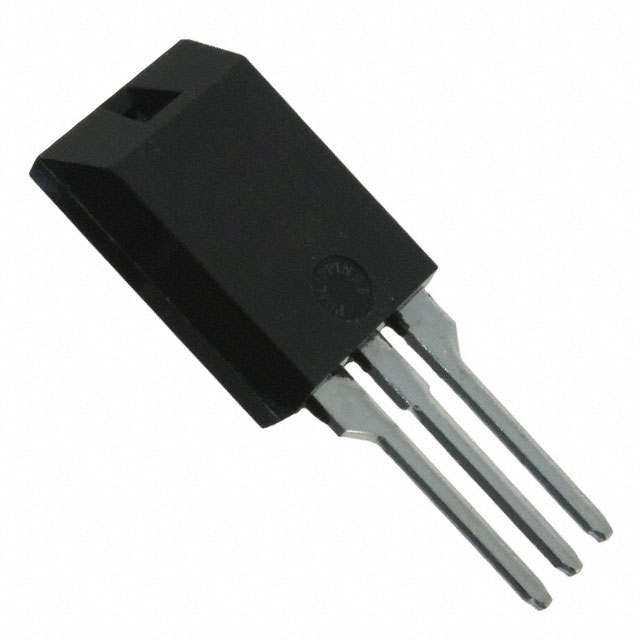

Standard Hiperfets (50V To 1200V), Package Style: ISOPLUS220

Standard Hiperfets (50V To 1200V), Package Style: ISOPLUS220

Polar2 Hiperfets, Package Style: TO-3P

Polar Hiperfets (500V To 1200V) With Reduced Rds(On), Package Style: PLUS220

Polar3 Hiperfets, Package Style: TO-263

Q3-Class Hiperfets, Package Style: TO-247

Polar Hiperfets (500V To 1200V) With Reduced Rds(On), Package Style: PLUS220
