THERMAL SWITCH NO 65°C 80°C-RESET; Switching Temperature:65°C; Reset Temperature:80°C; Contact Operation:Normally Open; Sensor Terminals:Quick Connect; Sensor Housing:Flange Mount; Contact Rating:120VAC/15A 240VAC/10A; Product Range:2455R Series; Actuating Temperature Max:80°C; Actuating Temperature Min:65°C; Contact Configuration:SPST-NO; No. of Pins:2Pins; No. of Pins:2 Pin

SENSOR SPEED VRS; Supply Voltage Min:-; Supply Voltage Max:-; Sensor Terminals:Connector; Operating Temperature Min:-55°C; Operating Temperature Max:120°C; Speed Sensor Type:VRS General Purpose; Output Voltage (Peak to Peak):190V p-p; Inductance:450mH; Gear Pitch Range:24DP (Module 1.06) or Coarser; Coil Resistance Min:910ohm; Coil Resistance Max:1.2kohm; Housing Diameter:19.05mm; Surface Speed:0.25m/s; Product Range:High Output Series; Sensor Operating Frequency:15kHz

LIMIT SWITCH SPDT TOP ROLLER; Limit Switch Actuator:Top Roller Arm; Contact Configuration:1NO / 1NC; Contact Current AC Max:10A; Contact Voltage AC Max:300V; Operating Force Max:9.8N; Product Range:-; Contact Current DC Max:10A; Contact Voltage DC Max:250V; Actuator Type:Top Roller; Case Material:Plastic; Differential Travel Max:1.5mm; External Depth:31mm; External Length / Height:62mm; External Width:30.5mm; IP / NEMA Rating:IP65; No. of Mechanical Operations:5000000; Operating Position:28.7mm; Operating Temperature Max:80°C; Operating Temperature Min:-10°C; Over Travel Min:3mm; Pre-travel:2.8mm; Return Force Min:1.5N; Supply Voltage DC Max:250VDC; Supply Voltage Max:300VAC; Switch Operation:Off-On; Thermal Current Rating:10A

LIMIT SWITCH SPDT SIDE ROTARY ADJ; Limit Switch Actuator:Side Rotary; Contact Configuration:1NO / 1NC; Contact Current AC Max:10A; Contact Voltage AC Max:300V; Operating Force Max:10N; Product Range:-; Contact Current DC Max:10A; Contact Voltage DC Max:250V; Actuator Type:Side Rotary; Case Material:Plastic; Contact Current Rating:10A; External Depth:42.5mm; External Length / Height:62mm; External Width:30.5mm; IP / NEMA Rating:IP65; No. of Mechanical Operations:5000000; Operating Position:25; Operating Temperature Max:80°C; Operating Temperature Min:-10°C; Return Force Min:2N; Supply Voltage DC Max:250VDC; Supply Voltage Max:300VAC; Switch Operation:Off-On; Thermal Current Rating:10A

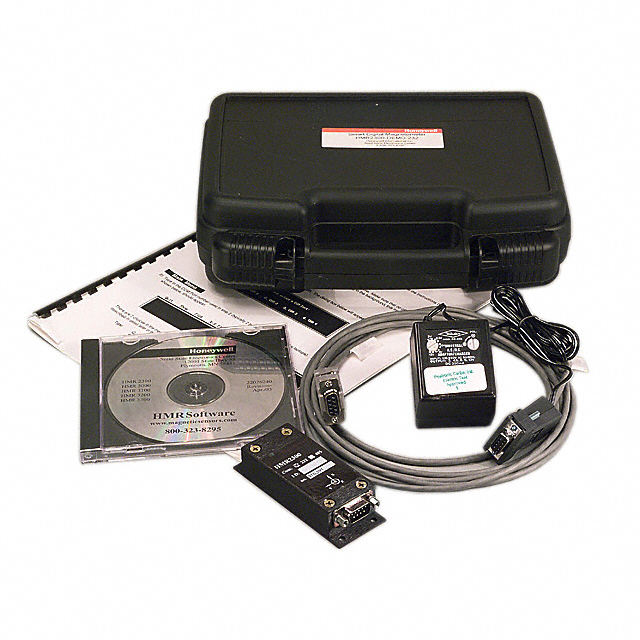

HMR2300 - Magnetic, Magnetometer Sensor Evaluation Board

IN STOCK SHIP TODAY

IN STOCK SHIP TODAY

IN STOCK SHIP TODAY

IN STOCK SHIP TODAY

CONDUCTIVE PLASTIC POTENTIOMETER 150KOHM 20% 2W; Track Resistance:150kohm; Power Rating:2W; Resistance Tolerance: 20%; Product Range:53 Series; No. of Turns:1Turns; Track Taper:Linear; Potentiometer Mounting:Panel; No. of Gangs:1

SENSOR 150PSI DIP AXIAL ABSOLUTE; Operating Pressure Max:150psi; Sensor Output:Voltage; Pressure Measurement Type:Absolute; Voltage Rating:5VDC; Port Style:Single Axial Barbed; Supply Current:1.5mA; Product Range:NBP Series

SENSOR PRESSURE GAUGE 100PSI; Operating Pressure Max:100psi; Sensor Output:Current; Pressure Measurement Type:Sealed Gauge; Voltage Rating:-; Port Style:9/16" - 18 UNF; Supply Current:-; Product Range:-; Pressure Max:100psi; Pressure Type:Gauge

IC DIGITAL COMPASS 3 AXIS 16 PIN; Magnetometer Interface:-; Magnetic Field Min:-8G; Magnetic Field Max:8G; Resolution (Gauss):0.005G; Product Range:HMC5883L; Magnetometer Range:-8G to 8G; Operating Temperature Max:85°C; Operating Temperature Min:-30°C; Operating Temperature Range:-30°C to +85°C; Supply Voltage Range:2.16V DC to 3.6V DC

SENSOR PRESSURE 0-250PSI; Operating Pressure Max:250psi; Sensor Output:Voltage; Pressure Measurement Type:Gauge; Voltage Rating:8VDC; Port Style:NPT; Supply Current:8mA; Product Range:242PC Series; External Depth:58mm; Hysteresis:0.25%; Operating Pressure Min:0psi

SENSOR SPEED MAGNETIC HALL EFFECT; Supply Voltage DC Min:4.5V; Supply Voltage DC Max:26V; Sensor Housing:Cylindrical; No. of Pins:3 Pin; Output Current:-; Product Range:LCZ Series; No. of Pins:3Pins

IC HALL EFFECT SENSOR UNIPOLAR SOT23-3; Hall Effect Type:Unipolar; Output Current:20mA; Sensor Case Style:SOT-23; No. of Pins:3; Supply Voltage Range:3V to 24V; Operating Temperature Range:-40°C to +150°C

SNAP ACTION BASIC SWITCH SPDT LONG ROLLER LEVER; Microswitch Type:Miniature; Microswitch Actuator:Long Roller Lever; Contact Configuration:SPDT; Switch Terminals:Quick Connect Solder; Contact Current Max:100mA; Product Range:-

HALL EFFECT ZERO SPEED SENSOR 4VDC to 24VDC 4 us; Supply Voltage DC Min:4V; Supply Voltage DC Max:24V; Sensor Terminals:Cable; Sensor Housing:Cylindrical; Output Configuration:Open Drain MOFSET; Output Voltage Min:0.6VDC

VRS SPEED SENSOR 55V 275 OHM TO 330 OHM; VRS SPEED SENSOR 55V 275 OHM TO 330 OHM 0.38 ms; Speed Sensor Type:VRS General Purpose; Output Voltage (Peak to Peak):55V p-p; Housing Diameter:9.525mm; Coil Resistance Min:275ohm; Coil Resistance Max:330ohm; Surface Speed:0.38m/s

NTC THERMISTOR; Zero Power Resistance at 25 C:10kohm; Product Range:135 Series; Beta Value (K):3974K; Thermistor Mounting:Through Hole; Thermistor Case Style:DO-35; Thermistor Terminals:Axial Leaded; Operating Temperature Min:-60 C
