MICROSWITCH PLUNGER SPST-NO 20A 250V; Microswitch Type:Standard; Microswitch Actuator:Overtravel Plunger; Contact Configuration:SPST-NO; Switch Terminals:Screw; Contact Current Max:20A; Contact Voltage DC Nom:-; Product Range:-

MICROSWITCH PLUNGER SPST-NO 15A 250V; Microswitch Type:Standard; Microswitch Actuator:Overtravel Plunger; Contact Configuration:SPST-NO; Switch Terminals:Screw; Contact Current Max:15A; Contact Voltage DC Nom:-; Product Range:-

MICRO SWITCH SPDT; Contact Configuration:SPDT; Microswitch Type:-; Actuator Style:-; Switch Operation:-; Operating Force Max:10ozf; Circuitry:SPDT

MICROSWITCH SPDT 20A 480V; Product Range:-; Contact Configuration:SPDT; Switch Terminals:Screw; Contact Current Max:20A; Contact Voltage AC Nom:480VAC; Contact Voltage DC Nom:-; Microswitch Actuator:Pin Plunger

SUBMIN BASIC SWITCH PINPLUNGER SPDT 5A 250V; Microswitch Type:Subminiature; Microswitch Actuator:Leaf Lever; Contact Configuration:SPDT; Switch Terminals:Solder; Contact Current Max:5A; Contact Voltage DC Nom:-; Product Range:-

BASIC SWITCH OT PLUNGER SPDT 10A 250V; Contact Configuration:SPDT; Microswitch Type:Standard; Actuator Style:Overtravel Plunger; Switch Operation:-; Operating Force Max:3.61N; Contact Voltage AC Nom:250V; Contact Current Max:15A

BASIC SWITCH SIM ROLLER LEVER SPDT 10A 250V; Microswitch Type:Miniature; Microswitch Actuator:Simulated Roller Lever; Contact Configuration:SPDT; Switch Terminals:Quick Connect; Contact Current Max:10A; Contact Voltage DC Nom:- ;RoHS Compliant: Yes

BASIC SWITCH STRAIGHT LEVER SPDT 15A 250V; Microswitch Type:Standard; Microswitch Actuator:Straight Lever; Contact Configuration:SPDT; Switch Terminals:Screw; Contact Current Max:15A; Contact Voltage DC Nom:-; Product Range:- ;RoHS Compliant: Yes

SWITCH; Microswitch Type:-; Microswitch Actuator:-; Contact Configuration:-; Switch Terminals:-; Contact Current Max:-; Contact Voltage DC Nom:-; Product Range:SM Series; Contact Voltage AC Nom:-; Operating Force Max:- ;RoHS Compliant: Yes

BASIC SWITCH OT PLUNGER DPDT 15A 250V; Microswitch Type:Standard; Microswitch Actuator:Overtravel Plunger; Contact Configuration:DPDT; Switch Terminals:Screw; Contact Current Max:15A; Contact Voltage DC Nom:-; Product Range:- ;RoHS Compliant: Yes

MICROSWITCH SPDT 11A 277VAC ROLLER LEVER; Microswitch Type:Miniature; Microswitch Actuator:Roller Lever; Contact Configuration:SPDT; Switch Terminals:Quick Connect; Contact Current Max:11A; Contact Voltage DC Nom:- ;RoHS Compliant: Yes

BASIC SWITCH STRAIGHT LEVER SPDT 15A 250V; Contact Configuration:SPDT; Microswitch Type:Standard; Actuator Style:Pin Plunger; Switch Operation:-; Operating Force Max:2.5N; Contact Voltage AC Nom:250V; Contact Current Max:15A

SUBMIN BSC SWTCH SIM ROLLER LEVER SPDT 5A 125V; Contact Configuration:SPDT; Microswitch Type:Subminiature; Microswitch Actuator:Simulated Roller Lever; Operating Force Max:3.35ozf; Contact Voltage AC Nom:125V; Contact Current Max:5A

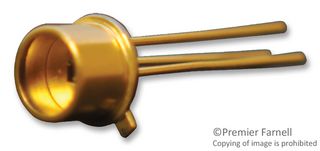

TRANSISTOR PHOTO TO-46-2; No. of Pins:3Pins; Diode Case Style:TO-46; Wavelength of Peak Sensitivity:-; Angle of Half Sensitivity :18 ; Dark Current:20nA; Operating Temperature Min:-55 C; Operating Temperature Max:125 C; MSL:-

OPTIC SENSOR SW TRANSMISSIVE; Sensor Output:Phototransistor; Sensor Mounting:Through Hole; Gap Width:3.18mm; Aperture Width:0.25mm; Forward Current If:50mA; Reverse Voltage Vr:3V; Forward Voltage:1.6V; Product Range:HOA087X Series; Automotive Qualification Standard:-; Input Current:20mA; No. of Channels:1Channels; No. of Pins:4Pins; Optocoupler Output Type:Phototransistor; Output Voltage:30V; Packaging:Each

THERMAL SWITCH NC 40 C 25 C-RESET; Switching Temperature:40 C; Reset Temperature:25 C; Contact Operation:Normally Closed; Sensor Terminals:Quick Connect; Sensor Housing:Flange Mount; Contact Rating:120VAC/15A 240VAC/10A; Product ;RoHS Compliant: Yes

THERMAL SWITCH NC 140 C 115 C; Switching Temperature:140 C; Reset Temperature:115 C; Contact Operation:Normally Closed; Sensor Terminals:Quick Connect; Sensor Housing:Flange Mount; Contact Rating:120VAC/15A 240VAC/10A; Product ;RoHS Compliant: Yes

THERMAL SWITCH SPST-NO 120VAC/15A 240VAC/10A; Switching Temperature:35 C; Reset Temperature:50 C; Contact Operation:Normally Open; Sensor Terminals:Quick Connect; Sensor Housing:Flange Mount; Contact Rating:120VAC/15A 240VAC/10A ;RoHS Compliant: Yes

THERMAL SWITCH NO 115 C 140 C; Switching Temperature:115 C; Reset Temperature:140 C; Contact Operation:Normally Open; Sensor Terminals:Quick Connect; Sensor Housing:Flange Mount; Contact Rating:120VAC/15A 240VAC/10A; Product ;RoHS Compliant: Yes

LIMIT SWITCH SPDT SIDE ROTARY ADJ; Limit Switch Actuator:Side Rotary; Contact Configuration:1NO / 1NC; Contact Current AC Max:10A; Contact Voltage AC Max:300V; Operating Force Max:10N; Product Range:-; Contact Current DC Max:10A; Contact Voltage DC Max:250V; Actuator Type:Side Rotary; Case Material:Plastic; Contact Current Rating:10A; External Depth:42.5mm; External Length / Height:62mm; External Width:30.5mm; IP / NEMA Rating:IP65; No. of Mechanical Operations:5000000; Operating Position:25; Operating Temperature Max:80°C; Operating Temperature Min:-10°C; Return Force Min:2N; Supply Voltage DC Max:250VDC; Supply Voltage Max:300VAC; Switch Operation:Off-On; Thermal Current Rating:10A
