CONNECTOR HEADER 34POS 2ROW 1.25MM;

CONNECTOR HEADER 34POS 2ROW 1.25MM;

CONNECTOR HEADER 50POS 2ROW 1.25MM;

Headers & Wire Housings

CONNECTOR RECEPTACLE 2POS 1ROW 2MM; Pitch Spacing:2mm; No. of Contacts:2Contacts; Gender:Receptacle; Product Range:Datamate L-Tek M80 Series; Contact Termination Type:Crimp; No. of Rows:1Rows; Contact Plating:Gold Plated Contacts; Contact Material:Beryllium Copper; SVHC:No SVHC (15-Jan-2018)

Headers & Wire Housings 10P VERTICAL PLUG GOLD

CONNECTOR ROHS COMPLIANT: YES

Headers & Wire Housings MHRZ 3.0/1.6MM 2X25P

Conn Shrouded HDR 10 POS 1.25mm Solder RA Through Hole T/R

M20 (2.54mm Pitch) SIL Horizontal Pin Header SMT Connector

Datamate Metal Backshell Female Cable Connector

Headers & Wire Housings 14mm JUMPER SOCKET W/HNDL BLUE

SOCKET VERTICAL DIL 10WAY; Pitch Spacing:2mm; No. of Contacts:10Contacts; Gender:Receptacle; Product Range:Datamate J-Tek M80-4 Series; Contact Termination Type:Through Hole; No. of Rows:2Rows; Contact Plating:Gold Plated Contacts; Contact Material:Beryllium Copper; SVHC:No SVHC (15-Jan-2018); Approval Category:BS 9525 F0033 CECC 75101-008 MIL C 55302; Colour:Black; Connector Mounting Orientation:PC Board; Contact Resistance:25mohm; Contact Termination:Through Hole Vertical; Current Rating:3A; De-mating Force:0.2N; Fixing Centres:15mm; Flammability Rating:UL94V-0; Height:5.2mm; Insulation Resistance:100Mohm; Length:20mm; Material:Glass Filled PPS; Mating Force:2.8N; No. of Mating Cycles:500; Operating Temperature Max:125°C; Operating Temperature Min:-55°C; Proof Voltage:360V; Row Pitch:2mm; Termination Method:Solder; Working Voltage:120V

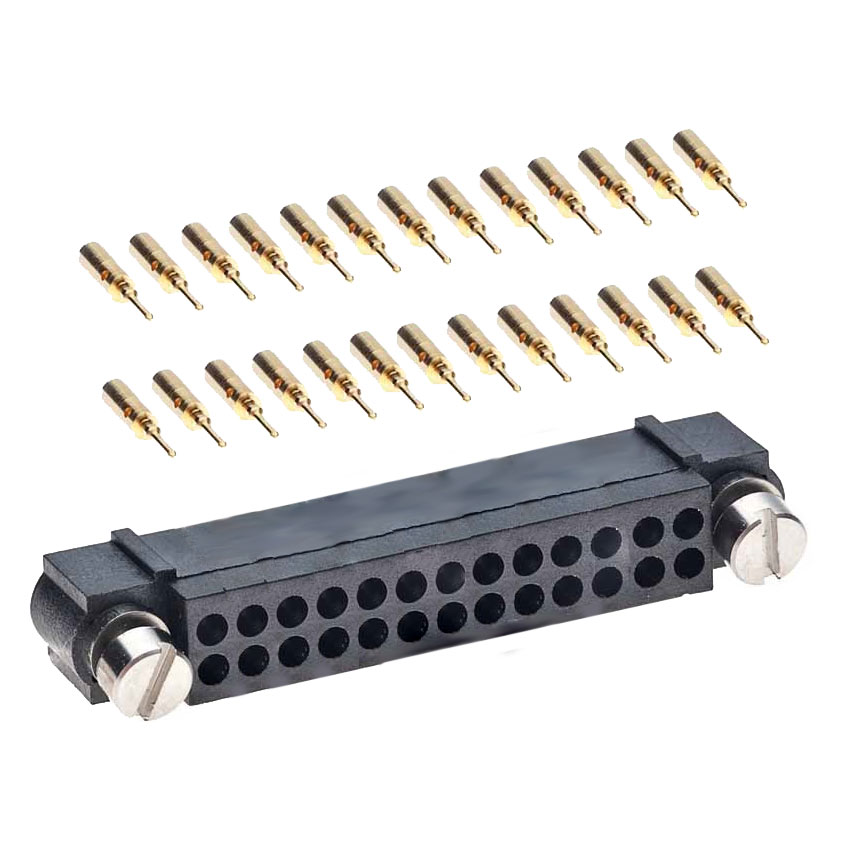

SOCKET CRIMP DIL L/BORE 42WAY; Pitch Spacing:2mm; No. of Contacts:42Contacts; Gender:Receptacle; Product Range:Datamate J-Tek M80 Series; Contact Termination Type:Crimp; No. of Rows:2Rows; Contact Plating:Gold Plated Contacts; Contact Material:Beryllium Copper; SVHC:No SVHC (15-Jan-2018); Approval Category:BS 9525 F0033 CECC 75101-008 MIL C 55302; Colour:Black; Connector Mounting Orientation:Cable; Contact Resistance:25mohm; Contact Termination:Crimp; Current Rating:3A; De-mating Force:0.2N; Fixing Centres:47mm; Flammability Rating:UL94V-0; Height:7.55mm; Insulation Resistance:100Mohm; Length:52mm; Material:Glass Filled PPS; Mating Force:2.8N; No. of Mating Cycles:500; Operating Temperature Max:125°C; Operating Temperature Min:-55°C; Proof Voltage:360V; Termination Method:Crimp; Working Voltage:250V

PLUG R/A DIL BD MNT 34WAY; Pitch Spacing:2mm; No. of Contacts:34Contacts; Gender:Plug; Product Range:-; Contact Termination Type:Through Hole; No. of Rows:2Rows; Contact Plating:Gold Plated Contacts; Contact Material:Beryllium Copper; SVHC:No SVHC (15-Jan-2018); Approval Category:BS 9525 F0033 CECC 75101-008 MIL C 55302; Colour:Black; Connector Mounting Orientation:PC Board; Contact Resistance:25mohm; Contact Termination:Through Hole Right Angle; Current Rating:3A; De-mating Force:0.2N; Fixing Centres:39mm; Flammability Rating:UL94V-0; Height:5.6mm; Insulation Resistance:100Mohm; Length:44mm; Material:Glass Filled PPS; Mating Force:2.8N; No. of Mating Cycles:500; Operating Temperature Max:125°C; Operating Temperature Min:-55°C; Proof Voltage:360V; Termination Method:Solder; Working Voltage:120V

CONNECTOR

M22-Variants

Conn Shrouded HDR 50 POS 1.25mm Solder RA Through Hole T/R

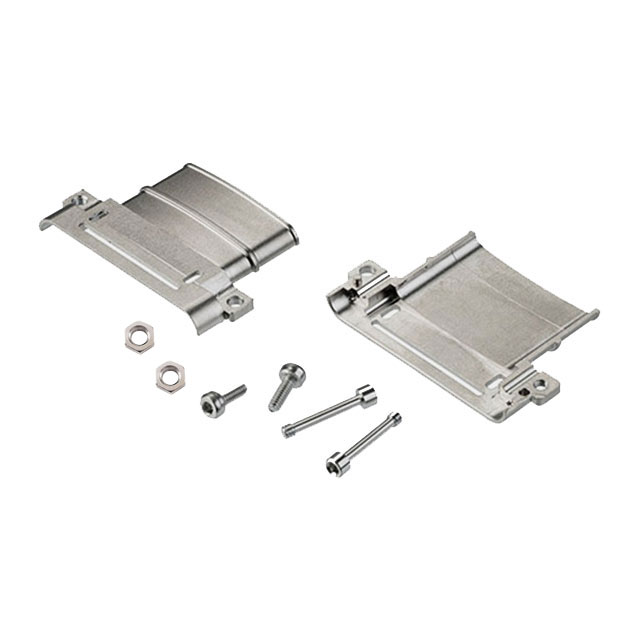

Backshell for Gecko-SL Series 34 POS Female Crimp Housing ST Aluminum Bulk

Cable Assembly PTFE 0.15m 24AWG 6POS Datamate to 6POS Datamate RCP-RCP Bulk
