36-75V Input, 12.45V /22A Output, Baseplate

POWER INTERFACE MOD

HIGH-POWER DIGITAL DC/DC CONVERTER

DC-DC POWER MODULE, VIN 40-60V AND VOUT

POL REGULATORS INPUT 4.5-14 V, OUTPUT UP TO 20 A / 66 W

Module DC-DC Single-OUT 5V 25A 125W 8-Pin 1/8-Brick Tray

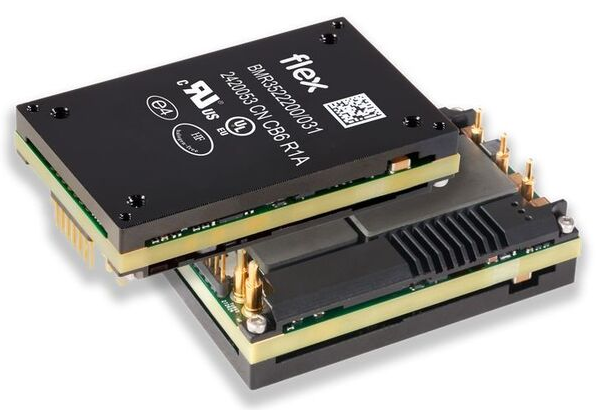

PMBUS, PARALLEL ACS, PEAK POWER The Flex Power Modules BMR352 non-isolated, regulated, digital intermediate bus converter (IBC) features a PMBus interface. It delivers a regulated 12 V up to 2,000 W of continuous power with efficiency levels reaching 97.9% at half load, all within an industry-standard quarter-brick footprint measuring 58.4 mm x 36.8 mm x 14.5 mm. Its flat baseplate design simplifies conduction cooling to a customer’s heatsink or cold plate. For short bursts of less than 0.5 s, the converter can supply peak power up to 3,000 W (250 A). With an input voltage range of 40 V to 60 V, the BMR352 is ideal for 48 V and 54 V systems commonly used in datacenters, high-performance computing, and cloud infrastructure. The fully regulated 12 V nominal output that is adjustable from 8 V to 13.2 V makes it well-suited for powering downstream voltage regulators, point-of-load (PoL) converters, integrated power stages such as the BMR510, and other circuitry requiring a tightly regulated supply such as PCIe and fans. Features: Input voltage range: 40 V to 60 V Regulated output voltage: 12.2 V Output power: 2,000 W thermal design power (TDP) 3,000 W peak Efficiency: 97.9% Parallel operation with active current share Event data recorder (black box) Supporting tools: Evaluation board Flex Power Designer tool Applications: Datacenters Cloud infrastructure High-performance computing

PWR PIM DC-DC 36-75VIN/10A-OUT 1/4 BRK

BMR4560105/001

Module DC-DC 1-OUT 39A 468W 16-Pin Quarter-Brick Tray

Module DC-DC 1-OUT 12V 35A 420W 16-Pin Quarter-Brick Tray
