RELAY DPST-NO 250VAC 25A; Load Current Inductive:-; Relay Mounting:DIN Rail; Operating Voltage:250VAC; Contact Configuration:DPST-NO; No. of Poles:2 Pole; Switching Power AC3:-; Switching Current AC1:-; Coil Voltage VAC Nom:230V; Coil Voltage VDC Nom:230V; Switching Power AC1:1kW; Load Current Resistive:25A; Switching Current AC3:10A; Product Range:22 Series; SVHC:No SVHC (12-Jan-2017); Approvals & Standards:CE; Coil Voltage:230V; Contact Current:25A; Contact Current Max:25A; Contact Material:Silver Nickel; Contact Voltage AC Nom:250V; Contact Voltage VAC:250V; External Depth:60.8mm; External Height:84mm; External Width:17.5mm; Nom Operating Power:2VA; Operating Temperature Max:50°C; Operating Temperature Min:-20°C; Relay Terminals:Screw; Relay Type:Modular; Termination Type:Screw

RELAY 1NO 1NC 250VAC 25A; Load Current Inductive:-; Relay Mounting:DIN Rail; Operating Voltage:250VAC; Contact Configuration:DPST-NO DPST-NC; No. of Poles:2 Pole; Switching Power AC3:-; Switching Current AC1:-; Coil Voltage VAC Nom:48V; Coil Voltage VDC Nom:48V; Switching Power AC1:1kW; Load Current Resistive:25A; Switching Current AC3:10A; Product Range:22 Series; SVHC:No SVHC (12-Jan-2017); Approvals & Standards:CE; Coil Voltage:48V; Contact Current:25A; Contact Current Max:25A; Contact Material:Silver Nickel; Contact Voltage AC Nom:250V; Contact Voltage VAC:250V; External Depth:60.8mm; External Height:84mm; External Width:17.5mm; Nom Operating Power:2VA; Operating Temperature Max:50°C; Operating Temperature Min:-20°C; Relay Terminals:Screw; Relay Type:Modular; Termination Type:Screw

RELAY DPST-NC 250VAC 25A; Load Current Inductive:-; Relay Mounting:DIN Rail; Operating Voltage:250VAC; Contact Configuration:DPST-NC; No. of Poles:2 Pole; Switching Power AC3:-; Switching Current AC1:-; Coil Voltage VAC Nom:230V; Coil Voltage VDC Nom:230V; Switching Power AC1:1kW; Load Current Resistive:25A; Switching Current AC3:10A; Product Range:22 Series; SVHC:No SVHC (12-Jan-2017); Approvals & Standards:CE; Coil Voltage:230V; Contact Current:25A; Contact Current Max:25A; Contact Material:Silver Nickel; Contact Voltage AC Nom:250V; Contact Voltage VAC:250V; External Depth:60.8mm; External Height:84mm; External Width:17.5mm; Nom Operating Power:2VA; Operating Temperature Max:50°C; Operating Temperature Min:-20°C; Relay Terminals:Screw; Relay Type:Modular; Termination Type:Screw

RELAY 4PST-NO 250VAC 25A; Load Current Inductive:-; Relay Mounting:DIN Rail; Operating Voltage:250VAC; Contact Configuration:4PST-NO; No. of Poles:4 Pole; Switching Power AC3:4kW; Switching Current AC1:-; Coil Voltage VAC Nom:24V; Coil Voltage VDC Nom:24V; Switching Power AC1:-; Load Current Resistive:25A; Switching Current AC3:10A; Product Range:22 Series; SVHC:No SVHC (12-Jan-2017); Approvals & Standards:CE; Coil Voltage:24V; Contact Current:25A; Contact Current Max:25A; Contact Material:Silver Nickel; Contact Voltage AC Nom:250V; Contact Voltage VAC:250V; External Depth:60.8mm; External Height:84mm; External Width:35mm; Nom Operating Power:2VA; Operating Temperature Max:50°C; Operating Temperature Min:-20°C; Relay Terminals:Screw; Relay Type:Modular; Termination Type:Screw

RELAY 4PST-NO 250VAC 25A; Load Current Inductive:-; Relay Mounting:DIN Rail; Operating Voltage:250VAC; Contact Configuration:4PST-NO; No. of Poles:4 Pole; Switching Power AC3:4kW; Switching Current AC1:-; Coil Voltage VAC Nom:120V; Coil Voltage VDC Nom:120V; Switching Power AC1:-; Load Current Resistive:25A; Switching Current AC3:10A; Product Range:22 Series; SVHC:No SVHC (12-Jan-2017); Approvals & Standards:CE; Coil Voltage:120V; Contact Current:25A; Contact Current Max:25A; Contact Material:Silver Nickel; Contact Voltage AC Nom:250V; Contact Voltage VAC:250V; External Depth:60.8mm; External Height:84mm; External Width:35mm; Nom Operating Power:2VA; Operating Temperature Max:50°C; Operating Temperature Min:-20°C; Relay Terminals:Screw; Relay Type:Modular; Termination Type:Screw

RELAY 2NO 2NC 250VAC 25A; Load Current Inductive:-; Relay Mounting:DIN Rail; Operating Voltage:250VAC; Contact Configuration:DPST-NO DPDT-NC; No. of Poles:4 Pole; Switching Power AC3:4kW; Switching Current AC1:-; Coil Voltage VAC Nom:24V; Coil Voltage VDC Nom:24V; Switching Power AC1:-; Load Current Resistive:25A; Switching Current AC3:10A; Product Range:22 Series; SVHC:No SVHC (12-Jan-2017); Approvals & Standards:CE; Coil Voltage:24V; Contact Current:25A; Contact Current Max:25A; Contact Material:Silver Nickel; Contact Voltage AC Nom:250V; Contact Voltage VAC:250V; External Depth:60.8mm; External Height:84mm; External Width:35mm; Nom Operating Power:2VA; Operating Temperature Max:50°C; Operating Temperature Min:-20°C; Relay Terminals:Screw; Relay Type:Modular; Termination Type:Screw

GENERAL PURPOSE RELAY DPDT 10A 125V DC COIL AGNI CONTACT LOCKABLE TEST BUTTON MECH. INDICATOR LED & DIODE

RELAYS

RJ45 CONN, R/A JACK, 8P8C, 1X4GANG, TH;

Solid State SPST-NO (1 Form A) Module

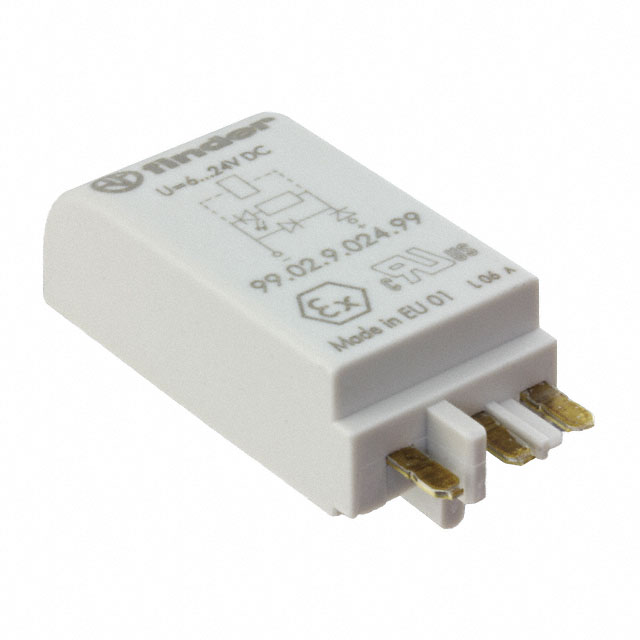

Module, LED and/or Protection 99 Series

Power Relay, Spdt, 16A, 250V, Socket Rohs Compliant: Yes |Finder 40.61.7.012.4000

Power Relay, Spdt, 16A, 250V, Socket Rohs Compliant: Yes |Finder 40.61.9.006.4000

Power Relay, Spdt, 16A, 250V, Socket Rohs Compliant: Yes |Finder 40.61.9.048.4000

Power Relay, Dpdt, 16A, 250V, Flange Rohs Compliant: Yes |Finder 62.82.8.230.4000

Power Relay, Dpdt, 16A, 250V, Flange Rohs Compliant: Yes |Finder 62.82.9.012.4000

Power Relay, Dpdt, 16A, 250V, Flange Rohs Compliant: Yes |Finder 62.82.9.024.4000

ELECTRODE SUSPENDED 15M; Product Range:-; SVHC:No SVHC (12-Jan-2017); Level Sensor Type:Liquid; Pressure Max:0psi

RELAY SPDT 250VAC 10A; Contact Configuration:SPDT; Coil Voltage:12VDC; Contact Current:10A; Product Range:49 Series; Relay Mounting:DIN Rail; Coil Type:DC Sensitive; Contact Voltage VAC:250VAC; Relay Terminals:Screw; Contact Voltage VDC:30V; Contact Material:Silver Nickel; Coil Resistance:-; Approvals & Standards:-; SVHC:No SVHC (12-Jan-2017); Coil Current:41mA; Coil Voltage Max:400VAC; Coil Voltage Min:250VAC; Coil Voltage VDC Nom:12V; Contact Current AC Max:10A; Contact Current Max:20A; Contact Voltage AC Max:250V; Contact Voltage AC Nom:250V; Current Max:20A; Current Rating:10A; External Depth:75mm; External Height:81.9mm; External Length / Height:81.9mm; External Width:15.5mm; IP / NEMA Rating:IP20; Input Voltage:12VDC; Input Voltage Max:12VDC; No. of Electrical Operations:200000; Nom Operating Power:500mW; Operating Current:10A; Operating Temperature Max:70°C; Operating Temperature Min:-40°C; Relay Type:Interface; Switch Power Max:300mW; Switching Power Max:300mW

RELAY SPDT 250VAC 16A; Contact Configuration:SPDT; Coil Voltage:24VDC; Contact Current:16A; Product Range:49 Series; Relay Mounting:DIN Rail; Coil Type:DC Sensitive; Contact Voltage VAC:250VAC; Relay Terminals:Screw; Contact Voltage VDC:30V; Contact Material:Silver Cadmium Oxide; Coil Resistance:-; Approvals & Standards:-; SVHC:No SVHC (12-Jan-2017); Coil Current:22.2mA; Coil Voltage Max:400VAC; Coil Voltage Min:250VAC; Coil Voltage VDC Nom:24V; Contact Current AC Max:16A; Contact Current Max:30A; Contact Voltage AC Max:250V; Contact Voltage AC Nom:250V; Current Max:30A; Current Rating:16A; External Depth:75mm; External Length / Height:81.9mm; External Width:15.5mm; IP / NEMA Rating:IP20; Input Voltage:24VDC; Input Voltage Max:24VDC; No. of Electrical Operations:100000; Nom Operating Power:500mW; Operating Current:16A; Operating Temperature Max:70°C; Operating Temperature Min:-40°C; Relay Type:Interface; Switch Power Max:500mW; Switching Power Max:500mW
