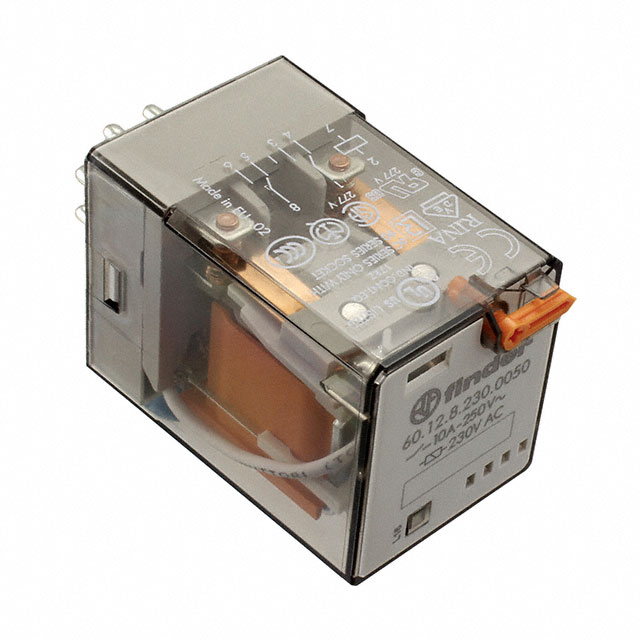

Plug-In Power Relay DPDT 15A

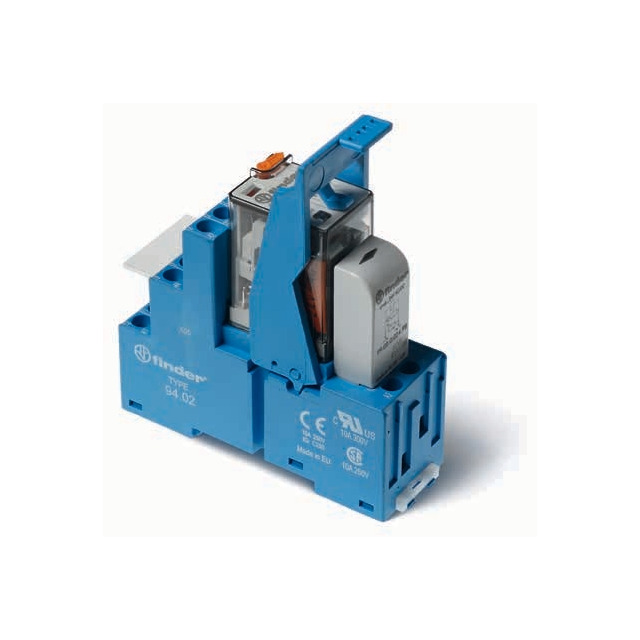

RELAY SOCKET SCREW 16A 250V DIN RAIL; Socket Mounting:DIN Rail Panel; Socket Terminals:Screw; No. of Pins:11Pins; Current Rating:16A; Voltage Rating:250V; Product Range:-; Accessory Type:Relay Socket

RELAY ACCESSORIES; Accessory Type:Electrode holder with two pole connector; For Use With:-; Product Range:72 Series

RELAY ACCESSORIES; Product Range:-; Relay Clip Type:Retaining and Release; For Use With:-; Accessory Type:Plastic Retaining and Release Clip

SSR I/F MASTERBASIC 2A 12VDC; Contact Configuration:SPST-NO; Load Current:2A; Operating Voltage Max:24VDC; Relay Mounting:DIN Rail; Relay Terminals:Screw; Switching Mode:-; Operating Voltage Min:1.5VDC; Control Voltage Min:9.6VDC; Control Voltage Max:13.2VDC; Product Range:39 Series; SVHC:No SVHC (12-Jan-2017); Control Voltage DC Max:13.2VDC; Control Voltage DC Min:9.6VDC; Control Voltage Range:9.6V DC to 13.2V DC; Control Voltage Type:DC; Input Current:20.7mA; Nom Voltage:12V; Operating Voltage Range:1.5V DC to 24V DC

SSR I/F MASTEROUTPUT 2A 12VDC; Contact Configuration:SPST-NO; Load Current:2A; Operating Voltage Max:24VDC; Relay Mounting:DIN Rail; Relay Terminals:Screw; Switching Mode:-; Operating Voltage Min:1.5VDC; Control Voltage Min:9.6VDC; Control Voltage Max:13.2VDC; Product Range:39 Series; SVHC:No SVHC (12-Jan-2017); Control Voltage DC Max:13.2VDC; Control Voltage DC Min:9.6VDC; Control Voltage Range:9.6V DC to 13.2V DC; Control Voltage Type:DC; Input Current:20.7mA; Nom Voltage:12V; Operating Voltage Range:1.5V DC to 24V DC

RELAY SPST-NO 250VAC 6A; Contact Configuration:SPST-NO; Coil Voltage:6V; Contact Current:6A; Product Range:39 Series; Relay Mounting:DIN Rail; Coil Type:AC / DC; Contact Voltage VAC:250VAC; Relay Terminals:Screw; Contact Voltage VDC:30V; Contact Material:Silver Nickel; Coil Resistance:-; Approvals & Standards:-; SVHC:No SVHC (12-Jan-2017); Coil Voltage VAC Nom:6V; Coil Voltage VDC Nom:6V; Contact Current Max:6A; Contact Voltage AC Nom:250V; Input Current:35mA; Nom Voltage:6V; Relay Type:Interface

SSR I/F MASTERPLUS 24VAC/DC; Contact Configuration:SPST-NO; Load Current:2A; Operating Voltage Max:24VDC; Relay Mounting:DIN Rail; Relay Terminals:Screw; Switching Mode:-; Operating Voltage Min:1.5VDC; Control Voltage Min:19.2VDC; Control Voltage Max:26.4VDC; Product Range:39 Series; SVHC:No SVHC (12-Jan-2017); Control Voltage DC Max:26.4VDC; Control Voltage DC Min:19.2VDC; Control Voltage Range:19.2V DC to 26.4V DC; Control Voltage Type:AC DC; Input Current:10.5mA; Nom Voltage:24V; Operating Voltage Range:1.5V DC to 24V DC

RELAY SPDT 250VAC 6A; Contact Configuration:SPDT; Coil Voltage:60V; Contact Current:6A; Product Range:39 Series; Relay Mounting:DIN Rail; Coil Type:AC / DC; Contact Voltage VAC:250VAC; Relay Terminals:Screw; Contact Voltage VDC:30V; Contact Material:Silver Nickel; Coil Resistance:-; Approvals & Standards:-; SVHC:No SVHC (12-Jan-2017); Coil Voltage VAC Nom:60V; Coil Voltage VDC Nom:60V; Contact Current Max:6A; Contact Voltage AC Nom:250V; Input Current:5.7mA; Nom Voltage:60V; Relay Type:Interface

RELAY SPDT 250VAC 6A; Contact Configuration:SPDT; Coil Voltage:230VAC; Contact Current:6A; Product Range:39 Series; Relay Mounting:DIN Rail; Coil Type:AC; Contact Voltage VAC:250VAC; Relay Terminals:Screw; Contact Voltage VDC:30V; Contact Material:Silver Nickel; Coil Resistance:-; Approvals & Standards:-; SVHC:No SVHC (12-Jan-2017); Coil Voltage VAC Nom:230V; Contact Current Max:6A; Contact Voltage AC Nom:250V; Input Current:4.3mA; Nom Voltage:230V; Relay Type:Interface

RELAY SPDT 250VAC 6A; Contact Configuration:SPDT; Coil Voltage:6V; Contact Current:6A; Product Range:39 Series; Relay Mounting:DIN Rail; Coil Type:AC / DC; Contact Voltage VAC:250VAC; Relay Terminals:Screw; Contact Voltage VDC:30V; Contact Material:Silver Nickel; Coil Resistance:-; Approvals & Standards:-; SVHC:No SVHC (12-Jan-2017); Coil Voltage VAC Nom:6V; Coil Voltage VDC Nom:6V; Contact Current Max:6A; Contact Voltage AC Nom:250V; Input Current:35mA; Nom Voltage:6V; Relay Type:Interface

RELAY SPDT 250VAC 6A; Contact Configuration:SPDT; Coil Voltage:12V; Contact Current:6A; Product Range:39 Series; Relay Mounting:DIN Rail; Coil Type:AC / DC; Contact Voltage VAC:250VAC; Relay Terminals:Screw; Contact Voltage VDC:30V; Contact Material:Silver Nickel; Coil Resistance:-; Approvals & Standards:-; SVHC:No SVHC (12-Jan-2017); Coil Voltage VAC Nom:12V; Coil Voltage VDC Nom:12V; Contact Current Max:6A; Contact Voltage AC Nom:250V; Input Current:15mA; Nom Voltage:12V; Relay Type:Interface

RELAY SPDT 250VAC 6A; Contact Configuration:SPDT; Coil Voltage:230VAC; Contact Current:6A; Product Range:39 Series; Relay Mounting:DIN Rail; Coil Type:AC; Contact Voltage VAC:250VAC; Relay Terminals:Screw; Contact Voltage VDC:30V; Contact Material:Silver Nickel; Coil Resistance:-; Approvals & Standards:-; SVHC:No SVHC (12-Jan-2017); Coil Voltage VAC Nom:230V; Contact Current Max:6A; Contact Voltage AC Nom:250V; Input Current:4.3mA; Nom Voltage:230V; Relay Type:Interface

ADAPTOR 8WAY PLC O/P TO RIBBON CBL; Accessory Type:Adaptor 8 Way; Product Range:39 Series; SVHC:No SVHC (12-Jan-2017)

RELAY LIGHT DEP 2NO 16A; Output Current Per Channel:-; Power Rating:2VA; Product Range:-; SVHC:No SVHC (12-Jan-2017); Contact Configuration:2NO; Contact Rating:230V ac; External Depth:40mm; External Length / Height:110.6mm; External Width:28.6mm; IP / NEMA Rating:IP54; No. of Outputs:2Outputs; Operating Temperature Max:70°C; Operating Temperature Min:-30°C; Output Type:Relay

RELAY LIGHT DEP 1NO 16A; Output Current Per Channel:-; Power Rating:2.5VA; Product Range:-; SVHC:No SVHC (12-Jan-2017); Contact Configuration:1NO; Contact Rating:230V ac; External Length / Height:48.1mm; External Width:80.5mm; IP / NEMA Rating:IP54; No. of Outputs:1Outputs; Operating Temperature Max:70°C; Operating Temperature Min:-30°C; Output Type:Relay; Termination Type:Wire Leaded

RELAY LIGHT DEP 1NO 16A AC/DC; Output Current Per Channel:-; Power Rating:-; Product Range:-; SVHC:No SVHC (12-Jan-2017); Contact Configuration:1NO; Contact Rating:250V ac; External Depth:60.8mm; External Length / Height:88.8mm; External Width:17.5mm; No. of Outputs:1Outputs; Operating Temperature Max:50°C; Operating Temperature Min:-20°C; Output Type:Relay

RELAY POWER MODULE 1CO 10A; IP / NEMA Rating:IP20; Supply Voltage:12VDC; No. of Digital Outputs:-; Product Range:-; SVHC:No SVHC (12-Jan-2017); Contact Configuration:1CO; Contact Rating:250V ac; External Depth:60.8mm; External Length / Height:88.8mm; External Width:17.5mm; No. of Outputs:1Outputs; Operating Temperature Max:50°C; Operating Temperature Min:-20°C; Output Type:Relay

RELAY DPST-NO 250VAC 25A; Load Current Inductive:-; Relay Mounting:DIN Rail; Operating Voltage:250VAC; Contact Configuration:DPST-NO; No. of Poles:2 Pole; Switching Power AC3:-; Switching Current AC1:-; Coil Voltage VAC Nom:12V; Coil Voltage VDC Nom:12V; Switching Power AC1:1kW; Load Current Resistive:25A; Switching Current AC3:10A; Product Range:22 Series; SVHC:No SVHC (12-Jan-2017); Approvals & Standards:CE; Coil Voltage:12V; Contact Current:25A; Contact Current Max:25A; Contact Material:Silver Nickel; Contact Voltage AC Nom:250V; Contact Voltage VAC:250V; External Depth:60.8mm; External Height:84mm; External Width:17.5mm; Nom Operating Power:2VA; Operating Temperature Max:50°C; Operating Temperature Min:-20°C; Relay Terminals:Screw; Relay Type:Modular; Termination Type:Screw

RELAY DPST-NO 250VAC 25A; Load Current Inductive:-; Relay Mounting:DIN Rail; Operating Voltage:250VAC; Contact Configuration:DPST-NO; No. of Poles:2 Pole; Switching Power AC3:-; Switching Current AC1:-; Coil Voltage VAC Nom:48V; Coil Voltage VDC Nom:48V; Switching Power AC1:1kW; Load Current Resistive:25A; Switching Current AC3:10A; Product Range:22 Series; SVHC:No SVHC (12-Jan-2017); Approvals & Standards:CE; Coil Voltage:48V; Contact Current:25A; Contact Current Max:25A; Contact Material:Silver Nickel; Contact Voltage AC Nom:250V; Contact Voltage VAC:250V; External Depth:60.8mm; External Height:84mm; External Width:17.5mm; Nom Operating Power:2VA; Operating Temperature Max:50°C; Operating Temperature Min:-20°C; Relay Terminals:Screw; Relay Type:Modular; Termination Type:Screw
