FERRITE CORE EP 3E6; Core Type:-; Core Size:EP7; Core Material Grade:3E6; For Use With:-; Effective Magnetic Path Length:15.5mm; Ae Effective Cross Section Area:10.7mm²; Inductance Factor Al:5.8µH; Product Range:EP Series; SVHC:No SVHC (07-Jul-2017); Accessory Type:Ferrite Core; External Depth:6.5mm; External Length / Height:6.5mm; External Width:7.5mm; Material Grade:3E6

FERRITE CORE ETD 3F3; Core Type:ETD; Core Size:ETD59; Core Material Grade:3F3; For Use With:-; Effective Magnetic Path Length:139mm; Ae Effective Cross Section Area:368mm²; Inductance Factor Al:5.6µH; Product Range:-; SVHC:No SVHC (07-Jul-2017); Accessory Type:Ferrite Core; Material Grade:3F3

FERRITE BEAD 0.1OHM 300MA 0603; Ferrite Case Style:0603 [1608 Metric]; Impedance @ 100MHz:60ohm; DC Current Rating:300mA; Product Range:MLS Series; DC Resistance Max:0.1ohm; Impedance Tolerance:± 25%; Automotive Qualification Standard:-; SVHC:No SVHC (07-Jul-2017); Core Material:Ferrite; External Depth:1.6mm; External Length / Height:0.74mm; External Width:0.8mm; Ferrite Mounting:SMD; Operating Temperature Max:125°C; Operating Temperature Min:-55°C; Packaging:Cut Tape; Reel Quantity:4000; Resistance:0.4ohm; Tape Width:8mm; Tolerance +:25%; Tolerance -:25%

FERRITE BEAD 0.5OHM 200MA 0805; Ferrite Case Style:0805 [2012 Metric]; Impedance @ 100MHz:1000ohm; DC Current Rating:200mA; Product Range:MLS Series; DC Resistance Max:0.5ohm; Impedance Tolerance:± 25%; Automotive Qualification Standard:-; SVHC:No SVHC (07-Jul-2017); Core Material:Ferrite; External Depth:2mm; External Length / Height:0.74mm; External Width:0.8mm; Ferrite Mounting:SMD; Operating Temperature Max:125°C; Operating Temperature Min:-55°C; Packaging:Cut Tape; Reel Quantity:4000; Resistance:0.8ohm; Tape Width:8mm; Tolerance +:25%; Tolerance -:25%

FERRITE BEAD 0.1OHM 600MA 1206; Ferrite Case Style:1206 [3216 Metric]; Impedance @ 100MHz:30ohm; DC Current Rating:600mA; Product Range:MLS Series; DC Resistance Max:0.1ohm; Impedance Tolerance:± 25%; Automotive Qualification Standard:-; SVHC:No SVHC (07-Jul-2017); Core Material:Ferrite; External Depth:3.2mm; External Length / Height:1.1mm; External Width:1.6mm; Ferrite Mounting:SMD; Operating Temperature Max:125°C; Operating Temperature Min:-55°C; Packaging:Cut Tape; Reel Quantity:3000; Resistance:0.1ohm; Tape Width:8mm; Tolerance +:25%; Tolerance -:25%

FERRITE BEAD 0.3OHM 400MA 1206; Ferrite Case Style:1206 [3216 Metric]; Impedance @ 100MHz:600ohm; DC Current Rating:400mA; Product Range:MLS Series; DC Resistance Max:0.3ohm; Impedance Tolerance:± 25%; Automotive Qualification Standard:-; SVHC:No SVHC (07-Jul-2017); External Depth:3.2mm; External Length / Height:1.1mm; External Width:1.6mm; Ferrite Mounting:SMD; Operating Temperature Max:125°C; Operating Temperature Min:-55°C; Packaging:Cut Tape; Resistance:0.4ohm

FERRITE BEAD 0.15OHM 500MA 1206; Ferrite Case Style:1206 [3216 Metric]; Impedance @ 100MHz:90ohm; DC Current Rating:500mA; Product Range:MLS Series; DC Resistance Max:0.15ohm; Impedance Tolerance:± 25%; Automotive Qualification Standard:-; SVHC:No SVHC (07-Jul-2017); Core Material:Ferrite; External Depth:3.2mm; External Length / Height:1.1mm; External Width:1.6mm; Ferrite Mounting:SMD; Operating Temperature Max:125°C; Operating Temperature Min:-55°C; Packaging:Cut Tape; Reel Quantity:3000; Resistance:0.2ohm; Tape Width:8mm; Tolerance +:25%; Tolerance -:25%

Transformer Clip RM8 ;RoHS Compliant: Yes

Ferrite Core Multihole Core 10mm 6mm EMI Suppression

Transformer Cores EFD EFD10 3F3 23.7 mm 7.2 mm ;RoHS Compliant: Yes

Outer Diameter:9.5mm; Length:3.4mm; Inner Diameter:5.4mm; Frequency Min:-; Frequency Max:-; Product Range:- ;RoHS Compliant: Yes

IN STOCK SHIP TODAY

COIL FORMER RM7 2 SECTION 8PIN; For Use With:RM7 Core; Product Range:-; Accessory Type:Coil Former

Transformer Clip RM12 ;RoHS Compliant: Yes

Bead (4mm x 3mm) General Application

Transformer Cores Toroid 3C90 30.1 mm 12.2 mm ;RoHS Compliant: Yes

IN STOCK SHIP TODAY

FERRITE CORE TOROID 3C11; Core Type:Toroid; Core Size:TX58/41/18; Core Material Grade:3C11; For Use With:-; Effective Magnetic Path Length:152mm; Ae Effective Cross Section Area:152mm²; Inductance Factor Al:5.4µH; Product Range:-; SVHC:No SVHC (07-Jul-2017); Accessory Type:Ferrite Core; Material Grade:3C11

FERRITE CORE TOROID 3E27; Core Type:Toroid; Core Size:-; Core Material Grade:3E27; For Use With:-; Effective Magnetic Path Length:84.9mm; Ae Effective Cross Section Area:112mm²; Inductance Factor Al:8.72µH; Product Range:-; SVHC:No SVHC (07-Jul-2017); Accessory Type:Ferrite Core; Material Grade:3E27

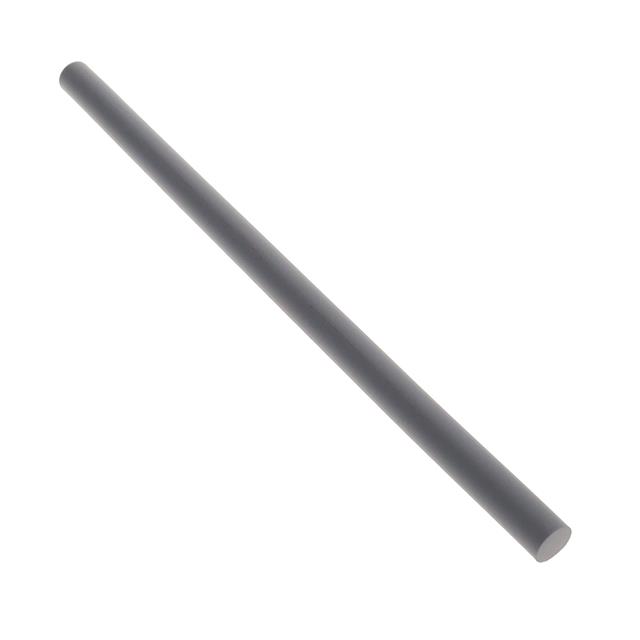

FERRITE ROD 14X3MM; Outer Diameter:3mm; Length:14mm; Inner Diameter:-; Frequency Min:-; Frequency Max:-; Impedance @ 100MHz:-; Product Range:-; SVHC:No SVHC (07-Jul-2017); External Diameter:3mm; External Length / Height:14mm; Height:14mm; Material Grade:4B1
