Ferrite Core Type Length Width Diameter Height

Ferrite Core E Core 13330nH 3C95 400kHz

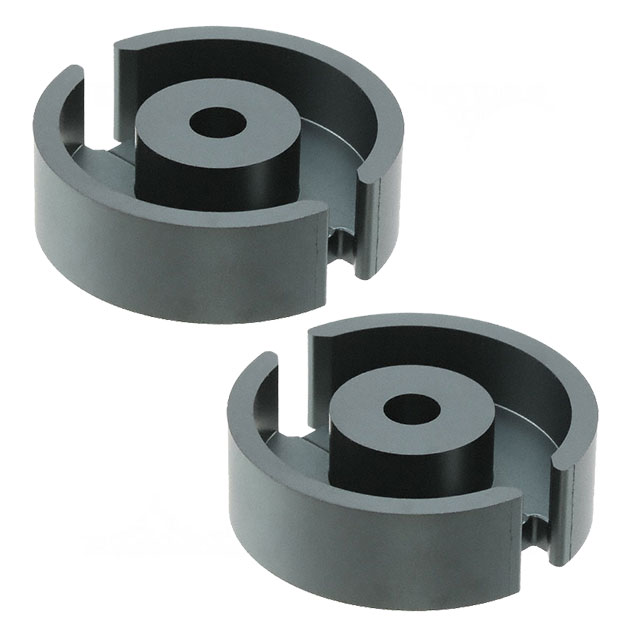

P Core (36.2mm x 21.7mm) General Purpose Transformers

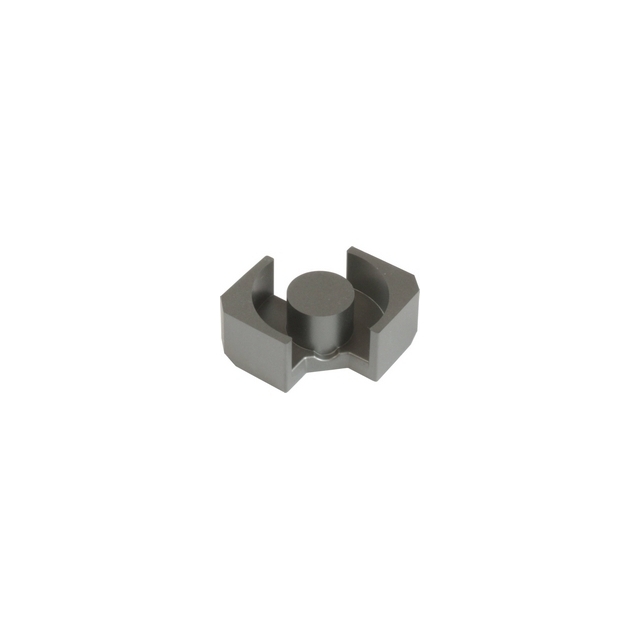

Ferrite Core RM Core 400nH 3C94

FERRITE CORE EFD 3F3; Core Type:-; Core Size:EFD12; Core Material Grade:3F3; For Use With:-; Effective Magnetic Path Length:28.5mm; Ae Effective Cross Section Area:11.4mm²; Inductance Factor Al:700nH; Product Range:-; SVHC:No SVHC (07-Jul-2017); Accessory Type:Ferrite Core; External Depth:12.4mm; External Length / Height:3.5mm; External Width:12.5mm; Material Grade:3F3; Termination Type:Surface Mount Device

BOBBIN RM6S 1 SECTION 6PIN; For Use With:RM6; Product Range:-; SVHC:No SVHC (07-Jul-2017); Accessory Type:Coil Former; External Length / Height:13.8mm

EFD Core (12.5mm x 6.2mm x 3.7mm) General Application

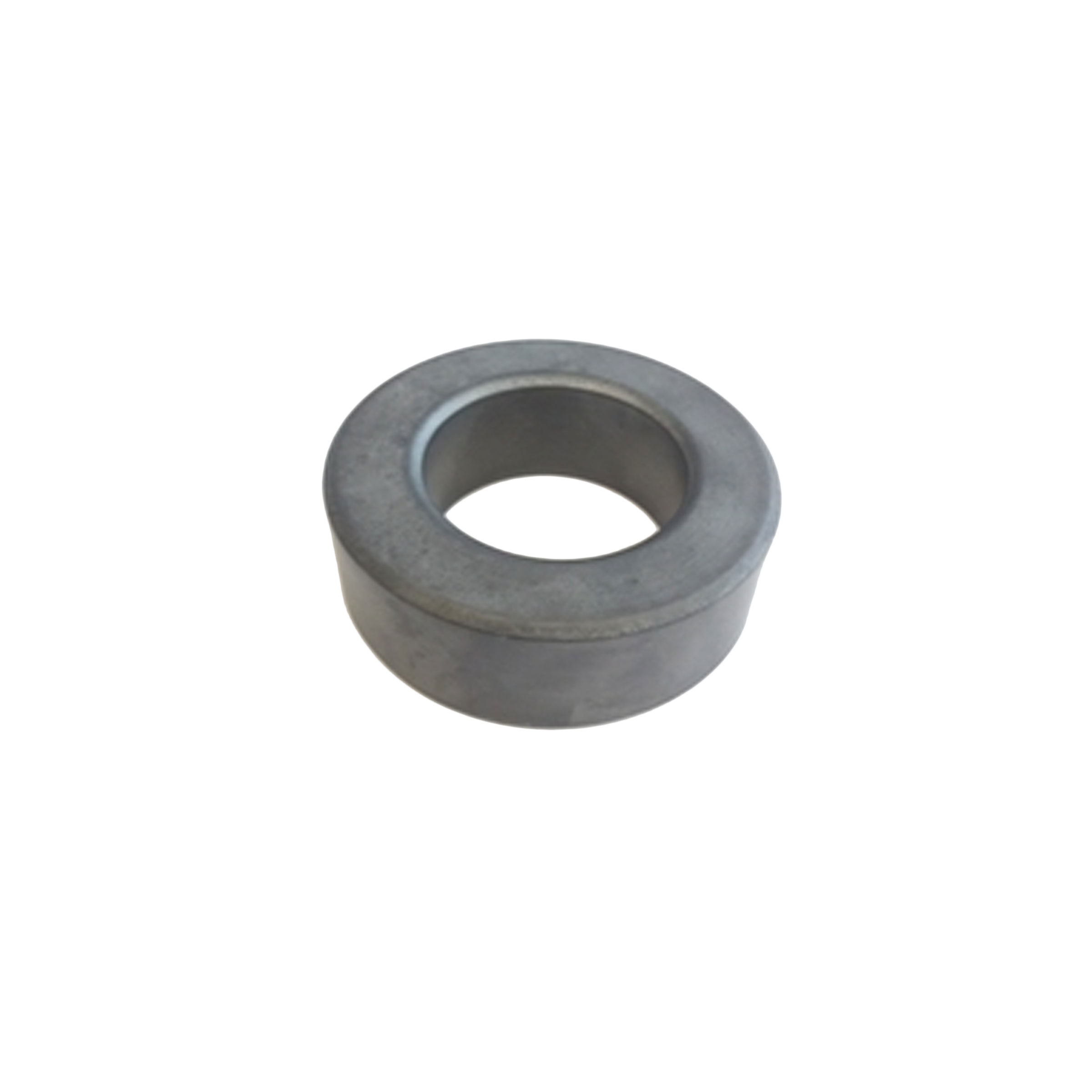

Supplier Device Package P 30 x 19

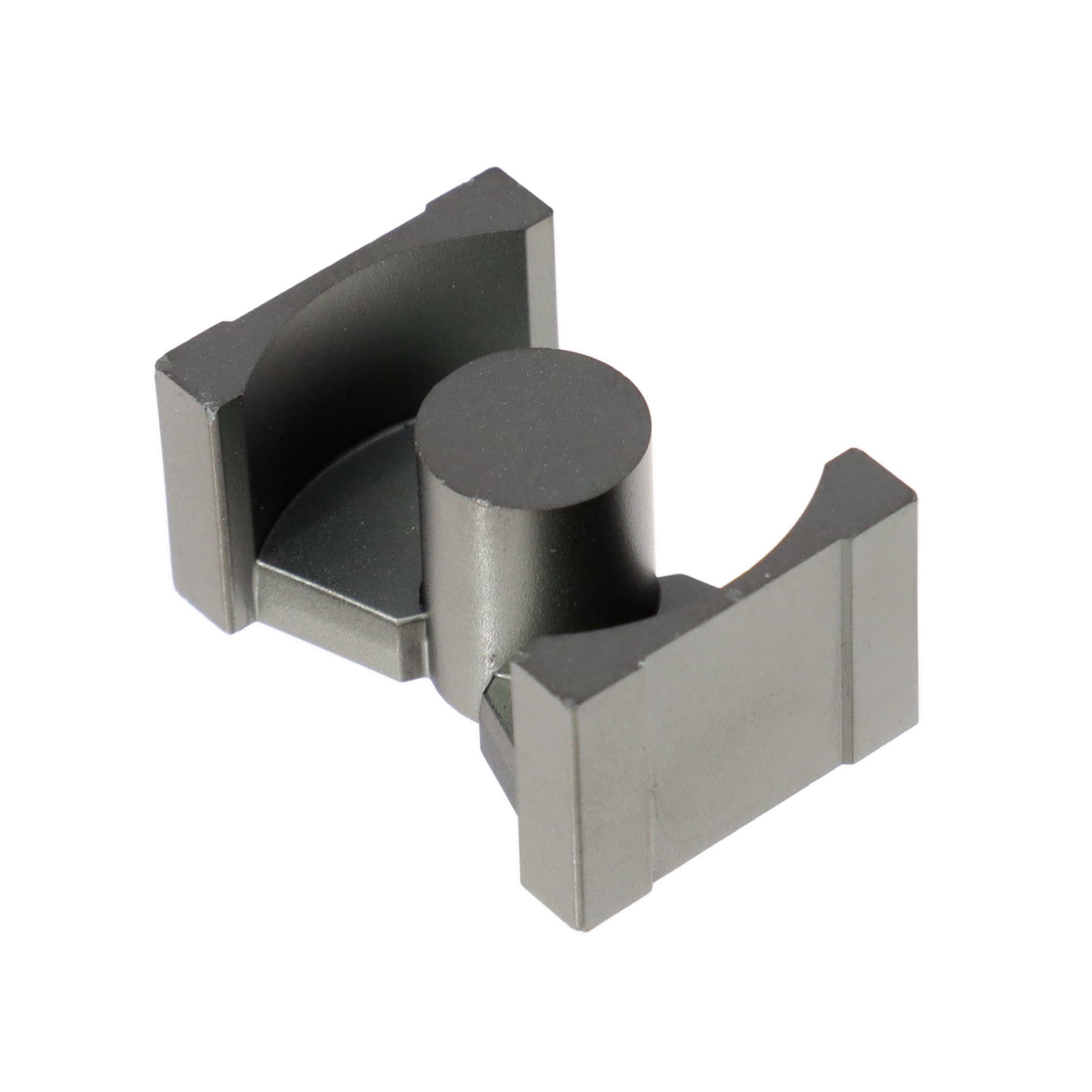

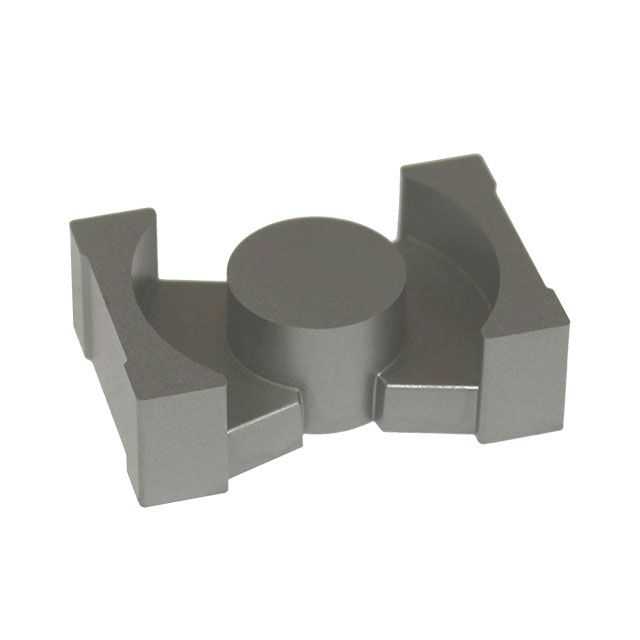

Uncoated 3C96 Ferrite Core PQ Type 1.634" (41.50mm) Length 1.102" (28.00mm) Width Diameter 1.567" (39.80mm) Height

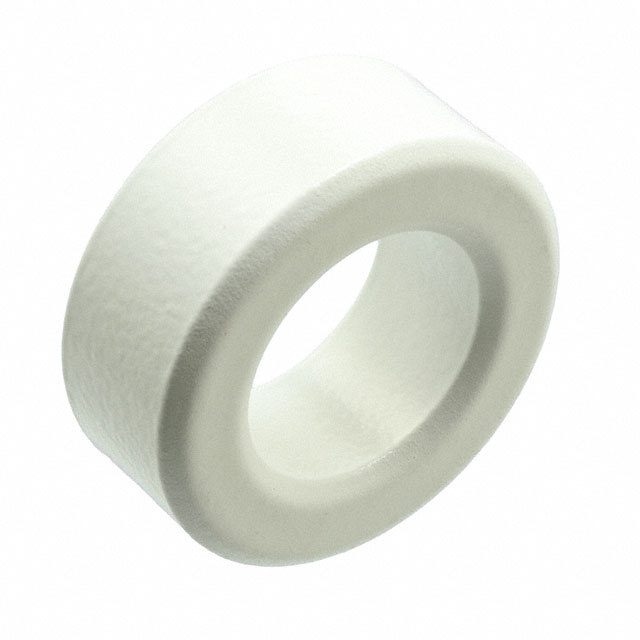

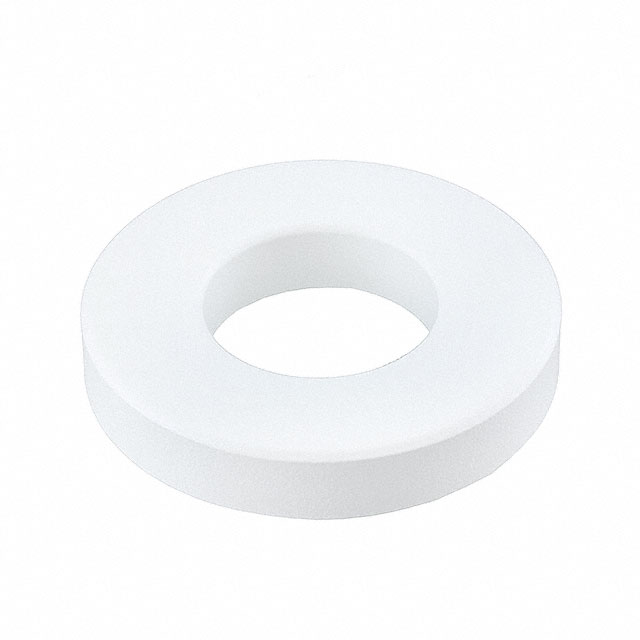

Epoxy 3C90 Ferrite Core Toroid Type Length Width 1.640" (41.65mm) Diameter 0.673" (17.10mm) Height

Uncoated 3C97 Ferrite Core PQ Type 1.634" (41.50mm) Length 1.102" (28.00mm) Width Diameter 1.567" (39.80mm) Height

Uncoated 3C96 Ferrite Core EFD Type 30.00mm Length 9.10mm Width Diameter 15.00mm Height

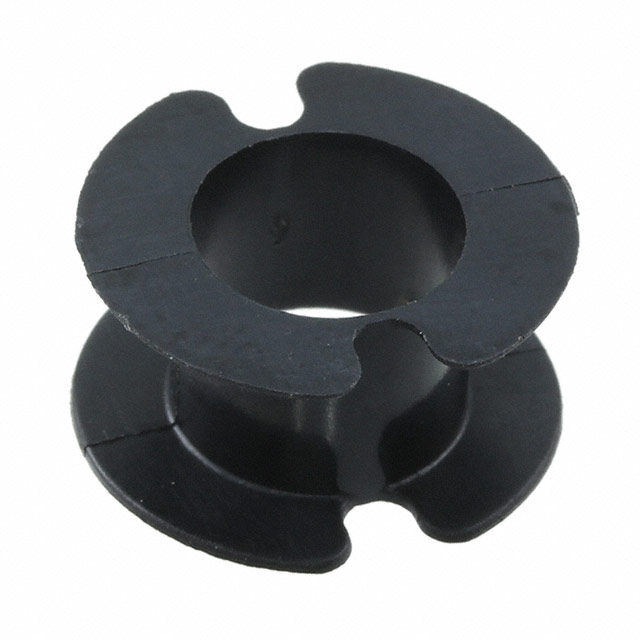

Supplier Device Package P 22 x 13

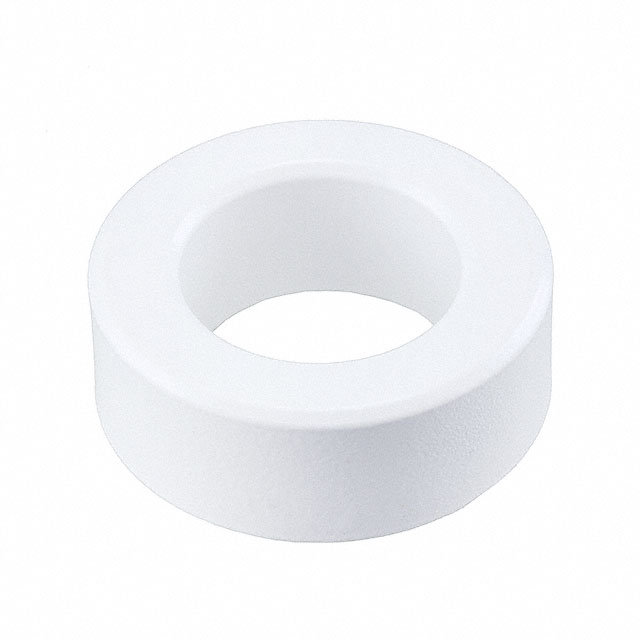

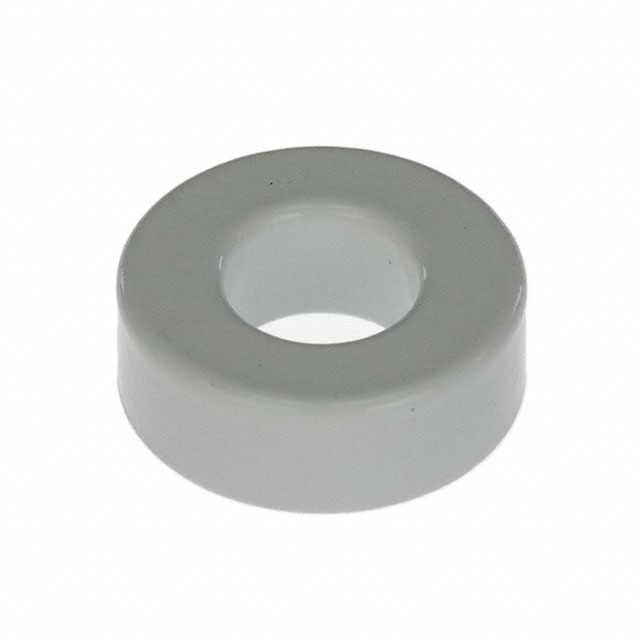

Epoxy 3C90 Ferrite Core Toroid Type Length Width 1.463" (37.15mm) Diameter 0.630" (16.00mm) Height

Uncoated 3C96 Ferrite Core EFD Type 1.181" (30.00mm) Length 0.358" (9.10mm) Width Diameter 0.591" (15.00mm) Height

Uncoated 3C95 Ferrite Core EQ Type 0.984" (25.00mm) Length 0.709" (18.00mm) Width Diameter 0.315" (8.00mm) Height

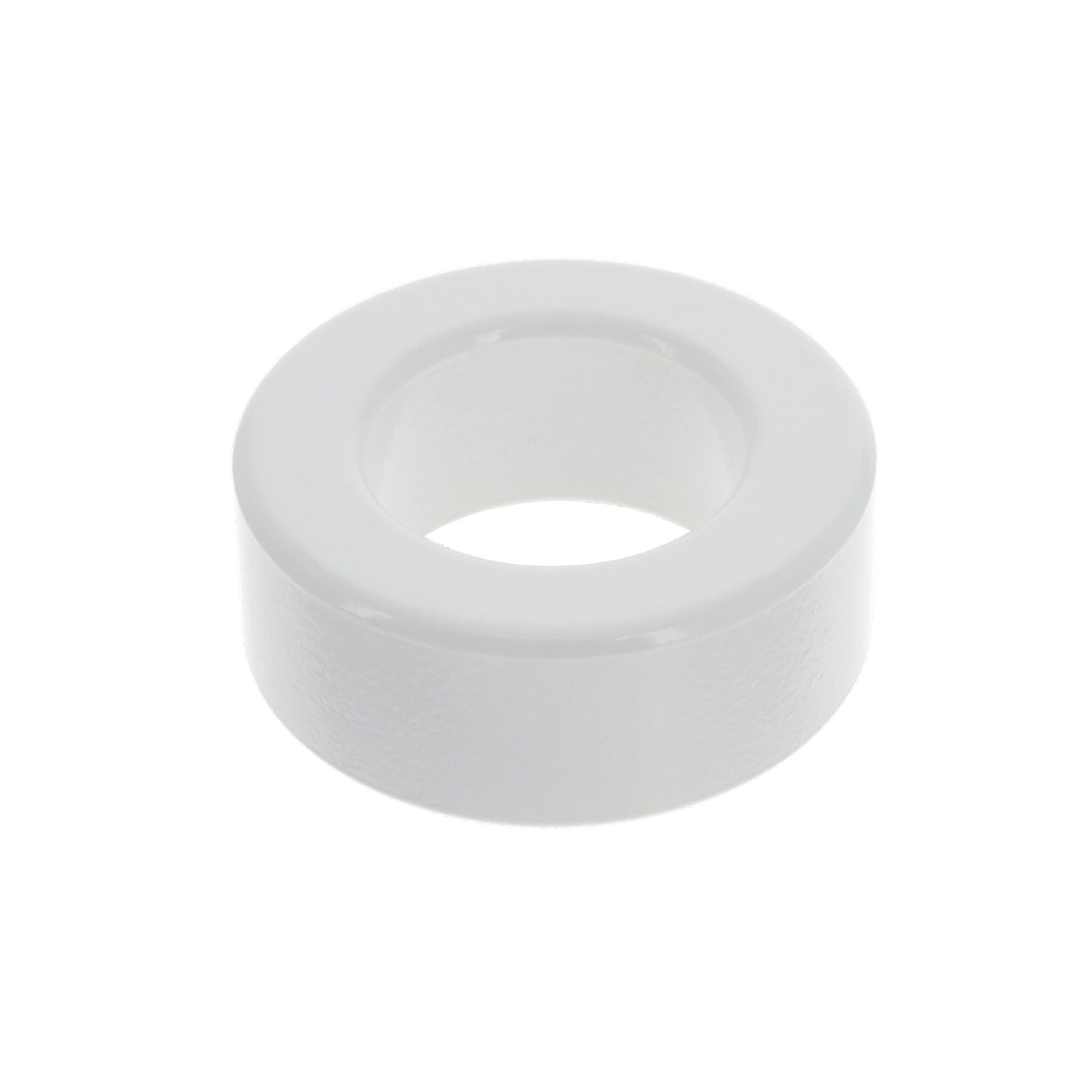

Epoxy 3C94 Ferrite Core Toroid Type - Length - Width 2.018" (51.25mm) Diameter 0.791" (20.10mm) Height
