RESISTORS

POTENTIOMETER LINEAR MOTION 1KOHM; Track Resistance:1kohm; Track Taper:Linear; Resistance Tolerance:± 15%; Temperature Coefficient:± 400ppm/°C; Power Rating:200mW RoHS Compliant: Yes

DIAL COUNTING 10 TURN 6MM; No. of Turns:10Turns; Shaft Diameter:0.25"; Dial Composition:-; Product Range:-; SVHC:No SVHC (07-Jul-2017)

POT JOYSTICK 10KOHM 60° 200MW; No. of Axes:2; Track Resistance:10kohm; Supply Voltage Max:-; No. of Switch Positions:-; Contact Current AC Max:-; Contact Voltage AC Max:-; Rotation Electrical Angle:60°; Handle Style:Knob; Product Range:J Series; SVHC:No SVHC (07-Jul-2017); Lever Travel:± 35°; Power Rating:200mW; Switch Terminals:Quick Connect Solder

POT ROTARY 2.5KOHM 10% 2W; Track Resistance:2.5kohm; No. of Turns:1Turns; Track Taper:Linear; Power Rating:2W; Resistance Tolerance:± 10%; Product Range:RV4 Series; Potentiometer Mounting:Panel; Shaft Diameter:6.325mm; No. of Gangs:1; Adjustment Type:Screwdriver Slot; Shaft Length:22.225mm; SVHC:No SVHC (07-Jul-2017)

POTENTIOMETER ROTARY 50KOHM 10% 2W; Track Resistance:50kohm; No. of Turns:1Turns; Track Taper:Linear; Power Rating:2W; Resistance Tolerance:± 10%; Product Range:RV4 Series; Potentiometer Mounting:Panel; Shaft Diameter:6.325mm; No. of Gangs:1; Adjustment Type:Screwdriver Slot; Shaft Length:22.225mm; SVHC:No SVHC (07-Jul-2017)

POTENTIOMETER ROTARY 1KOHM 10% 2W; Track Resistance:1kohm; No. of Turns:1Turns; Track Taper:Linear; Power Rating:2W; Resistance Tolerance:± 10%; Product Range:RV4 Series; Potentiometer Mounting:Panel; Shaft Diameter:6.325mm; No. of Gangs:1; Adjustment Type:Screwdriver Slot; Shaft Length:50.8mm; SVHC:No SVHC (07-Jul-2017)

POTENTIOMETER ROTARY 10KOHM 10% 2W; Track Resistance:10kohm; No. of Turns:1Turns; Track Taper:Linear; Power Rating:2W; Resistance Tolerance:± 10%; Product Range:RV4 Series; Potentiometer Mounting:Panel; Shaft Diameter:6.325mm; No. of Gangs:1; Adjustment Type:Screwdriver Slot; Shaft Length:50.8mm; SVHC:No SVHC (07-Jul-2017)

LINEAR POTENTIOMETER 1-TURN 5VDC; Track Resistance:10kohm; No. of Turns:1Turns; Track Taper:Linear; Power Rating:-; Resistance Tolerance:-; Product Range:HSM Series; Potentiometer Mounting:Panel; Shaft Diameter:0.236" RoHS Compliant: Yes

High Precision Industrial Foot Controllers RoHS Compliant: Yes

High Precision Linear Motion Potentiometers

Oil Filled Linear and Rotary Potentiometers

Oil Filled Linear and Rotary Potentiometers

HELICAL OHM

RESISTOR ROHS COMPLIANT: YES

POTENTIOMETER

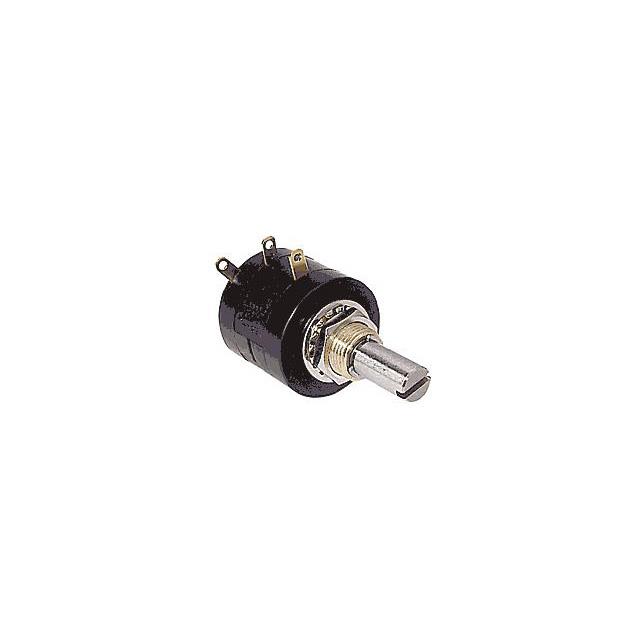

POTENTIOMETER 1K OHM 1W; Track Resistance:1kohm; No. of Turns:5Turns; Track Taper:Linear; Power Rating:1W; Resistance Tolerance:± 5%; Product Range:MW22B Series; Potentiometer Mounting:Bushing; Shaft Diameter:6.35mm; No. of Gangs:1; Adjustment Type:Screwdriver Slot; Shaft Length:2.1mm; SVHC:No SVHC (07-Jul-2017); Operating Temperature Max:105°C; Operating Temperature Min:-55°C; Operating Temperature Range:-55°C to +105°C; Resistor Element Material:Wirewound; Temperature Coefficient:± 80ppm/°C; Termination Type:Solder

WIREWOUND POTENTIOMETER

LINEAR POTENTIOMETER 5KOHM 3W 3%; Track Resistance:5kohm; No. of Turns:3Turns; Track Taper:Linear; Power Rating:3W; Resistance Tolerance:± 3%; Product Range:MW10 Series; Potentiometer Mounting:Panel; Shaft Diameter:3.18mm

LINEAR MOTION POTENTIOMETER, 10KOHM, 20%, 400mW; Track Resistance: 10kohm; Resistance Tolerance: ± 20%; Power Rating: 400mW; Length of Travel: -; Product Range: LCP12 Series; Potentiometer Terminals: Turret 83H7218
