DIGI International
Digi International XBee RR ZigBee Mesh Kit - Worldwide 2.4 GHz, ZB 3.0
Features:
Silicon Labs EFR32MG SoC transceiver chipset
Serial data interface:
UART
SPI
Configuration method:
API or AT commands
Local or Over-The-Air (OTA)
ISM 2.4GHz frequency band
1MB/96kB RAM
Direct Sequence Spread Spectrum (DSSS) interference immunity
4x 10-bit ADC inputs
13x digital I/O
FCC, IC, and ETSI-approved
-40°C to 85°C operating temperature range
2.199cm x 3.4cm x 0.305cm dimensions
Specifications:
Zigbee performance:
Data rate:
250kbps (RF)
Up to 1mbps (serial)
Up to 60m (200ft) indoor/urban range
Up to 1200m (4000ft) outdoor/RF line-of-sight range
6.3mW (+8dBm); +3dBm channel 26 maximum transmit power
-103dBm (normal mode) receiver sensitivity (1%)
BLUETOOTH performance:
Supports BLUETOOTH Low Energy (BLE) 4.2 (slave only) and capable of interoperating with BLE 5.0 devices that support 1M PHY
1mbps maximum data rate
Up to 15m (49ft) indoor/urban range
Up to 300m (984ft) outdoor/RF line-of-sight range
+8dBm transmit power
-95dBm (normal mode) receiver sensitivity (1%)

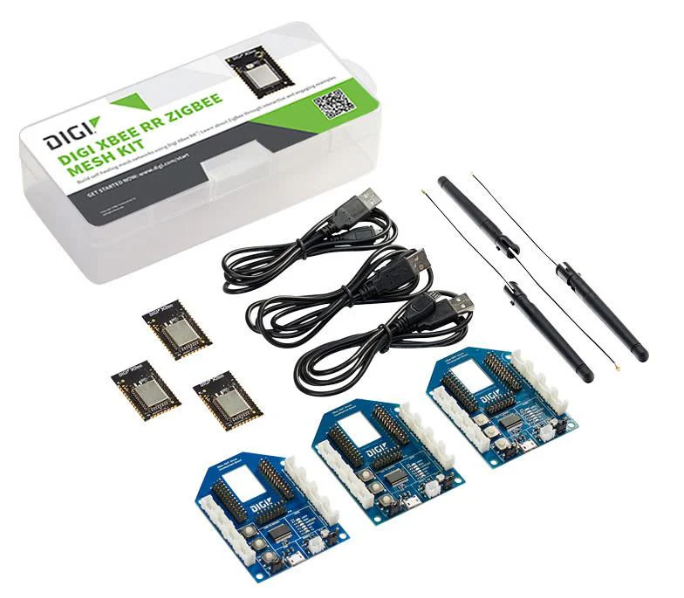

Kit Contents:
3x DIGI XBee 3 grove development boards
3x DIGI XBee RR SMT modules (programmable to Zigbee, 802.15.4, DigiMesh, and BLE (slave only))
3x micro-USB cables
3x antennas
Comprehensive web and video-based instruction
DIGI XBee mobile app
DIGI XBee tools
DIGI XCTU
