Power Supply, Ac-Dc, 15V, 22A Rohs Compliant: Yes |Cosel PCA300F-15

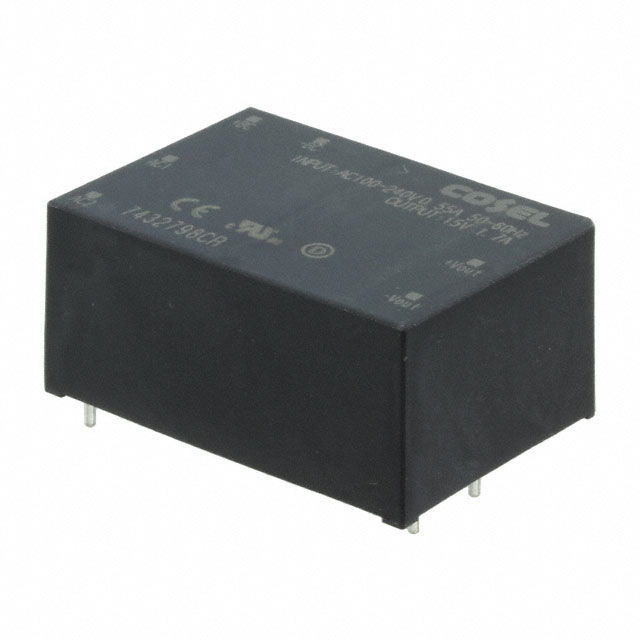

Power Supply, Ac-Dc, 15V, 1.7A Rohs Compliant: Yes |Cosel TUHS25F15

Power Supply, Ac-Dc, 15V, 0.34A Rohs Compliant: Yes |Cosel TUHS5F15

Power Supply, Ac-Dc, 48V, 14.6A Rohs Compliant: Yes |Cosel TUNS700F48-Y1

Mounting Fixings FRNT-RVRS ATTCHMNT R15A SERIES

Cosel MGF 1.5W Isolated DC-DC Converter PCB Mount, Vin 18 → 76 V dc, Vout ±15V dc. Input Voltage Nominal: 48 V dc. Isolation Voltage: 1 kV dc, 1.5 kV dc. Output Current: 50mA. Number of Outputs: 2. Package: SIP 6. Efficiency: 0.79. Minimum Temperature: -40°C. Maximum Temperature: +85°C. Load Regulation: 750mV. Line Regulation: 75mV. Length: 17mm. MPN: MGFW1R54815

Cosel MGF 6W Isolated DC-DC Converter PCB Mount, Vin 18 → 76 V dc, Vout 5V dc, I/O isolation 1 kV dc, 1.5 kV dc. Input Voltage Nominal: 48 V dc. Output Current: 1.2A. Package: SIP 8. Efficiency: 0.84. Minimum Temperature: -40°C. Maximum Temperature: +85°C. Load Regulation: 20mV. Line Regulation: 20mV. Length: 22mm. MPN: MGFS64805

Cosel MGF 10.08W Isolated DC-DC Converter PCB Mount, Vin 18 → 76 V dc, Vout ±12V dc. Input Voltage Nominal: 48 V dc. Isolation Voltage: 1 kV dc, 1.5 kV dc. Output Current: 420mA. Package: SIP 8. Efficiency: 0.87. Minimum Temperature: -40°C. Maximum Temperature: +85°C. Load Regulation: 600mV. Line Regulation: 60mV. MPN: MGFW104812

Cosel MGF 8.58W Isolated DC-DC Converter PCB Mount, Vin 9 → 36 V dc, Vout 3.3V dc. Input Voltage Nominal: 24 V dc. Isolation Voltage: 1 kV dc, 1.5 kV dc. Output Current: 2.6A. Number of Outputs: 1. Package: SIP 8. Efficiency: 0.86. Minimum Temperature: -40°C. Maximum Temperature: +85°C. Load Regulation: 20mV. Line Regulation: 20mV. Protection Features: Over Current Protection. MPN: MGFS10243R3

Cosel MGF 6W Isolated DC-DC Converter PCB Mount, Vin 9 → 36 V dc, Vout ±12V dc. Input Voltage Nominal: 24 V dc. Isolation Voltage: 1 kV dc, 1.5 kV dc. Output Current: 250mA. Package: SIP 8. Efficiency: 0.87. Minimum Temperature: -40°C. Maximum Temperature: +85°C. Load Regulation: 600mV. Line Regulation: 60mV. Application: Industrial. MPN: MGFW62412

Cosel MGF 1.5W Isolated DC-DC Converter PCB Mount, Vin 18 → 76 V dc, Vout 15V dc. Input Voltage Nominal: 48 V dc. Isolation Voltage: 1 kV dc, 1.5 kV dc. Output Current: 100mA. Package: SIP 6. Efficiency: 0.81. Minimum Temperature: -40°C. Maximum Temperature: +85°C. Load Regulation: 60mV. Line Regulation: 60mV. Protection Features: Over Current Protection. MPN: MGFS1R54815

Cosel MGF 6W Isolated DC-DC Converter PCB Mount, Vin 9 → 36 V dc, Vout 12V dc, I/O isolation 1 kV dc, 1.5 kV dc. Input Voltage Nominal: 24 V dc. Output Current: 500mA. Package: SIP 8. Efficiency: 0.88. Minimum Temperature: -40°C. Maximum Temperature: +85°C. Load Regulation: 48mV. Line Regulation: 48mV. Length: 22mm. MPN: MGFS62412

Cosel MGS 1.5W Isolated DC-DC Converter PCB Mount, Vin 36 → 76 V dc, Vout 5V dc. Input Voltage Nominal: 48 V dc. Isolation Voltage: 1 kV dc, 1.5 kV dc. Output Current: 300mA. Package: SIP 6. Efficiency: 0.8. Minimum Temperature: -40°C. Maximum Temperature: +85°C. Load Regulation: 20. Line Regulation: 20mV. Depth: 12mm. MPN: MGS1R54805

Cosel MGF 6W Isolated DC-DC Converter PCB Mount, Vin 18 → 76 V dc, Vout ±15V dc. Input Voltage Nominal: 48 V dc. Isolation Voltage: 1 kV dc, 1.5 kV dc. Output Current: 200mA. Number of Outputs: 2. Package: SIP 8. Efficiency: 0.88. Minimum Temperature: -40°C. Maximum Temperature: +85°C. Load Regulation: 750mV. Line Regulation: 75mV. Length: 22mm. MPN: MGFW64815

Cosel MGF 6W Isolated DC-DC Converter PCB Mount, Vin 9 → 36 V dc, Vout ±15V dc. Input Voltage Nominal: 24 V dc. Isolation Voltage: 1 kV dc, 1.5 kV dc. Output Current: 200mA. Number of Outputs: 2. Package: SIP 8. Efficiency: 0.88. Minimum Temperature: -40°C. Maximum Temperature: +85°C. Load Regulation: 750mV. Line Regulation: 75mV. MTBF: 732000h. MPN: MGFW62415

Cosel MGF 2.64W Isolated DC-DC Converter PCB Mount, Vin 9 → 36 V dc, Vout 3.3V dc. Input Voltage Nominal: 24 V dc. Isolation Voltage: 1 kV dc, 1.5 kV dc. Output Current: 800mA. Number of Outputs: 1. Package: SIP 6. Efficiency: 0.78. Minimum Temperature: -40°C. Maximum Temperature: +85°C. Load Regulation: 20mV. Line Regulation: 20mV. MPN: MGFS3243R3

Cosel MGF 3W Isolated DC-DC Converter PCB Mount, Vin 18 → 76 V dc, Vout 5V dc, I/O isolation 1 kV dc, 1.5 kV dc. Input Voltage Nominal: 48 V dc. Output Current: 600mA. Package: SIP 6. Efficiency: 0.8. Minimum Temperature: -40°C. Maximum Temperature: +85°C. Load Regulation: 20mV. Line Regulation: 20mV. Length: 17mm. MPN: MGFS34805

Cosel CHS 504W Isolated DC-DC Converter PCB Mount, Vin 36 → 76 V dc, Vout 12V dc. Input Voltage Nominal: 48 V dc. Isolation Voltage: 500 V dc, 1000 V ac, 2250 V dc. Output Current: 42A. Package: DIP. Efficiency: 0.95. Minimum Temperature: -40°C. Maximum Temperature: +85°C. Load Regulation: ±12mV. Line Regulation: ±12mV. Length: 58.9mm. MPN: CHS5004812-B

DC Power Cords MATING HARNESS REMOTE ON/OFF

AC DC Converters Output Input
