RF DIODE SCHOTTKY 4V SOT23-3

DIODE, RF, PIN; Resistance @ If:1.5ohm; Diode Case Style:DO-15; No. of Pins:2 Pin; Forward Current If(AV):100mA; Product Range:5082 Series; MSL:-; SVHC:No SVHC (12-Jan-2017); Alternate Case Style:DO-204AC; Breakdown Voltage:200V; Capacitance Cd Max @ Vr F:0.3pF; Capacitance Ct:0.3pF; Device Marking:3077; Diode Series Resistance Rs:1.5ohm; Diode Type:RF; No. of Pins:2Pins; Peak Forward Current:100mA; Repetitive Reverse Voltage Vrrm Max:200V; Reverse Recovery Time trr Max:100ns; Termination Type:Axial Leaded; Vr Cd Measurement Voltage Max:50V

DIODE, RF, PIN; Diode Case Style:DO-15; No. of Pins:2 Pin; Product Range:5082 Series; MSL:-; SVHC:No SVHC (12-Jan-2017); Alternate Case Style:DO-204AC; Breakdown Voltage:100V; Capacitance Ct:0.4pF; Device Marking:3080; Diode Series Resistance Rs:2.5ohm; Diode Type:RF; High Resistance Limit Min:1000ohm; Low Resistance Limit Max:8ohm; No. of Pins:2Pins; Termination Type:Axial Leaded; Vr Cd Measurement Voltage Typ:50V

Logic Output Optoisolator 40Mbps Tri-State 1500VDC 1 Channel 500V/µs CMTI 8-DIP

RF Amplifier IC

Isolation Amplifier 1 Circuit Differential 8-DIP

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 2.1V 20mA 0.750" H x 0.500" W x 0.250" D (19.05mm x 12.70mm x 6.35mm) 14-DIP (0.300", 7.62mm), 10 Leads

RF Duplexer 1.71GHz ~ 1.79GHz / 1.8GHz ~ 1.88GHz 8-VQFN Exposed Pad, CSP

RF Diode PIN - 2 Independent 50V 1A MiniPak 1412

RF Attenuators 2.5dB ~ 28dB 0Hz ~ 40GHz 50 Ohms 8-SMD, No Lead

Optoisolator Current Loop Receiver 3750Vrms 1 Channel 8-DIP Gull Wing

LED, SMD, PLCC4, RGB; LED Colour:Red, Green, Blue; LED Mounting:SMD; Bulb Size:-; Viewing Angle:120°; Lens Shape:Round; Forward Current / Colour:R 30mA, G 30mA, B 20mA; Luminous Intensity / Colour:R 80mcd, G 160mcd, B 10mcd; Forward Voltage / Colour:R 1.9V, G 3.4V, B 3.9V; Wavelength / Colour:-; MSL:-; SVHC:No SVHC (12-Jan-2017); Operating Temperature Max:100°C; Operating Temperature Min:-55°C; Operating Temperature Range:-55°C to +100°C

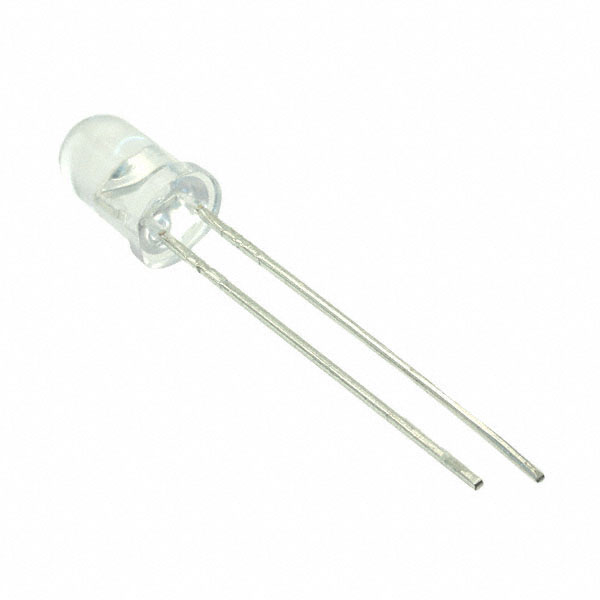

LED, 5MM, 55DEG, RED; LED Colour:Red; LED Mounting:Through Hole; LED Case Size:T-1 3/4 (5mm); Forward Current If:20mA; Forward Voltage:2V; Wavelength Typ:630nm; Luminous Intensity:1.15cd; Viewing Angle:55°; Lens Shape:Round; Product Range:-; Automotive Qualification Standard:-; MSL:-; SVHC:No SVHC (15-Jan-2018); Bulb Size:T-1 3/4 (5mm); Current If Luminous Intensity:20mA; Dominant Wavelength:630nm; External Diameter:5mm; External Length / Height:8.71mm; Forward Current If Max:20mA; Forward Voltage VF Max:2V; LED / Lamp Size:5mm / T-1 3/4; LED Type:Standard; Lead Cross-section Width:0.5mm; Lead Length:23mm; Lead Spacing:2.54mm; Lens Diameter:5mm; Luminous Intensity Max:1150mcd; Luminous Intensity Min:400mcd; Luminous Intensity Typ:345mcd; No. of Pins:2Pins; Operating Temperature Max:100°C; Operating Temperature Min:-40°C; Operating Temperature Range:-40°C to +100°C; PIV Max:5V; Peak Forward Current:50mA; Peak Wavelength:639nm; Voltage Vf Typ:2V

LED, 3W, NEUTRAL WHITE 3800K, 180LM; LED Colour:Neutral White; LED Mounting:SMD; Bulb Size:-; Forward Current If:-; Forward Voltage:-; Luminous Intensity:-; Viewing Angle:140°; Lens Shape:-; Product Range:-; MSL:-; SVHC:No SVHC (12-Jan-2017); CCT:3800K; Forward Current @ Test:350mA; Forward Current If Max:700mA; Forward Voltage @ Test:3.2V; Luminous Flux @ Test:105lm; No. of Pins:6Pins; Operating Temperature Max:135°C; Operating Temperature Min:-40°C; Operating Temperature Range:-40°C to +135°C; Power @ Test:1.1W; Power Dissipation Pd:3W

AMP, LOW NOISE, HI GAIN, 6UDFN; Frequency Min:900MHz; Frequency Max:3.5GHz; Gain:19.6dB; Noise Figure Typ:1dB; RF IC Case Style:uDFN; No. of Pins:6Pins; Supply Voltage Min:-; Supply Voltage Max:3.3V; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; MSL:-; SVHC:No SVHC (12-Jan-2017); Frequency Range:900MHz to 3.5GHz; Operating Temperature Range:-40°C to +85°C; Power Dissipation Pd:60mW; RF Type:GPS, ISM, WiMAX; Supply Current:6mA

AMP, POWER, UMTS, BAND 5, 4X4 SMD; Frequency Min:824MHz; Frequency Max:849MHz; Gain:27dB; Noise Figure Typ:-; RF IC Case Style:SMD; No. of Pins:10Pins; Supply Voltage Min:3.2V; Supply Voltage Max:4.2V; Operating Temperature Min:-20°C; Operating Temperature Max:85°C; MSL:MSL 3 - 168 hours; SVHC:No SVHC (12-Jan-2017); Frequency Range:824MHz to 849MHz; Operating Temperature Range:-20°C to +85°C; RF Type:UMTS; Supply Current:485mA; Supply Voltage Range:3.2V to 4.2V

AMP, POWER, UMTS, BAND 1, 4X4 SMD; Gain:27dB; Noise Figure Typ:-; RF IC Case Style:SMD; No. of Pins:10Pins; Supply Voltage Min:3.2V; Supply Voltage Max:4.2V; Operating Temperature Min:-20°C; Operating Temperature Max:85°C; MSL:MSL 3 - 168 hours; SVHC:No SVHC (12-Jan-2017); Operating Temperature Range:-20°C to +85°C; RF Type:UMTS; Supply Current:480mA; Supply Voltage Range:3.2V to 4.2V

AMP, POWER, CDMA/AMPS, 4X4 SMD; Frequency Min:824MHz; Frequency Max:849MHz; Gain:28dB; Noise Figure Typ:4.5dB; RF IC Case Style:SMD; No. of Pins:10Pins; Supply Voltage Min:3.2V; Supply Voltage Max:4.2V; Operating Temperature Min:-30°C; Operating Temperature Max:85°C; MSL:MSL 3 - 168 hours; SVHC:No SVHC (12-Jan-2017); Frequency Range:824MHz to 849MHz; Operating Temperature Range:-30°C to +85°C; Power Dissipation Pd:2.5W; RF Type:CDMA; Supply Current:520mA; Supply Voltage Range:3.2V to 4.2V

IC, MMIC AMPLIFIER, SOIC4, 886; No. of Pins:4Pins; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; MSL:-; SVHC:No SVHC (12-Jan-2017); Bandwidth:5.5GHz; Base Number:0886; Device Marking:MSA-0886; IC Generic Number:0886; Logic Function Number:0886; Operating Temperature Range:-40°C to +85°C; Termination Type:Surface Mount Device

LED, SMD ALGAAS RED; LED Colour:Red; LED Mounting:SMD; LED Case Size:1.25mm x 1.4mm; Forward Current If:20mA; Forward Voltage:1.8V; Wavelength Typ:639nm; Luminous Intensity:16mcd; Viewing Angle:155°; Lens Shape:Rectangular; Product Range:-; Automotive Qualification Standard:-; MSL:-; SVHC:No SVHC (15-Jan-2018); Bulb Size:1.25mm x 1.4mm; Current If Luminous Intensity:20mA; External Depth:1.1mm; External Length / Height:2mm; External Width:1.25mm; Forward Current If Max:20mA; Luminous Intensity Typ:16mcd; Mounting Orientation:Vertical; Opto Mounting Orientation:Vertical; PIV Max:5V; Peak Forward Current:20mA; Peak Wavelength:650nm; Tape Width:8mm
