Description

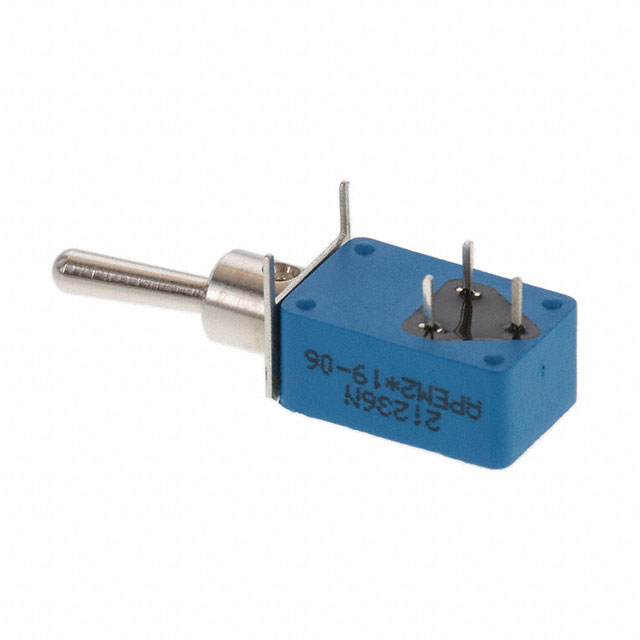

SWITCH PCB SPDT; Contact Configuration:SPDT; Illumination:Non Illuminated; Switch Operation:On-On; Product Range:21000N Series; Switch Mounting:Through Hole; Contact Current Max:4A; Contact Voltage AC Nom:250V; Switch Terminals:Solder; Contact Voltage DC Nom:30V; SVHC:No SVHC (12-Jan-2017); Actuation Type:Lever; Bush Thread Length:7mm; Contact Current @ Contact Voltage AC Max:2A; Contact Current @ Contact Voltage DC Max:4A; Contact Current AC Max:4A; Contact Current DC Max:4A; Contact Current Rating:2A; Contact Resistance:20mohm; Contact Voltage AC Max:250V; Contact Voltage DC Max:30V; External Depth:17mm; External Length / Height:8mm; External Width:11mm; Height:8mm; Lever Length:11mm; Operating Temperature Max:85°C; Operating Temperature Min:-40°C; Panel Cutout Diameter:6.4mm; Pin Length:5mm; Thread Size:1/4 - 40UNS
