Altech 60A 2 Pole Thermal Magnetic Circuit Breaker, 480Y/277V R. Reset Actuator Type: Handle. Overall Dimensions: 96.1 x 35 x 83.5mm. Overall Depth: 83.5mm. Tripping Mechanism: Thermal-Magnetic. Tripping Characteristics: Type C. Breaking Capacity at Maximum Voltage Rating: 10 kA. Overall Length: 96.1mm. Application: Appliance Circuit, Appliances, Business Equipment, Control Circuit Application, Lighting, Power Supplies, Sensitive Electronics, UL1077 Application, Wiring Protection. Mounting Style: DIN Rail Mount. Special Features: IP20 Termination Protection, Positive Trip Indicator, Supplementary Protector. MPN: 2CU60R

Altech 6A 1P Pole Thermal Magnetic Circuit Breaker, 42 V dc, 277 V ac V-EA. Rated AC Voltage: 277V. Rated DC Voltage: 42V. Circuit Breaker Type: MCB. Reset Actuator Type: Toggle Switch. Overall Dimensions: 17.5 x 89.3 x 74.4mm. Overall Depth: 74.4mm. Tripping Mechanism: Thermal-Magnetic. Tripping Characteristics: Type C. Breaking Capacity at Maximum Voltage Rating: 10 kA. Overall Length: 17.5mm. Application: Appliances, Business Equipment, Control Circuit, Lighting, Low Inrush Motors, Wiring Protection. Special Features: Medium Magnetic Trip Point, Relatively Long Thermal Trip Delay. MPN: 1C6UM

Altech 300mA 1P Pole Thermal Magnetic Circuit Breaker, 277V ac UL. Reset Actuator Type: Toggle Switch. Overall Dimensions: 17.5 x 105.3 x 74.4mm. Overall Depth: 74.4mm. Tripping Mechanism: Thermal-Magnetic. Tripping Characteristics: Type D. Breaking Capacity at Maximum Voltage Rating: 10 kA. Overall Length: 17.5mm. Application: Heaters, High Inrush Motors, Power Supplies, Reactive Loads, Transformers. Mounting Style: DIN Rail Mount. Circuit Breaker Type: MCB. Special Features: Relatively Long Thermal Trip Delay, Very High Magnetic Trip Point. MPN: 1D03UL

UL Series 2 Pole 3 A D-Trip Thermal Magnetic Miniature Circuit Breaker

Altech 20A 2 Pole Thermal Magnetic Circuit Breaker, 80 V dc, 480Y/277 V V-EA. Overall Depth: 74.7mm. Tripping Mechanism: Thermal-Magnetic. Tripping Characteristics: Type E. Rated DC Voltage: 80V. Breaking Capacity at Maximum Voltage Rating: 10 kA. Overall Length: 93.3mm. Application: AC Discharge Lamps (Ballast), AC General Use, AC Incandescent Lamps (Tungsten), AC Motor Starting, AC Resistance, Across the Line, High Efficiency Motors, UL508 Application, Which have Exceedingly High Inrush Current. Mounting Style: DIN Rail Mount. Terminal Contact Type: Box Clamp, Ring Tongue Terminal. Break Time: Time Delay. Special Features: IP20 Terminal Protection. Overall Dimensions: 93.3 x 35 x 74.7mm. MPN: 2E20UM

Altech 4A 2 Pole Thermal Magnetic Circuit Breaker V-EA. Rated AC Voltage: 480Y/277V. Rated DC Voltage: 80V. Circuit Breaker Type: MCCB. Reset Actuator Type: Handle. Overall Dimensions: 93.3 x 35 x 74.7mm. Overall Depth: 74.7mm. Tripping Mechanism: Thermal-Magnetic. Tripping Characteristics: Type E. Breaking Capacity at Maximum Voltage Rating: 10 kA. Overall Length: 93.3mm. Application: AC Discharge Lamps (Ballast), AC General Use, AC Incandescent Lamps (Tungsten), AC Motor Starting, AC Resistance, Across the Line, High Efficiency Motors, UL508 Application, Which have Exceedingly High Inrush Current. Special Features: IP20 Terminal Protection. MPN: 2E4UM

Altech 32A Rail Mount Fuse Holder With Indicator, 690V ac. Includes Indicator: Yes. Rail Type: Top Hat. Case Material: Plastic. Series: PCF. Compatible Fuse Sizes: Midget. Compatible Fuse Diameter: 10mm. Standards Met: IEC 60947-1, IEC 60947-3, UL Recognized. Terminal Type: Screw. Compatible Fuse Length: 38mm. MPN: 002550013

Altech 8A 1 Pole Thermal Magnetic Circuit Breaker R. Circuit Breaker Type: MCCB. Reset Actuator Type: Handle. Overall Dimensions: 96.1 x 17.5 x 83.5mm. Overall Depth: 83.5mm. Tripping Mechanism: Thermal-Magnetic. Tripping Characteristics: Type D. Breaking Capacity at Maximum Voltage Rating: 10 kA. Overall Length: 96.1mm. Application: Appliance Circuit, Control Transformers, Power Supplies, Power Supplies and Reactive Loads, Sensitive Electronics, UL1077 Application. Special Features: IP20 Termination Protection, Positive Trip Indicator, Supplementary Protector. Mounting Style: DIN Rail Mount. Terminal Contact Type: Screw. MPN: 1DU8R

Altech 32A 1 Pole Thermal Magnetic Circuit Breaker, 24V dc V-EA. Circuit Breaker Type: MCCB. Breaking Capacity at Maximum Voltage Rating: 10 kA. Overall Length: 93.3mm. Mounting Style: DIN Rail Mount. Reset Actuator Type: Toggle Switch. Overall Dimensions: 93.3 x 17.5 x 74.7mm. Overall Depth: 74.7mm. Tripping Mechanism: Thermal-Magnetic. Special Features: IP20 Terminal Protection. Tripping Characteristics: Type G. MPN: 1G32UM

Altech 4A 1 Pole Thermal Magnetic Circuit Breaker, 42V dc V-EA. Reset Actuator Type: Toggle Switch. Mounting Style: DIN Rail Mount. Overall Dimensions: 93.3 x 17.5 x 74.7mm. Overall Depth: 74.7mm. Tripping Mechanism: Thermal-Magnetic. Tripping Characteristics: Type G. Breaking Capacity at Maximum Voltage Rating: 10 kA. Overall Length: 93.3mm. Circuit Breaker Type: MCCB. Special Features: IP20 Terminal Protection. MPN: 1G4UM

Altech 1A 1 Pole Thermal Magnetic Circuit Breaker, 42V dc V-EA. Reset Actuator Type: Toggle Switch. Overall Dimensions: 93.3 x 17.5 x 74.7mm. Overall Depth: 74.7mm. Tripping Mechanism: Thermal-Magnetic. Tripping Characteristics: Type Z. Breaking Capacity at Maximum Voltage Rating: 10 kA. Overall Length: 93.3mm. Terminal Contact Type: Box Clamp, Ring Tongue Terminal. Application: AC Discharge Lamps (Ballast), AC General Use, AC Incandescent Lamps (Tungsten), AC Motor Starting, AC Resistance, Across the Line, Components which Fail-Short, Components/Devices with Low Surge Current and Short Circuit Withstand Capabilities, Semiconductors, UL508 Application. Circuit Breaker Type: MCCB. MPN: 1Z1UM

Altech 500mA 1P Pole Thermal Magnetic Circuit Breaker, 48 V dc, 277 V ac R. Rated AC Voltage: 277V. Rated DC Voltage: 48V. Circuit Breaker Type: MCB. Reset Actuator Type: Toggle Switch. Overall Dimensions: 17.5 x 96.1 x 83.5mm. Overall Depth: 83.5mm. Tripping Mechanism: Thermal-Magnetic. Tripping Characteristics: Type B. Breaking Capacity at Maximum Voltage Rating: 10 kA. Overall Length: 17.5mm. Application: Appliances, Business Equipment, Control Circuit, Lighting, Power Supplies, Sensitive Electronics, Wiring Protection. Special Features: Positive Trip Indicator, Relatively Long Thermal Trip Delay But Low Magnetic Trip Point. MPN: 1BU05R

Altech 3A 1P Pole Thermal Magnetic Circuit Breaker, 48 V dc, 277 V ac R. Rated AC Voltage: 277V. Rated DC Voltage: 48V. Circuit Breaker Type: MCB. Reset Actuator Type: Toggle Switch. Overall Dimensions: 17.5 x 96.1 x 83.5mm. Overall Depth: 83.5mm. Tripping Mechanism: Thermal-Magnetic. Tripping Characteristics: Type B. Breaking Capacity at Maximum Voltage Rating: 10 kA. Overall Length: 17.5mm. Application: Appliances, Business Equipment, Control Circuit, Lighting, Power Supplies, Sensitive Electronics, Wiring Protection. Special Features: Positive Trip Indicator, Relatively Long Thermal Trip Delay But Low Magnetic Trip Point. MPN: 1BU3R

Altech 1A 1P Pole Thermal Magnetic Circuit Breaker, 277V ac UL. Mounting Style: DIN Rail Mount. Terminal Contact Type: Screw. Break Time: Time Delayed. Special Features: Medium Magnetic Trip Point, Relatively Short Thermal Trip Delay. Overall Length: 17.5mm. Application: Control Circuit, Lighting, Low Inrush Motors, Receptacles, Resistive Loads, Wiring Protection. Reset Actuator Type: Toggle Switch. Overall Dimensions: 17.5 x 105.3 x 74.4mm. Overall Depth: 74.4mm. MPN: 1C1UL

KO4700 DIN Rail Enclosure, Glass Filled Polycarbonate, 200 x 121 x 90mm Solid. Length: 200mm. Width: 121mm. Maximum Terminals: 66. Colour: Black. Maximum Operating Temperature: +125°C. Special Features: Industrial Application, Standard Enclosures are Equipped with the Maximum Number of Terminal Strips. Enclosure Rating: IP20. Terminal Type: Box Clamp. Standards Met: UL 94V-0. MPN: 90.680, Altech

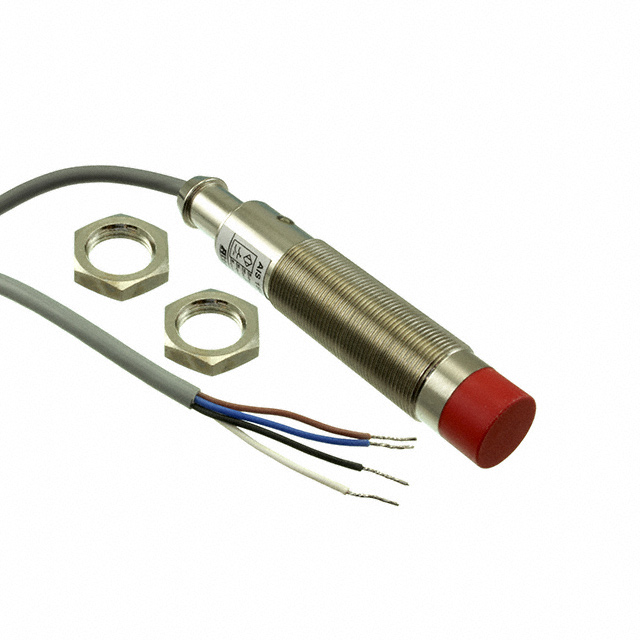

Altech, M18 x 1, NPN-NO Inductive Sensor 100mm Length, 10 → 30 V dc supply voltage , IP67 Rating. Body Style: Barrel. Detection Range: 8 mm. Terminal Type: Cable. Maximum DC Voltage: 30V. Mounting Type: Flush Mount. Switching Current: 200 mA. Housing Material: Brass. Short Circuit Overload Protection: Yes. Maximum Operating Temperature: +70°C. Standards Met: IEC 529, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6. MPN: AIS18F08AN024-2M

PSW-240 Switch Mode DIN Rail Power Supply, 240W, 48V dc/ 5A. Minimum Input Voltage: 180V ac. Input Voltage: 230V ac. Maximum Input Voltage: 550V ac. Number of Outputs: 1. Electrical Phase: 1. Height: 125.2mm. Width: 63mm. Special Features: 100% Full Load Burn-In Test, Built-In DC OK Relay Contact, Cooling by Free Air Convection. MPN: PSW-24048, Altech

KO4700 DIN Rail Enclosure, Glass Filled Polycarbonate, 45 x 121 x 73mm Solid. Length: 45mm. Width: 121mm. Maximum Terminals: 10. Colour: Black. Maximum Operating Temperature: +125°C. Standards Met: UL 94V-0. Enclosure Rating: IP20. Special Features: Industrial Application, Standard Enclosures are Equipped with the Maximum Number of Terminal Strips. Terminal Type: Pressure Plate, Screw. MPN: 90.230, Altech

KO4300 DIN Rail Enclosure, Glass Filled Polycarbonate, 45 x 121 x 90mm Vented. Length: 45mm. Width: 121mm. Maximum Terminals: 32. Colour: Light Grey. Maximum Operating Temperature: +115°C. Standards Met: UL 94V-0. Enclosure Rating: IP20. Special Features: High Density, They are Widths Available Each Having a Short and Tall Version. Terminal Type: Rising Clamp, Screw. MPN: 90.930, Altech

KU4000 DIN Rail Enclosure, Glass Filled Polycarbonate, 140 x 62 x 99mm Solid. Length: 140mm. Width: 62mm. Maximum Terminals: 64. Colour: Light Grey. Maximum Operating Temperature: +125°C. Terminal Type: Pressure Plate, Screw. Special Features: Compact, Pressure Plate or Spring Cage Terminals are Standard, Versatile. Enclosure Rating: IP20. Standards Met: UL 94V-0. MPN: 91.400, Altech
